Automatic climate control system

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

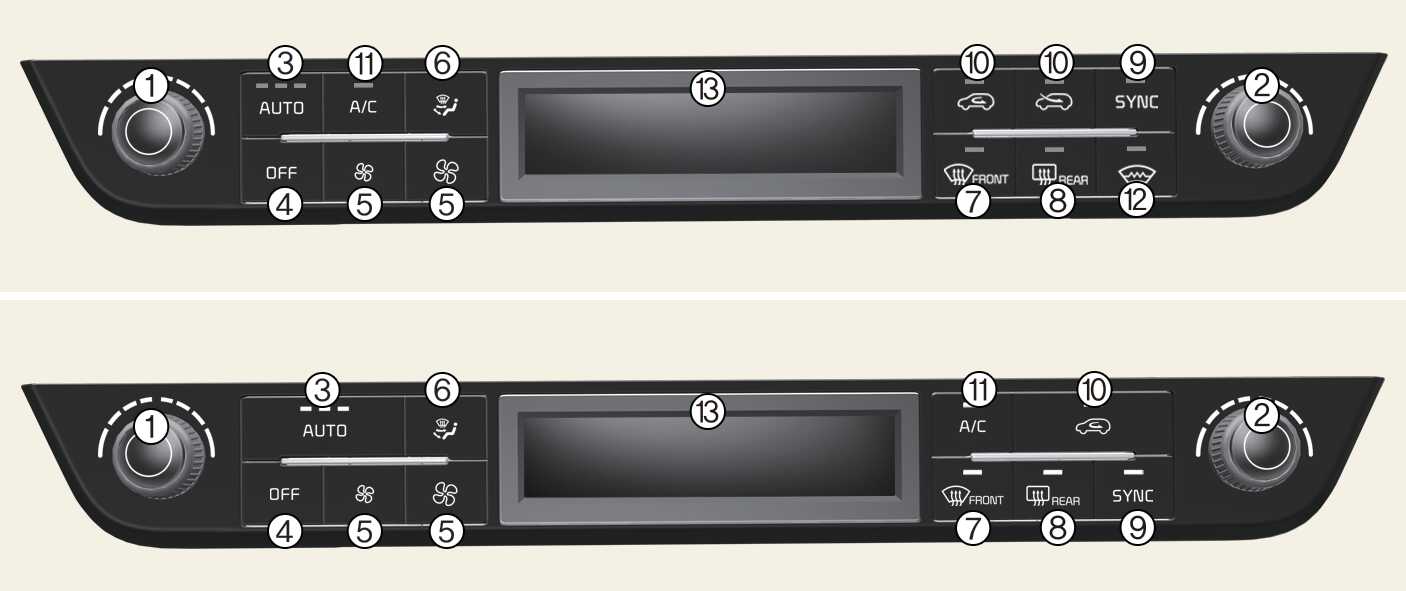

Figure 1. Type A (button)
ONQ5031361N_2
Figure 2. Type B (control panel)
ONQ5031381N_2

  1. Driver's temperature control knob

  2. Passenger's temperature control knob

  3. AUTO (automatic control) button

  4. OFF button

  5. Fan speed control button

  6. Mode selection button

  7. Front windshield defroster button

  8. Rear window defroster button

  9. SYNC button

  10. Air intake control button

  11. Air conditioning (A/C) button

  12. Front glass heater (if equipped)

  13. Infotainment/climate control mode switching button

NOTE

Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
