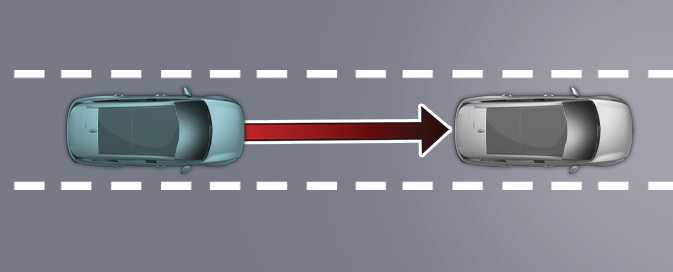

Highway Driving Assist (HDA): (if equipped)

ONQ5041062

Highway Driving Assist is designed to help detect vehicles and lanes ahead, and help maintain distance from the vehicle ahead, maintain the set speed, and keep the vehicle between lanes while driving on the highway (or motorway).

NOTE

  • Highway Driving Assist is available only on controlled access road of certain highways. (except for the interchange/junction)

    Controlled access road indicates roads with limited entrances and exits that allow uninterrupted high speed traffic flow. Only passenger cars and motorcycles are allowed on controlled access roads.

    Available highway (Controlled access road)

    USA

    Select Interstate Highway and U.S. (Federal) and State Highways

    Canada

    Select Provincial and Territorial Highways

  • Additional highways may be expanded by future navigation updates.

Detecting sensor

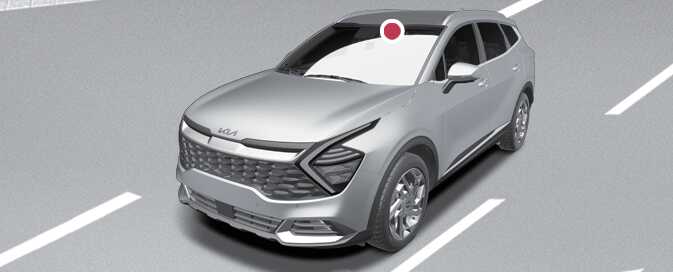

Figure 1. Front view camera
ONQ5051040L

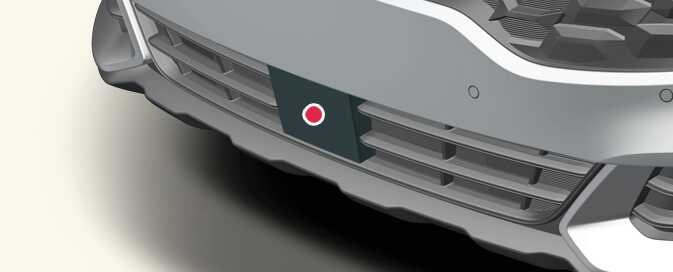

Figure 2. Front radar
ONQ50410261

Refer to the picture above for the detailed location of the detecting sensors.

CAUTION

For more details on the precautions of the detecting sensors, refer to Forward Collision-Avoidance Assist (FCA) (Sensor Fusion).
