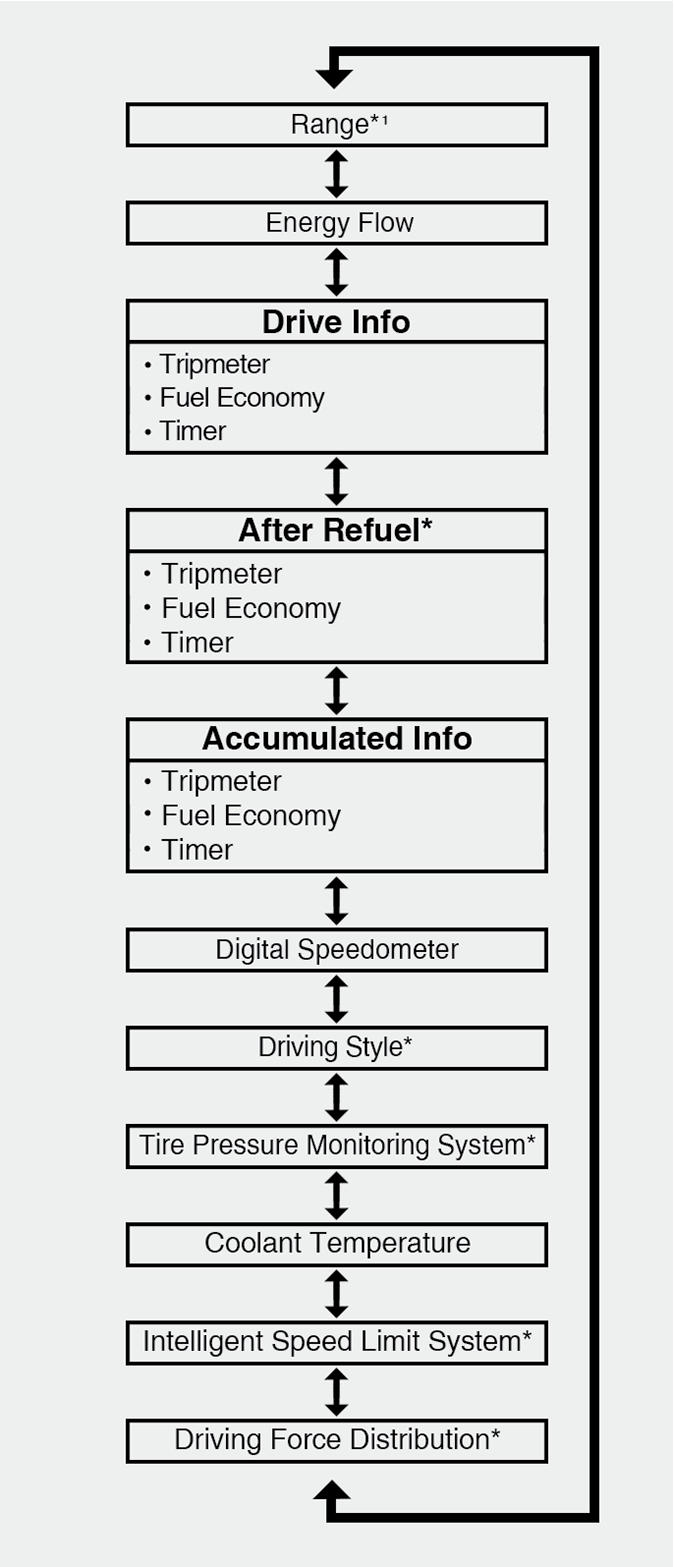

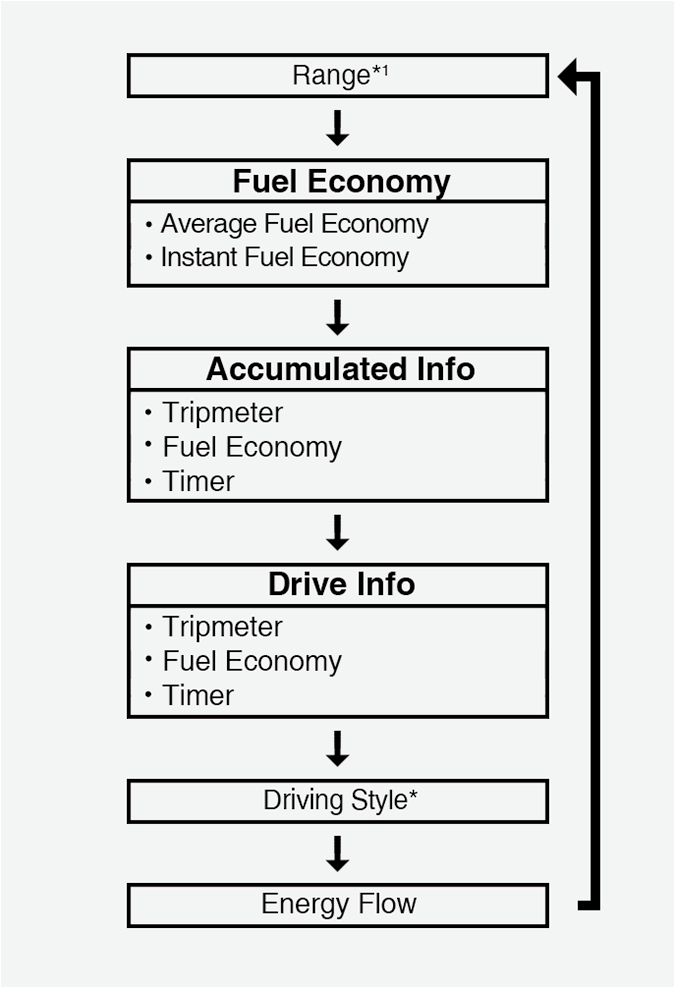

Trip modes

Type A

Type B

*: if equipped

*1: For Plug-in Hybrid Vehicle

To change the trip mode, scroll the toggle the switch (/) on the steering wheel.

Fuel economy

This information is always displayed at the bottom center of the Full LCD cluster.

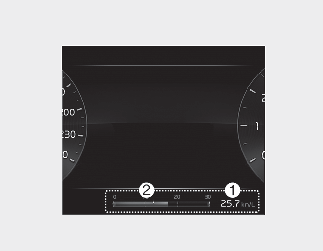

Average Fuel Economy (1)

• The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

  • Fuel economy range: 0 ~ 99.9 km/L, L/100 km or mpg

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 50 meters (0.03 miles) since the ignition switch or ENGINE START/STOP button is turned to ON.

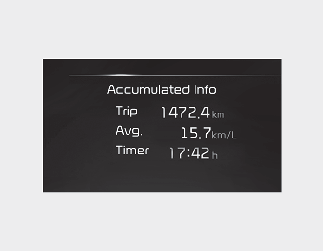

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

• Accumulated information is calculated after the vehicle has run for more than 300 meters.

• If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

• If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Drive info display

This display shows the trip distance, the average fuel efficiency, and the total driving time information once per one ignition cycle.

• Fuel efficiency is calculated after the vehicle has run for more than 300 meters.

• (for hybrid vehicle) The vehicle will automatically set to default once 4 hours pass after the Ignition is in OFF.

  (for plug-in hybrid vehicle) The information will automatically reset when the driver's door is opened after the ignition is turned off, or approximately 3 minutes have passed after the ignition is turned off.

• If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

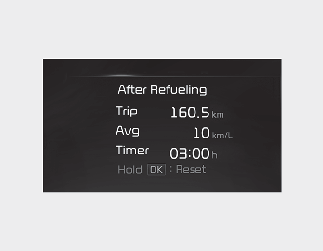

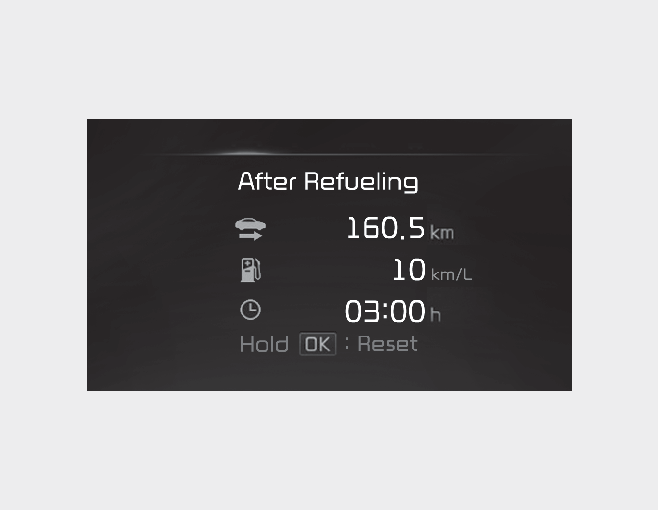

Information since refueling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

Type A

Type B

• Information since refueling is calculated after the vehicle has run for more than 0.19 miles (300 m).

• If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.

• If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

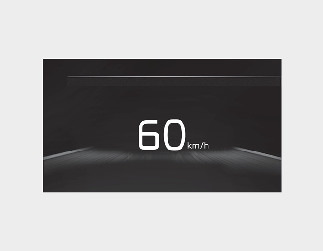

Digital speedometer

This digital speedometer display shows the speed of the vehicle.

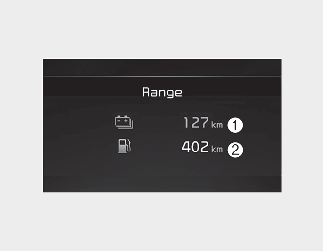

Range (Plug-in hybrid vehicle)

The range is the estimated distance the vehicle can be driven with the remaining high-voltage (hybrid) battery (1, Electric) and fuel in the fuel tank (2, Gasoline).

• If the estimated distance is below 1 km (1 mi.), the trip computer will display “---” as distance to empty.

  • Distance range: 1 ~ 510 km or 1 ~ 510 mi.

NOTICE

• If the vehicle is not on level ground or the battery power has been interrupted, the range function may not operate correctly.

• The range may differ from the actual driving distance as it is an estimate of the available driving distance.

• The trip computer may not register additional fuel if less than 6 liters (1.6 gallons) of fuel are added to the vehicle.

• The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.

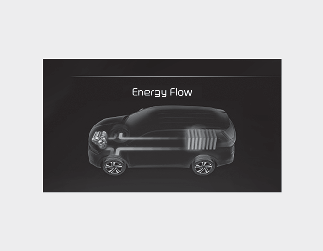

Energy flow

The hybrid system informs the driver about its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

* For more details, refer to More Details.
