Rear View Monitor settings

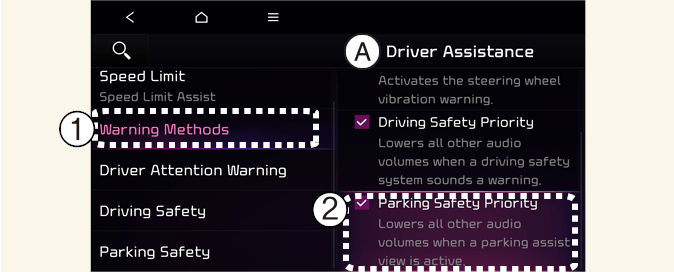

Warning methods
A: Driver assistance
-
Warning methods
-
Parking safety priority
Warning methods can be set when the vehicle is in ON position.
-
Parking safety priority: Select Settings → Vehicle → Driver assistance → Warning methods → Parking safety priority on the infotainment system. For safe parking, the audio volume will temporarily decrease while Rear View Monitor is operating.
-
Ensure that Warning methods you have set may apply to the Warning methods of other driver assistance systems.
-
Warning methods will maintain its last setting even if the vehicle is restarted.
-
The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

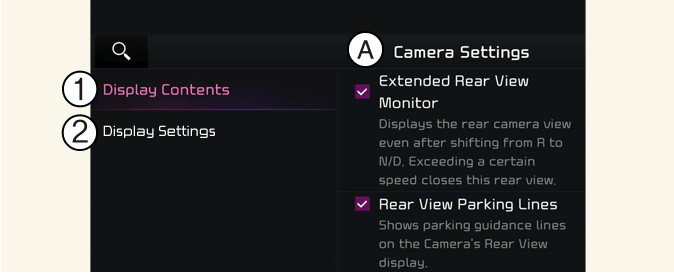

Camera settings
A: Camera Settings
-
Display Contents
-
Display Settings
You can change Rear View Monitor 'Display Contents' by touching the setup icon (
) on the screen while Rear View Monitor is operating, or touching Settings → Vehicle → Driver assistance → Parking safety → Camera settings on the infotainment system
-
Display Contents: To change the settings of Rear view parking guide and Extended rear camera use.
-
Display Settings: To change the screen's brightness and contrast.
The settings menu may not be depending on the specifications of the vehicle specifications.
Descriptions for each function of the Driver Assistance system may differ from the owners' manual by infotainment software update. Refer to the web manual that you can access with the QR code in the infotainment system quick reference.
Display Contents
Rear View Parking Guide
Rear View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the rear view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal guideline shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
Top View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the top view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal scale of rear top view paring guide indicates the liftgate opening distance, 1.5 m (4.9 ft.) from the vehicle.
Extended Rear View Monitor
If Extended Rear View Monitor is selected, Rear View Monitor keeps displaying the rear view when shifting from R (Reverse) to N (Neutral) or D (Drive). When exceeding a certain speed, the rear view stops displaying.
