Air conditioning refrigerant label

Example

* The actual Air Conditioning refrigerant label in the vehicle may differ from the illustration.

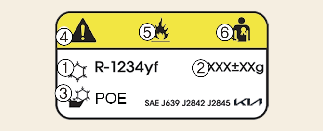

Each symbol and specification on the air conditioning refrigerant label is represented below:

  1. Classification of refrigerant

  2. Amount of refrigerant

  3. Classification of Compressor lubricant

  4. Caution

  5. Flammable Refrigerant

  6. Requires Registered Technician to Service Air Conditioning system

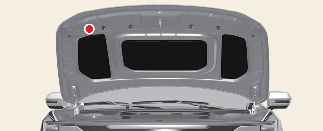

You can find out which air conditioning refrigerant applies to your vehicle on the label inside of the motor compartment.

Refer to More Details for more detail on the location of air conditioning refrigerant label.

CAUTION

It is important that the correct type and amount of oil and refrigerant are used, otherwise damage to the vehicle may occur. Also, the refrigerant may be flammable and under high pressure. To prevent damage, the air conditioning system in your vehicle should only be serviced by trained and certified technicians. (Refer to SAE J2845.)
