Replacing the climate control air filter
Operation
-

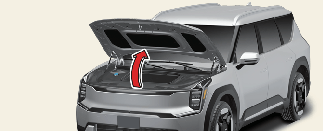

Open the hood.

-

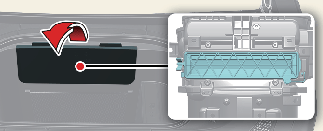

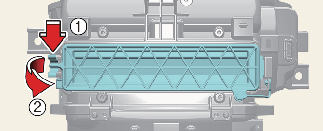

Remove the cover by pulling the upper part of the cover. Remove the climate control air filter case (2) by pulling out left side of the cover (1).


-

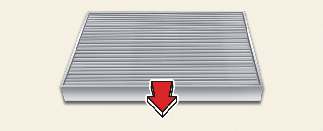

Replace the climate control air filter (3).

-
Reassemble in reverse order of disassembly.

NOTICE
When replacing the climate control air filter, install it properly. Otherwise, the system may produce noise and its effectiveness may be reduced.
