Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

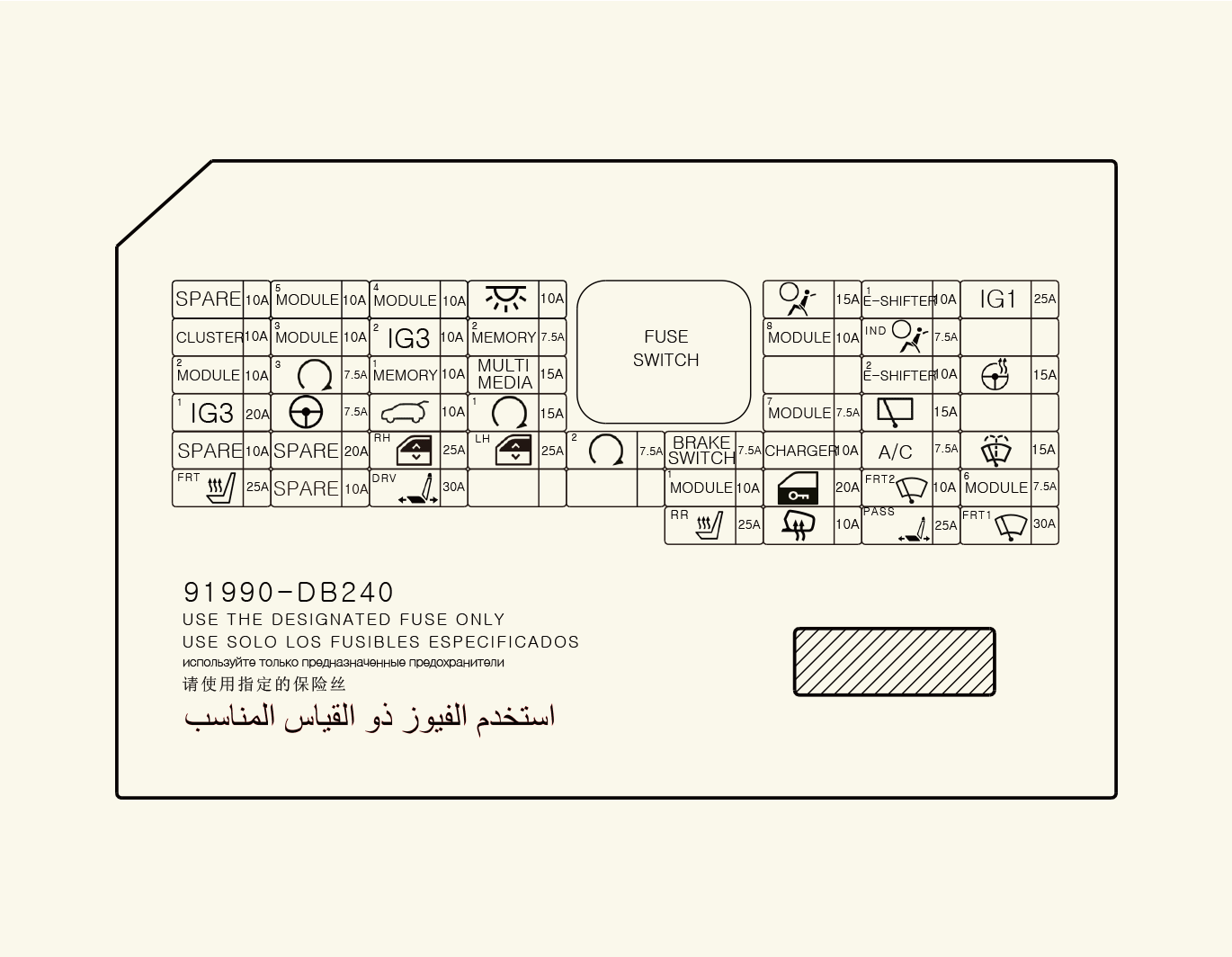

Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
MODULE 5 |
|
10A |
Crash Pad Switch, ECM(Electro Chromic Mirror), Audio / Video &Navigation Head Unit, Head Lamp Leveling Device Actuator LH/RH, Front Seat Warmer Control Module, Rear Seat Warmer Control Module, Auto Head Lamp Leveling Device Module, Front Air Ventilation Seat Control Module, Amp |
|
MODULE 4 |
|
10A |
Crash Pad Switch, MFC Module, AEB Module, Blind Spot Detection, Radar Left Handle side/Right Handle side, VESS, Console Upper EXTN (STR'G WHEEL HEATED) |
|
INTERIOR LAMP |
|
10A |
Luggage Lamp, Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Rain Sensor, Wireless Charger |
|
A/BAG |
 |
15A |
ACU(Airbag Control Unit), ODS |
|
E-SHIFTER 1 |
E-SHIFTER 1 |
10A |
Console Upper EXTN (SBW) |
|
IG 1 |
|
25A |
PCB Block (FUSE- IEB2, EPCU2) |
|
CLUSTER |
|
10A |
Cluster |
|
MODULE 3 |
|
10A |
BCM (Body Control Module), Driver/Passenger Door Module, Stop Lamp Switch |
|
IG3 2 |
|
10A |
Fuel Filler Door & Battery Charge Switch, Cluster, Charger Indicator, Air Conditioner Control Module, Audio/Video & Navigation Head Unit, Audio, IG3, PTC Heater, Charge Control Module |
|
MEMORY 2 |
|
7.5A |
VESS, BATT_COOL_EXV |
|
A/BAG IND |
 |
7.5A |
Cluster, Air Conditioner Control Module |
|
MODULE 2 |
|
10A |
O/S MIRROR, Power Outlet Relay, Amp, BCM(Body Control Module), Wireless Charge Unit, USB/Charge Unit, Smart Key Control Module, Adio Unit |
|
BUTTON START3 |
|
7.5A |
Smart Key Control Module |
|
MEMORY 1 |
|
10A |
Driver/Passenger Door Module, IMS(Driver Integrated memory system Module), Cluster, Air Conditioner Control Module, ECM(Electro Chromic Mirror), Auto Light & Photo Sensor, BCM (Body Control Module), Active Air Flap Unit |
|
MULTI MEDIA |
|
15A |
Audio / Video & Navigation Head Unit, Keyboard |
|
E-SHIFTER 2 |
E-SHIFTER 2 |
10A |
SBW Control Unit |
|
IG3 1 |
|
20A |
IG3_1 Relay |
|
MDPS |
 |
7.5A |
MDPS Unit |
|
TAIL GATE |
 |
10A |
Tail Gate Relay |
|
BUTTON START1 |
|
15A |
Smart Key Control Module |
|
MODULE 7 |
|
7.5A |
Front Seat Warmer Control Module/ Front Air Ventilation Seat Control Module, Rear Seat Warmer Control Module, AC Inverter Module |
|
WIPER (REAR) |
|
15A |
Motor Room Junction Block (Rear Wiper Relay), Rear Wiper Motor |
|
HEATED STEERING |
|
15A |
BCM (Body Control Module) |
|
P/WINDOW RH |
|
25A |
Power Window Right Handle side Relay, Passenger Safety Power Window Module (LHD), Driver Safety Power Window Module (RHD) |
|
P/WINDOW LH |
|
25A |
Power Window Left Handle side Relay, Driver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD) |
|
BUTTON START 2 |
|
7.5A |
Start/Stop Button Switch, Smart Key Control Module |
|
BRAKE SWITCH |
|
7.5A |
Stop Lamp Switch, Smart Key Control Module |
|
CHARGER |
CHARGER |
10A |
Charge Control Module, Charger Lock/Unlock Relay, C_C_LAMP |
|
A/CON |
 |
7.5A |
Air Conditioner Control Module, Ionizer |
|
WASHER |
 |
15A |
Multifunction Switch |
|
S/HEATER (FRT) |
 |
25A |
Front Seat Warmer Control Module |
|
P/SEAT (DRV) |
 |
30A |
Driver Seat Manual Switch, Driver Integrated memory system Module |
|
MODULE 1 |
|
10A |
Hazard Switch, OBD, Driver Smart Key Outside Handle, Passenger Smart Key Outside Handle, Driver Door Module, Passenger Door Module, Mood Lamp ,O/S MIRR FOLDING/UNFOLDING RLY |
|
DOOR LOCK |
 |
20A |
Door Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay) |
|
WIPER2 (FRT) |
|
10A |
BCM (Body Control Module), Wiper Motor, Engine Room Junction Block (Front Wiper (LOW) Relay) |
|
MODULE 6 |
|
7.5A |
BCM (Body Control Module), Smart Key Control Module |
|
S/HEATER (REAR) |
 |
25A |
Rear Seat Warmer Control Module |
|
HEATED MIRROR |
 |
10A |
Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, RR HTD, RR HTD RLY |
|
WIPER1 (FRT) |
|
30A |
Wiper Motor, Motor Room Junction Block (Front Wiper (Low) Relay) |
|
P/SEAT (PASS) |
 |
30 A |
Passenger Power Seat |
Motor compartment fuse panel
Circuit (P/R Junction Block)
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE |
B + 5 |
|
60A |
PCB-Block (Fuse - EPCU1, BMS, B/ALARM HORN, HORN, Relay - MAIN) |
|
B + 2 |
|
60A |
IGPM (Fuse - S/HEATER (REAR), ARISU(4CH), IPS(2CH), IPS(2CH)) |
|
|
B + 3 |
|
60A |
IGPM (ARISU(4CH), IPS(2CH), IPS(2CH), IPS(2CH), IPS(1CH)) |
|
|
B + 4 |
|
50A |
IGPM (Fuse - TAIL GATE, SUNROOF, P/WINDOW RH, P/WINDOW LH, S/HEATER (FRT), P/SEAT (DRV), AMP, IG3_1, CHARGER |
|
|
COOLING FAN 1 |
|
60A |
Cooling Fan Relay |
|
|
BLOWER |
|
40A |
Blower Relay |
|
|
IG 1 |
|
40A |
Button Start #2 (IG1) Relay, Button Start #1 (ACC) Relay |
|
|
IG 2 |
|
40A |
Button Start #3 (IG2) Relay |
|
|
MDPS |
|
80A |
MDPS Unit |
|
|
IEB 3 |
|
60A |
IDB_MTR+2 |
|
|
IEB 4 |
|
60A |
IDB_MTR+1 |
|
|
REAR HEATED |
|
50A |
Rear Defogger Relay |
|
|
IEB 1 |
|
40A |
IDB Unit, OBD |
|
|
MAIN |
|
150A |
Fuse - Power Outlet 1, AC Inverter Module, Head Lamp(high), Rear Wiper |
|
|
FUSE |
POWER OUTLET 3 |
|
20A |
P/OUTLET Relay |
|
POWER OUTLET 2 |
|
20A |
P/OUTLET Relay |
|
|
OBC |
OBC |
10A |
OBC Unit |
|
|
AMS |
AMS |
10A |
Battery SNSR |
|
|
EWP |
|
15A |
Electric Water Pump (Battery), Electric Water Pump (PE) |
|
|
B + 1 |
|
40A |
Instrument Panel Junction Block (Fuse -BUTTON START1, BUTTON START2, BRAKE SWITCH, MODULE1, DOOR LOCK, Leak Current Autocut Device) |
|
|
E-SHIFTER 1 |
E-SHIFTER 1 |
40A |
E-SHIFTER Relay |
|
|
E-SHIFTER 2 |
E-SHIFTER 2 |
10A |
E-SHIFTER Relay |
|
|
REAR WIPER |
|
15A |
Rear Wiper Relay |
|
|
FUSE |
HEAD LAMP HI |
|
10A |
H/LAMP HI Relay |
|
INVERTER |
|
30A |
AC Inverter Module |
|
|
POWER OUTLET 1 |
|
40A |
Power Outlet Relay |
|
|
FUSE |
B/UP LAMP |
|
10A |
B/UP LAMP Relay |
|
IG3_2 |
|
10A |
OBC Unit |
|
|
IG3_3 |
3 IG3 |
10A |
Cooling Fan Relay, E-Compressor, Blow Relay, EPCU |
|
|
IG3_4 |
4 IG3 |
10A |
BMS Unit, Active Air Flap Unit, 3 WAY_VALVE(RH/LH), B/UP LP Relay |
|
|
IG3_1 |
|
15A |
IG3_1 Relay |
|
|
EPCU 1 |
|
15A |
EPCU |
|
|
BMS |
BMS |
15A |
BMS Unit |
|
|
HORN |
|
20A |
Horn Relay |
|
|
IEB 2 |
|
10A |
IDB Unit, Multipurpose Check Connector |
|
|
EPCU 2 |
|
10A |
EPCU |
|
|
B/ALARM HORN |
|
10A |
Burglar Alarm Horn Relay |
|
|
TRAILER |
|
40A |
TRAILER |
|
PCB Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
WIPER1 |
 |
25A |
PCB (Printed Circuit Board) Block (Wiper Main Relay) |
|
EPCU |
 |
15A |
Front Inverter |
|
B/ALARM |
 |
15A |
PCB (Printed Circuit Board) Block (Burglar Alarm Horn Relay) |
|
HORN |
 |
15A |
PCB (Printed Circuit Board) Block (Horn Relay) |
|
OBC |
 |
10A |
ICCU, VCMS |
|
EWP 3 |
 |
15A |
EWP PE |
|
IG3 1 |
 |
15A |
Inverter, VCU |
|
IG3 3 |
 |
20A |
Electronic Water Pump |
|
EPCU |
 |
15A |
Inverter |
|
ECU 1 |
 |
10A |
VCU |
|
IG3 4 |
 |
15A |
ICCU, VCMS, CDM, Cooling Fan |
|
IEB 4 |
 |
10A |
IEB Unit |
|
CHARGER 2 |
 |
10A |
Charger Lock, Unlock Relay |
|
IG3 2 |
 |
20A |
3WAY V/V, EOP, ICU (IG3 FUSE) |
Relay
Refer to the following table for the relay type.
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
|
Button Start #2 (IG1) Relay |
MICRO |
|
E-SHIFTER |
E-SHIFTER Relay |
MICRO |
|
|
Rear Wiper Relay |
MICRO |
|
|
Button Start #3 (IG2) Relay |
MICRO |
|
|
B/UP Lamp Relay |
MICRO |
|
|
Button Start #1 (ACC) Relay |
MICRO |
|
|
Cooling Fan Relay |
MINI |
|
|
Rear Defogger Relay |
MINI |
|
|
Blower Relay |
MICRO |
|
|
HEAD LAMP HI Relay |
MICRO |
|
|
Power Outlet Relay |
MICRO |
