Rear climate control

Rear climate can be set both from the front and rear seat.

NOTICE

The rear seat wind direction and wind volume control operate independently of the front seat. However, when it comes to rear seat temperature control, it operates in conjunction with the front seats, depending on usage conditions and the environment.

For quickly heating the car, activate both the front and rear air conditioning simultaneously.

From the front seat

  1. Set the rear climate control selection (REAR) button in the front climate control panel to the ON position.

  2. Set the rear mode, temperature and fan speed to the desired position.

From the rear seat

  1. To unlock the rear climate control, press and hold the rear climate control selection (REAR) button in the front climate control panel.

  2. Set the rear mode, temperature and fan speed to the desired position from the rear seat.

Rear mode selection

From the front seat

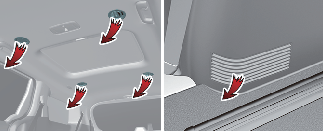

  • Front climate control is MAX A/C, : Rear air blows from the upper vents on the rear ceiling.

  • Front climate control is : Rear air blows from the upper vents on the rear ceiling and the lower vents on the right rear trim together.

  • Front climate control is , : Rear air blows from the lower vents on the right rear trim.

From the rear seat

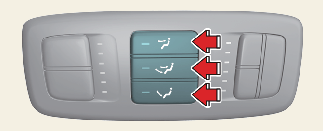

After unlocking the rear climate control, push the rear mode selection button on the on the rear control panel to select the mode as follows:

  • : Rear air blows from the upper vents on the rear ceiling.

  • : Rear air blows from the upper vents on the rear ceiling and the lower vents on the right rear trim together.

  • : Rear air blows from the lower vents on the right rear trim.

Rear temperature control

From the front seat

Set the rear climate control selection (REAR) button to the ON position and turn the temperature control knob in the front climate control panel to the desired position.

From the rear seat

To change the rear air temperature, press the button () for warmer air or press the button () for cooler air.

Rear fan speed control

From the front seat

Set the rear climate control selection (REAR) button to the ON position and turn the fan speed control knob in the front climate control panel to the desired position.

From the rear seat

Press the rear fan speed control button on the rear control panel for desired amount of airflow.

To turn off the rear air conditioning system press the off button in the rear climate control panel.
