LCD display modes

Mode

Driving Assist

Trip Computer

Turn By Turn (TBT)*

User Settings

Information

Master Warning

Up/Down

Forward Collision-Avoidance Assist

Lane Keeping Assist

Blind-Spot Collision-Avoidance Assist*

Smart Cruise Control*

Lane Following Assist

Range

Route Guidance

Driver Assistance*

Driving force distribution (4WD)*

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Driver Attention Warning

Drive Information

Destination Info

Eco Vehicle

TPMS

Intelligent Speed Limit Assist

Since Refuelling

Cluster

Accumulated Info

Lights*

Energy Flow

Door*

Digital Speedometer*

Convenience*

Units

Language

Default

* : if equipped

Fuel economy

  1. Average fuel economy

  2. Instant fuel economy

1. Average fuel economy

The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

  • At vehicle start: The information will automatically reset when the driver's door is opened after the vehicle is turned off, or approximately 3 minutes have passed after the vehicle is turned off.

  • After refuelling: After refuelling more than 6 litres (1.5 gallons) and driving over 1 km/h (1 mph), the vehicle will reset to default automatically.

  • Manually: Press and hold the OK button on the steering wheel when the average fuel economy is displayed.

2. Instant fuel economy

Displays the instant fuel economy during the last few seconds when the vehicle speed is more than approximately 10 km/h (6 mph).

NOTICE

This information is always displayed at the bottom centre of the Full LCD cluster.

Driving Assist mode

This mode displays the state of:

  • Forward Collision-Avoidance Assist

    Lane Keeping Assist

    Blind-Spot Collision-Avoidance Assist

    Smart Cruise Control

    Lane Following Assist

  • Driver Attention Warning

  • Intelligent Speed Limit Assist

Trip computer mode

* You may change through items in the following order.

Drive info

Type A
Type B

A: Drive info

  1. Accumulated trip distance

  2. Average fuel efficiency

  3. Total driving time

The information after one ignition cycle.

Drive Info screen will reset when the driver's door is opened after turning off the vehicle, or the vehicle is turned on after 3 minutes have passed.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Drive info.

Since refuelling

Type A
Type B

A: Since refuelling

  1. Accumulated trip distance

  2. Average fuel efficiency

  3. Total driving time

The information after refuelling.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Since refuelling.

Accumulated info

Type A
Type B

A: Accumulated info

  1. Accumulated trip distance

  2. Average fuel efficiency

  3. Total driving time

The information is accumulated starting from the last reset.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Accumulated Info.

NOTICE

  • The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or approximately 50 m (0.03 miles) since the vehicle is in ON position.

  • Fuel efficiency is calculated after the vehicle has run for more than 300 metres.

  • The information will be accumulated even if the engine is running and the vehicle is not in motion.

Digital speedometer

Indicates the speed of the vehicle.

Driving force distribution (4WD) (if equipped)

The distribution status of the driving power of the front and rear wheels are displayed.

For more details, refer to More Details.

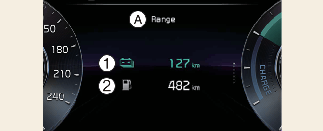

Range (Plug-in hybrid vehicle)

The range is the estimated distance the vehicle can be driven with the remaining high-voltage (hybrid) battery (1, Electric) and fuel in the fuel tank (2, Petrol).

A: Range

  1. Estimated distance with the remaining high-voltage (hybrid) battery (Electric)

  2. Estimated distance with the fuel in the fuel tank (Petrol)

  • If the estimated distance is below 1 km (1 mile), the trip computer will display “---” as distance to empty.

    • Distance range: 1 ~ 510 km or 1 ~ 510 miles.

NOTICE

  • If the vehicle is not on level ground or the battery power has been interrupted, the range function may not operate correctly.

  • The range may differ from the actual driving distance as it is an estimate of the available driving distance.

  • The trip computer may not register additional fuel if less than 6 litres (1.6 gallons) of fuel are added to the vehicle.

  • The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.

Energy flow

A: Hybrid Mode

The hybrid system informs the driver about its energy flow in various operating modes. Whilst driving, the current energy flow is specified in 11 modes.

* For more details, refer to More Details.

Turn By Turn (TBT) mode

This mode displays the Navigation status.

Information mode

Tyre pressure

A: Low tyre pressure

Information related to tyre pressure.

Refer to More Details.

Master warning mode

This mode informs you of the following situations:

  • Driver assistance system malfunction, limitation or radar/camera blockage

  • LED headlamp malfunction

  • Lamp malfunction

  • TPMS failure, low tyre pressure, etc.

At this time, the Master warning light () will appear. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

Service Interval

A: Service Interval

  1. Service interval schedule

It calculates and displays when you need a scheduled maintenance service (mileage or days).

To reset the service interval, select Cluster → Service Interval → Reset from the Settings menu.

NOTICE

  • If the remaining mileage or time reaches 1,500 km (900 miles) or 30 days, the message Service in is displayed for several seconds each time you set the vehicle to the ON position.

  • If you do not have your vehicle serviced according to the already inputted service interval, Service required message is displayed for several seconds each time you set the vehicle to the ON position.

  • If any of the following conditions occurs, the mileage and days may be incorrect.

    • The battery cable is disconnected.

    • The battery is discharged.

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lights, etc.

* The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance (if equipped)

Items

Explanation

Driving Convenience

  • Highway Driving Assist

  • High way Auto Speed Change

Speed Limit

  • Speed Limit Offset

  • Speed Limit Assist/Speed Assist Warning/Off

Warning timing

  • Standard/Late

Warning volume

  • High/Medium/Low/Off

Haptic Warning

Activate/Deactivate

Driver Attention Warning

  • Leading vehicle departure alert

  • Inattentive driving warning

Forward safety

  • Active Assist/Warning Only/Off

Lane safety

  • Assist/Warning only/Off

Blind-spot safety

  • SEW (Safe Exit Warning)

  • Active assist/Warning only/Off

Parking safety

  • Surround view monitor auto on

  • Parking Distance Warning Auto On

  • Rear Cross-Traffic Safety

  • Rear Active Assist/Rear Warning Only/Off

2. Eco Vehicle (if equipped)

Items

Explanation

Coasting Guidance

  • Coasting Guidance

  • Sound On/Sound Off

Start coasting

  • Early/Normal/Late

Charging connector locking mode

  • Always lock/Lock whilst charging/Do not lock

3. Cluster (if equipped)

Items

Explanation

Theme Selection

  • Theme A/Theme B/Theme C/Dynamic

Wiper/Lights Display

Activate

Traffic Signs

Activate

Icy Road Warning

Activate

Cluster Voice Guidance Volume

  • 0~3 Level

Welcome Sound

Activate

4. Lights (if equipped)

Items

Explanation

Illumination

  • 1~20 Level

One Touch Turn Signal

  • Off/3/5/7 Flashes

Ambient Brightness

  • Off/1/2/3/4

Ambient Light Colour

  • 8 colours

Headlight Delay

Activate

High Beam Assist

Activate

5. Door (if equipped)

Items

Explanation

Automatically Lock

  • Enable on shift/Enable on speed/Off

Automatically Unlock

  • On shift to P/Vehicle Off/On key out (if equipped)/Off

2 Press Unlock

Activate

Power Tailgate

Activate

Power Tailgate Opening Speed

  • Fast/Normal

Power Tailgate Opening Height

  • Full open/Level 3/Level 2/Level 1/User Height Setting

Smart Tailgate

Activate

Remote Window Control (if equipped)

Activate
NOTICE

  • Automatically Lock

    • Enable On Shift: All doors will be automatically unlocked when the vehicle is shifted to P (Park) to R (Reverse), N (Neutral), or D (Drive). (Activated with the vehicle ON position)

    • Enable On Speed: All doors will be automatically locked when the vehicle speed is over 15 km/h (9 mph).

  • Automatically Unlock

    • On Shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)

    • Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

6. Convenience (if equipped)

Items

Explanation

Seat Easy Access

  • Off/Normal/Extended

Rear Occupant Alert

Activate

Service Interval

  • Enable Service Interval/Adjust Interval/Reset

Welcome Mirror/Light

Activate

Wireless Charging System

Activate

Auto rear wiper (in R)

Activate

7. Units

Items

Explanation

Speed Unit

  • km/h, MPH

Temperature Unit

  • °C, °F

Fuel Economy Unit

  • km/L, L/100km

Tyre Pressure Unit

  • psi/kPa/bar

8. Language

Items

Explanation

Language

Activate

9. Default

Items

Explanation

Default

Default

Driver Assistance settings (infotainment system) (if equipped)

select Settings → Vehicle → Driver assistance on the infotainment system screen to set the Driver Assistance function.

  • Driver assistance

    • Driver Convenience

    • Speed limit

    • Warning timing

    • Warning volume

    • Haptic warning

    • DAW (Driver Attention Warning)

    • Forward safety

    • Lane safety

    • Blind-spot safety

    • Parking safety
