Operation

1. Pull the bonnet release lever (1).

2. Push the secondary latch (2) to the left.

3. Lift the bonnet (3) upwards.

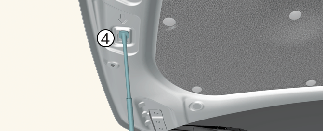

4. Pull out the support rod (4).

5. Hold the bonnet opened with the support rod.

WARNING

• Open the bonnet after turning off the engine on a flat surface, shifting the gear to the P (Park) position and setting the parking brake.

• Grasp the support rod in the area wrapped in rubber. The rubber will help prevent you from being burned by hot metal when the engine is hot.

• The support rod must be inserted completely into the hole provided in the bonnet whenever you inspect the engine compartment. This will prevent the bonnet from falling and possibly injuring you.
