Operation of Forward/Reverse Parking Distance Warning
Operating condition
-

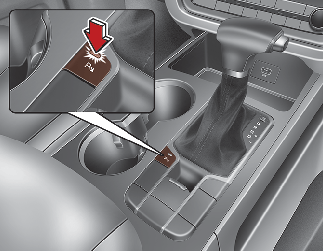

This function activates when Parking Distance Warning button is pressed with the ENGINE START/STOP button or the ignition switch.
-
The indicator of Parking Distance Warning button turns on automatically and activates Forward/Reverse Parking Distance Warning when you shift the gear to the R (Reverse) position.
-
The sensing distance whilst backing up is approximately 100 cm (40 inches) when you are driving less than 10 km/h (6 mph).
-
The sensing distance whilst moving forward is approximately 100 cm (40 inches) when you are driving less than 10 km/h (5 mph).
-
When more than two objects are sensed at the same time, the closest one will be recognised first.
-
The side sensors are activated when you shift the gear to the R (Reverse) position.
-
If the vehicle speed is above 20 km/h, the function automatically turns off. To activate again, push the button.
Notice
It may not operate if it's distance from the object is already less than approximately 25 cm when the function is ON.
Type of warning indicator and sound
|
Distance from object |
Warning indicator |
Warning sound |
||
|---|---|---|---|---|
|
When driving forward |
When driving backward |
|||
|
60 cm ~ 100 cm (24 inches ~ 40 inches) |
Front |
 |
- |
Buzzer beeps intemittently |
|
60 cm ~ 120 cm (24 inches ~ 48 inches) |
Rear |
- |
 |
Buzzer beeps intermittently |
|
30 cm ~ 60 cm (12 inches ~ 24 inches) |
Front |
 |
 |
Buzzer beeps frequently |
|
Rear |
- |
Buzzer beeps frequently |
||
|
30cm (12 inches) |
Front |
 |
 |
Buzzer sounds continuously |
|
Rear |
- |
Buzzer sounds continuously |
||
Notice
-
The actual warning sound and indicator may differ from the illustration according to objects or sensor status.
-
Do not wash the vehicle's sensor with high pressure water.
