Fuse/relay panel description

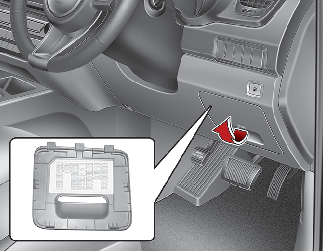

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

Notice

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

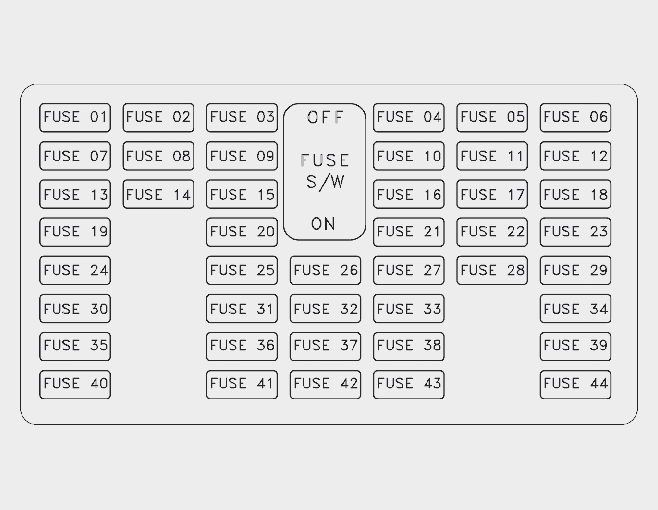

Inner fuse panel

Description

Fuse rating

Protected Component

ECU

10 A

Smart Key Control Module/Immobiliser, ECM/PCM, Injector

MODULE 4

7.5 A

Head Lamp Levelling Device Actuator LH/RH, Multimedia Check Connector, Bezel Switch, Electro Chromic, A/C Control Module, ATM Shift Lever ILL., Heater Control Module, Passenger Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat Heater Control Module, Auto Head Lamp Levelling Device Module

MODULE 3

10 A

Reverse Parking Distance Warning Buzzer, Reverse Parking Distance Warning Sensor LH/RH, Reverse Parking Distance Warning Sensor LH/RH (Centre)

MODULE 5

7.5 A

Rear Seat Heater Control Module, Passenger Ventilation Seat Control Module, Heater Control Module, Portable Lamp, Surround View Unit

MODULE 6

7.5 A

BCM, Smart Key Control Module

WIPER RR

15 A

Wiper RR Relay, Rear Wiper Motor

CLUSTER

7.5 A

Instrument Cluster

MODULE 8

10 A

-

A/CON 1

7.5 A

A/C Control Module, E/R Junction Block (RLY.10, RLY.9), Ionizer, Rear A/C Control Switch, PCB Block (Head Lamp Washer Relay, Blower Relay, Blower RR Relay)

MEMORY 2

10 A

Data Link Connector, Instrument Cluster, Digital Clock, A/C Control Module, BCM, Power Sliding Door Module, Driver Door Module, Passenger Door Module, Passenger Safety Power Window Switch, Driver IMS Control Module

SMART KEY 3

10 A

Start/Stop Button Switch, Immobiliser Module

POWER OUTLET 2

20 A

Front Power Outlet

A/BAG IND

7.5 A

Instrument Cluster, Digital Clock

WASHER

15 A

Multifunction Switch, BCM

HEATED STEERING

15 A

Clock Spring (Steering Wheel Switch)

MEMORY 1

10 A

Clock Spring (Steering Wheel Switch)

SMART KEY 1

25 A

Smart Key Control Module

POWER OUTLET 3

20 A

Rear Power Outlet

MODULE 2

7.5 A

BCM, Driver/Passenger Door Module

SPARE 3

15 A

-

MULTIMEDIA

15 A

Audio, USB Charger #1/#2

SUNROOF FRT

20 A

Front Sunroof Motor

AMP

25 A

AMP

IG1

20 A

PCB Block (Fuse - F14, F15, F17, F21)

SMART KEY 2

7.5 A

Smart Key Control Module

INTERIOR LAMP

10 A

Portable Lamp, Overhead Console Lamp, Cargo Lamp, Front Vanity Lamp Switch LH/RH, Glove Box Lamp, Key Warning Switch

START

7.5 A

With IMMO./Smart Key: Transmission Range Switch

W/O IMMO.: PCB Block (B/Alarm Relay)

SUNROOF RR

25 A

Rear Sunroof Motor

DOOR LOCK

20 A

Smart Junction Block (Tail Gate Relay, Door Lock/Unlock Relay, Sliding Door Lock/Unlock Relay)

FOG LAMP RR

10 A

-

MODULE 1

10 A

Audio, Surround View Unit, BCM, Overhead Console Lamp, Digital Clock, AMP, USB Charger #1/#2, Wireless charger

AIR BAG

15 A

SRS Control Module

A/CON 2

7.5 A

A/C Control Module

SPARE 4

15 A

-

HEATED MIRROR

10 A

A/C Control Module, Passenger Power Outlet Mirror

SPARE 1

15 A

-

BRAKE SWITCH

7.5 A

PCM, Smart Key Control Module, Stop Lamp Switch

S/WARMER RR

25 A

Rear Seat Heater Control Module

P/WINDOW LH

25 A

LHD: Driver Safety Window Module, Driver Door Module

RHD: Passenger Safety Window Module, Passenger Power Window Switch, Passenger Door Module W/O Auto Up/Down: Rear Power Window Switch LH

With Auto Up/Down: Rear Safety Power Window Module LH, Rear Safety Power Window Switch LH

MODULE 7

7.5 A

Fuel Lid Switch, ATM Lever Switch, Rear A/C Control Switch

POWER OUTLET 1

20 A

Front Power Outlet

P/SEAT (DRV)

30 A

Driver Manual Switch, Driver IMS Control Module, Driver Lumbar Support Switch

P/WINDOW RH

25 A

RHD: Driver Safety Window Module, Driver Door Module

LHD: Passenger Safety Window Module, Passenger Power Window Switch, Passenger Door Module

W/O Auto Up/Down: Rear Power Window Switch RH

With Auto Up/Down: Rear Safety Power Window Module RH, Rear Safety Power Window Switch RH

S/HEATER FRT

20 A

Passenger Ventilation Seat Control Module, Heater Control Module

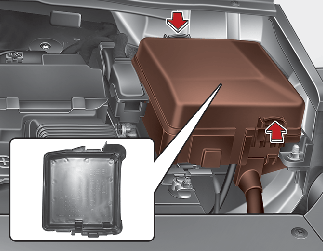

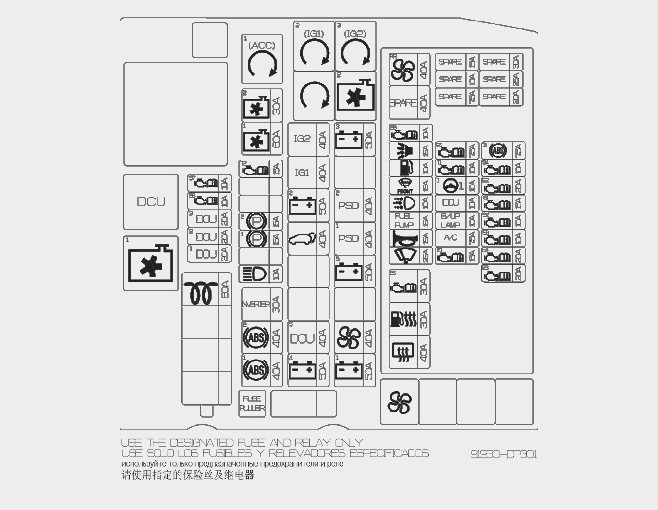

Engine compartment fuse panel

Engine compartment fuse panel

Description

Symbol

Fuse rating

Protected Component

SENSOR 7

10 A

NOX SENSOR RR

SENSOR 6

10 A

NOX SENSOR FR

DCU 3

20 A

[Diesel Engine R2.2] Dosing Control Module

DCU 2

20 A

[Diesel Engine R2.2] Dosing Control Module

DCU 1

20 A

[Diesel Engine R2.2] Dosing Control Module

GLOW

80 A

D4HB: Glow Relay Unit

C/FAN 2

30 A

E/R Junction Block (RLY.6)

C/FAN 1

60 A

E/R Junction Block (RLY.5)

TCU 2

15 A

TCM

EPB 2

15 A

EPB Unit

EPB 1

15 A

EPB Unit

H/LAMP HI

10 A

Head Lamp High Solenoid

INVERTER

30 A

-

ABS 2

40 A

ABS Control Module/ESC Control Module

ABS 1

40 A

ABS Control Module/ESC Control Module

IG2

40 A

E/R Junction Block (RLY.1, RLY.2)/ Ignition Switch

IG1

40 A

E/R Junction Block (RLY.3, RLY.4), Ignition Switch

B+ 2

50 A

Smart Junction Block (Fuse - F42, F43, Leak Current Autocut Device Fuse - F10, F16, F21, F26)

POWER TAIL GATE

40 A

Power Tail Gate Module

DCU 5

40 A

[Diesel Engine R2.2] Dosing Control Module

B+ 4

50 A

Smart Junction Block (IPS3, IPS4, IPS5, IPS6, Fuse - F30, F40)

B+ 3

50 A

Smart Junction Block (IPS1, IPS2)

PSD 2

40 A

Power Sliding Door Module

PSD 1

40 A

Power Sliding Door Module

B+ 5

50 A

Smart Junction Block (Power Outlet Relay, Fuse - F11, F17, F22, F23, F28, F37)

BLOWER

40 A

Blower Relay

B+ 1

50 A

Smart Junction Block (Fuse - F29, F39, F44)

BLOWER RR

40 A

PCB Block (Blower RR Relay)

SPARE

40 A

-

SENSOR (B+)

10 A

Battery Sensor

B/ALARM HORN

15 A

PCB Block (B/Alarm Horn Relay)

FUEL LID

10 A

PCB Block (Fuel Lid Relay)

DEICER

15 A

PCB Block (Deicer Relay)

DRL

10 A

DRL Relay

FUEL PUMP

15 A

PCB Block (Fuel Pump Relay)

HORN

15 A

PCB Block (Horn Relay)

WIPER

25 A

PCB Block (Front Wiper (Low) Relay)

ECU 5

30 A

PCB Block (Engine Control Relay)

FUEL HEATER

30 A

PCB Block (Fuel Heater Relay)

REAR HEATED

40 A

PCB Block (Rear Heater Relay)

SENSOR 5

7.5 A

D4HB: Glow Relay Unit, Fuel Filter Warning Sensor, PCB Block (Fuel Heater Relay)

TCU

10 A

Transmission Range Switch, TCM (D4HB)

MDPS 1

10 A

MDPS (Motor Driven Power Steering)

DCU

10 A

[Diesel Engine R2.2] DCU Relay

B/UP LAMP

10 A

Audio, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror

A/CON

7.5 A

Rear A/C Control Switch

ECU 1

15 A

PCM/TCM

ABS 3

7.5 A

ABS Control Module/ESC Control Module, Steering Angle Sensor

SENSOR 4

10 A

PM SENSOR

ECU 2

20 A

ECM

SENSOR 1

15 A

DSL: Lambda Sensor, Electronic VGT Actuator, Fuel Metering Unit, E/R Junction Block (RLY.5)

SENSOR 2

10 A

DSL: Air Flow Sensor, EGR Cooling Bypass Solenoid Valve, E/R Junction Block (RLY.8)

SENSOR 3

10 A

G6DH: PCM

G6DF: PCM, Injector #1~#6, Fuel Pump Relay

D4HB: Stop Lamp Switch, Crankshaft Position Sensor, PCB Block (Fuel Pump Relay)

ECU 4(DSL)

20 A

DSL: ECM

ECU 3

20 A

ECM

No.

Relay Name

Type

E70

PDM1 Relay

H/C MICRO

E71

PDM2 Relay

H/C MICRO

E72

PDM3 Relay

H/C MICRO

E73

Start Relay

H/C MICRO

E74

Cooling Fan1 Relay

MINI 25375

E75

Cooling Fan2 Relay

H/C MICRO

E76

Blower Relay

H/C MICRO

E77

DCU Relay

MINI 25375
