Function operation

Surround View Monitor controller

  • Press the Parking/View button (1) to turn on Surround View Monitor.

  • Press the button again to turn off the function.

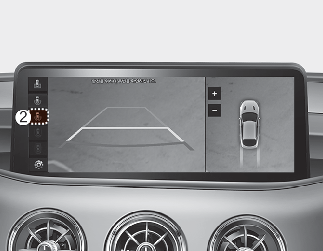

  • Press the Change View button (2) to change the view mode.

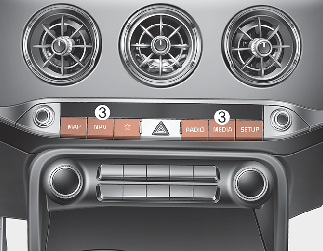

  • Press the Infotainment system button (3) to turn off the function except rear view.

Front view

The function displays front view with the gear in N (Neutral) or D (Drive) to help you park safely. Front view contains top view/front view.

Operating conditions

  • The function will operate when the following conditions are satisfied:

    • The front view will operate when the gear is shifted from R (Reverse) to N (Neutral) or D (Drive).

    • If pressing the Parking/View (1) button shortly when the rear view is displayed on the screen and the gear is in N (Neutral)/D (Drive) position together with 9 mph (15 km/h) or under the vehicle speed, the front view will be displayed on the screen.

    • The Parking/View button (1) is pressed when gearshift status is D (Drive), N (Neutral).

  • The Surround View Monitor Auto On will operate when the following conditions are satisfied:

    • If the Forward/Revers Parking Distance Warning warns with the gear in D (Drive), the parking assist front view will be displayed when 'Driver Assistance → Parking Safety → Surround View Monitor Auto On' is selected.

Off conditions

  • The Parking/View button (1) is pressed again.

  • When vehicle speed is above 9 mph (15 km/h) and the gear is in D (Drive), Surround View Monitor will be turned off and the screen will be changed to the infotainment system screen with the Surround View Monitor. The screen will not revert to the surround view screen even though the vehicle speed is below 19 mph (15 km/h) again.

  • Press the infotainment system button (3) to change the screen to infotainment system screen.

Rear view

The function displays rear view with the gear in N (Neutral) or D (Drive) to help you park safely. Rear view contains top view/rear view/side view.

Operating conditions

  • The screen is turned on when the gear is shifted to R (Reverse).

  • The screen is turned on when the Parking/View button is pressed when the gear is in P (Parking). However, parking guidelines are not shown.

Off conditions

  • When the gear is in R (Reverse), the screen is not turned off.

  • The screen is turned off when the Parking/View button (1) is pressed with the gear in P (Parking).

  • When shifting the gear from R (Reverse) position to P (Parking) position, the screen will be turned off.
