Replacing climate control air filter

Operation

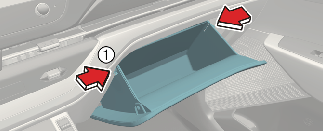

  1. Open the glove box (1) and push both sides of the glove box.

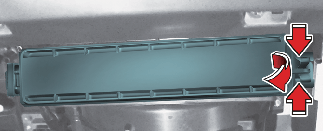

  2. Remove the climate control air filter cover by pulling out both sides of the cover.

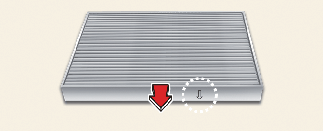

  3. Replace the climate control air filter.

  4. Assemble in reverse order.

NOTICE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
