How to check the symbol on the charging label (For Europe): (if equipped)
|
Vehicle charging INLET |
Charging connector OUTLET |
|---|---|
 N_CT25Q003_E |
 N_CT25Q004_E  <Symbol location and application example> |
 N_CT25Q046_E  N_CT25Q047_E |
Precautions for charging AC and Trickle charger* (Portable charging cable*) (AC charging)
-

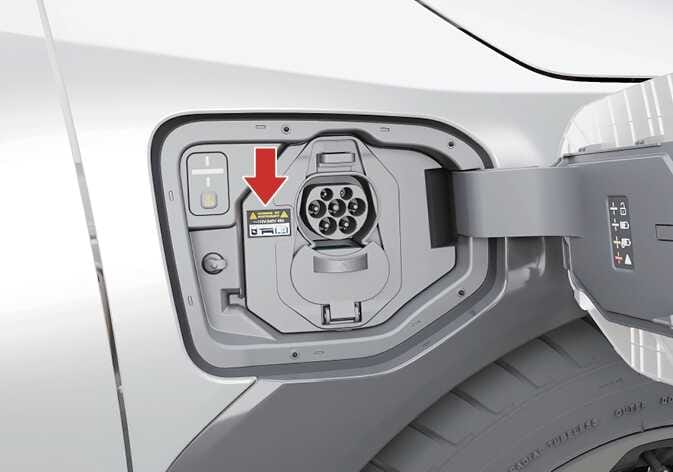

After opening the charging door, check the charging symbol at the bottom of the warning label.
-
Check the charging connector symbol of the AC and Trickle charger cable.
-
After checking the alphabet letter of the charging symbol, proceed the charging step.
Refer to Electric charging label symbol table (For Europe) .
-
Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.
: Depending on your region, this cable may not be provided in your vehicle.
Precautions for DC charging (DC charging)
-
After opening the charging door, check the charging symbol at the bottom of the warning label.
-
Check the charging connector symbol at the high speed charging station.
-
After checking the alphabet letter of the charging symbol, proceed the charging step.
Refer to Electric charging label symbol table (For Europe) .
-
Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.
Electric charging label (For Europe)

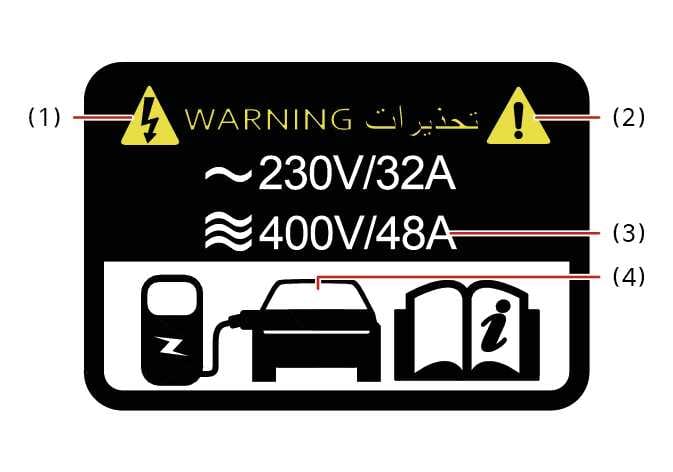

 N_CT25Q005_E  N_CT25Q006_E |
5–7: Symbols for charging type. For further details, refer to Electric charging label symbol table (For Europe). |
): AC Single phase
): AC 3 phase Electric charging label symbol table (For Europe)
|
Supply type |
Standard |
Configuration |
Type of Accessory |
Voltage range |
Identifier |
|---|---|---|---|---|---|
|
AC |
EN 62196-2 |
TYPE 2 |
Vehicle connector and vehicle inlet |
≤480V RMS |
|
|
Supply type |
Standard |
Configuration |
Type of Accessory |
Voltage range |
Identifier |
|---|---|---|---|---|---|
|
DC |
EN 62196-3 |
FF |
Vehicle connector and vehicle inlet |
50V to 500V |
 |
|
200V to 920V |
 |
