Forward/Reverse Parking Distance Warning (PDW): (if equipped)

Forward/Reverse Parking Distance Warning will help warn the driver if a person, an animal or an object is detected within a certain distance from the ultrasonic sensors when the vehicle is moving forward or in reverse.

Detecting sensor

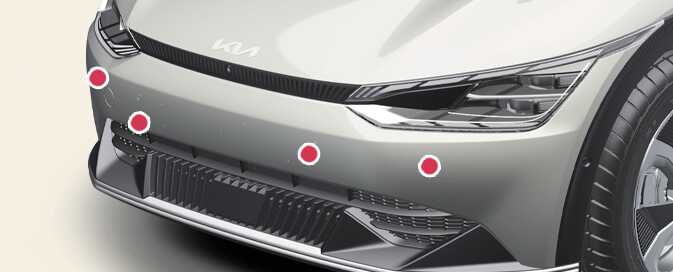

Figure 1. Front ultrasonic sensors (Type A)
OCV041049L

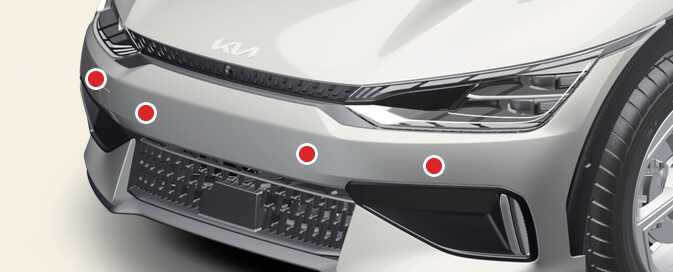

Figure 2. Front ultrasonic sensors (Type B)
OCVGT042049L

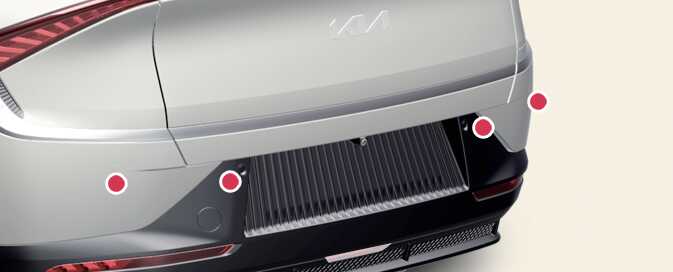

Figure 3. Rear ultrasonic sensors (Type A)
OCV041047L0

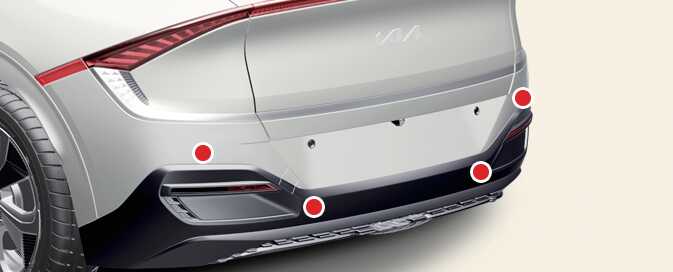

Figure 4. Rear ultrasonic sensors (Type B - GT-Line)
OCV042645L0

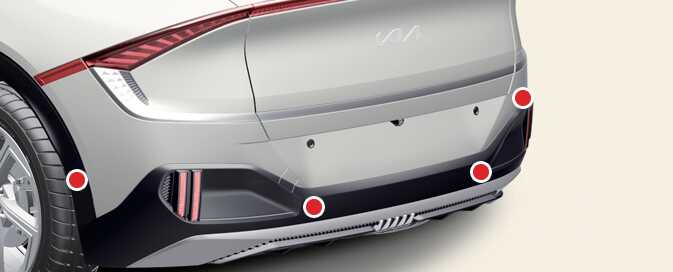

Figure 5. Rear ultrasonic sensors (Type C - GT)
OCVGT042643L0

Refer to the picture above for the detailed location of the detecting sensors.
