How to check the symbol on the charging label (For Europe): (if equipped)

Vehicle charging INLET

Charging connector OUTLET
OCVQ011015L
OCVQ011016L

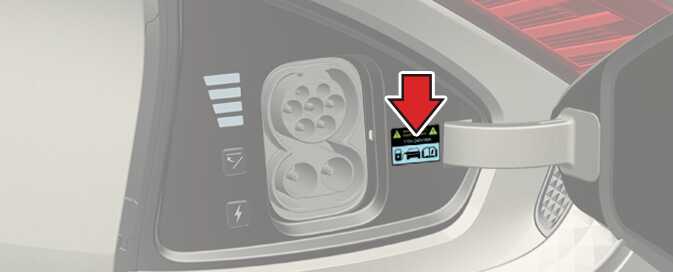

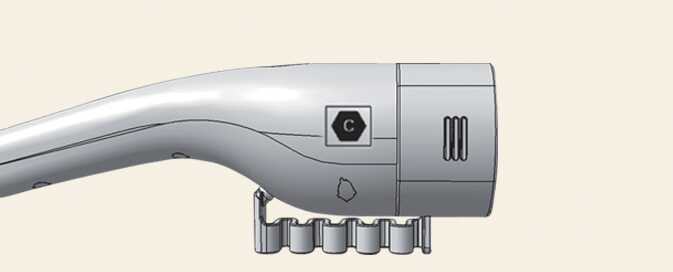

<Symbol location and application example>
OCV081009L

Precautions for charging AC and Trickle charger* (Portable charging cable*) (AC charging)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.

  2. Check the charging connector symbol of the AC and Trickle charger cable.

  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

    Refer to How to check the symbol on the charging label (For Europe).

  4. Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

: Depending on your region, this cable may not be provided in your vehicle.

Precautions for DC charging (DC charging)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.

  2. Check the charging connector symbol at the high speed charging station.

  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

    Refer to How to check the symbol on the charging label (For Europe).

  4. Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

Electric charging label (For Europe)

OCV081012L

The electric charging label is attached on the charging door.

  1. Warning for high voltage

  2. Symbol for charging door

  3. For further details, refer to How to check the symbol on the charging label (For Europe).

  4. Charging voltage and current

    ( ): AC Single phase

    ( ): AC 3 phase

5~7: Symbols for charging type. For further details, refer to How to check the symbol on the charging label (For Europe).

Electric charging label symbol table (For Europe)

AC and Trickle charger* charging

Supply type

Standard

Configuration

Type of Accessory

Voltage range

Identifier

AC

EN 62196-2

TYPE 2

Vehicle connector and vehicle inlet

≤480V RMS

: Depending on your region, this cable may not be provided in your vehicle.

DC charging

Supply type

Standard

Configuration

Type of Accessory

Voltage range

Identifier

DC

EN 62196-3

FF

Vehicle connector and vehicle inlet

50V to 500V

200V to 920V
