Engine coolant temperature gauge

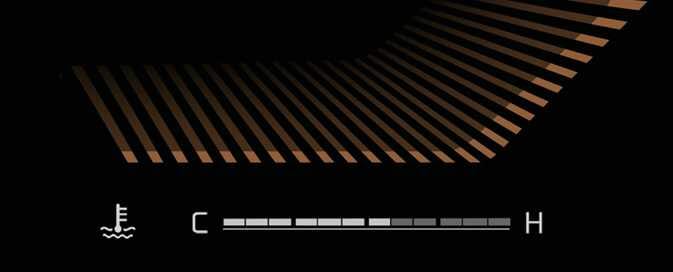

Figure 1. Type A
OMQ4033107

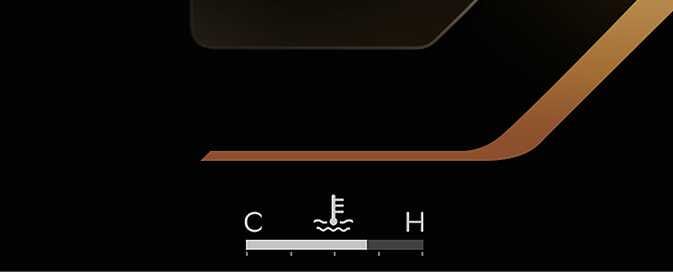

Figure 2. Type B
OMQ4033106

This gauge indicates the temperature of the engine coolant when the ENGINE START/STOP button is ON.

NOTE

If the gauge pointer moves beyond the normal range area (between the C-H) toward the "H" (Hot) position, it indicates overheating that may damage the engine.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to If the engine overheats.

WARNING

Never remove the engine coolant reservoir cap when the engine is hot. The engine coolant is under pressure and could severely burn you. Wait until the engine is cool before adding coolant to the reservoir.

WARNING

Engine coolant reservoir cap

Do not remove the engine coolant reservoir cap when the engine is hot. This may result in coolant being blown out of the opening and cause serious burns.
