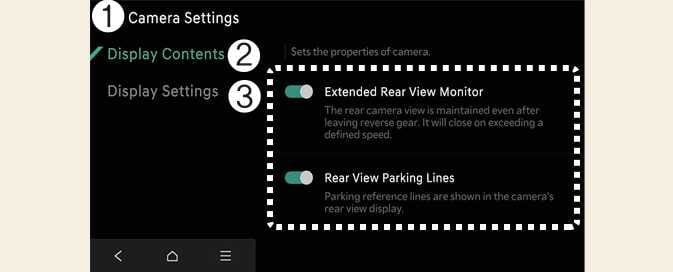

Camera Settings

OMV033139N

  1. Camera Settings

  2. Display Contents

  3. Display Settings

With the vehicle on, select the setup icon () on the screen or Setup > Vehicle > Driver Assistance > Parking Safety > Camera Settings from the infotainment system screen to change the Rear View Monitor settings.

Extended Rear View Monitor

If Extended Rear View Monitor use is selected, the rear camera is displayed even when shifting from R (Reverse) to N (Neutral).

Rear View Parking Guidance

If Rear View Parking Guidance in the display information is selected, Rear View Parking Guidance and Top Rear View Parking Guidance are displayed in the rear monitor.

NOTE

The setting menu may not be available for your vehicle depending on the vehicle specifications.

NOTE

  • The horizontal lines of the Rear View Parking Guidance indicate distances of 20 in (0.5 m), 40 in (1 m) and 91 in (2.3 m) from the vehicle.

  • The horizontal scale of the Top View Parking Guidance indicates distances of 20 in (0.5 m) and 60 in (1.5 m) from the vehicle.
