The rearview function of the Surround View Monitor displays the vehicle's rear situation on the navigation system according to the driver's settings, assisting in safe parking.

While parking, the rearview of the Surround View Monitor is activated in the following cases:

• P (Parking) or N (Neutral) position with a vehicle speed slower than 6 mph (10 km/h). Pressing the Parking/View button (1) and then pressing the view switching button (2) to select the rearview.

• Shifting to R (Reverse)

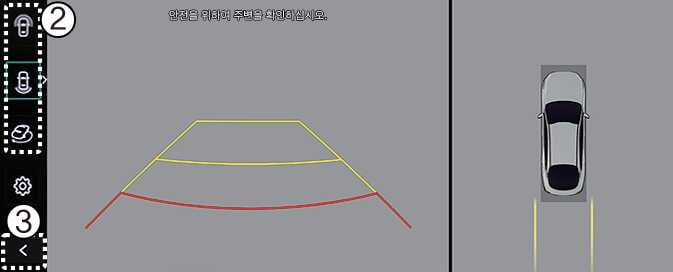

Pressing the view switching button (2) on the Surround View Monitor to select the rearview, rear top view, rear side view, or rear wide view.

While parking, the rearview function of the Surround View Monitor is turned off in the following conditions when the vehicle is in P (Park) or N (Neutral) or D (Drive) mode:

• Shifting from N (Neutral) or D (Drive) to P (Parking)

• Pressing the Parking/View button (1)

• Pressing the back button (3) on the Surround View Monitor screen

• Pressing the infotainment system power button (4)

• Driving faster than 6 mph (10 km/h)

When the vehicle is in R (Reverse), the rearview function of the Surround View Monitor will be turned off in the following conditions:

• Shifting to P (Parking)
