Main fuse (Multi fuse)

Main fuse (Multi fuse)

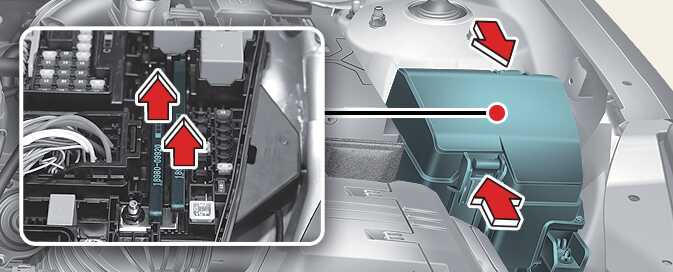

ODL3073035

If the multi fuse is blown, it must be removed as follows:

Turn the ENGINE START/STOP button and all other switches off.
Disconnect the negative battery cable.
Remove the nuts shown in the picture above.
Replace the fuse with a new one of the same rating.
Reverse these steps to reinstall the multi fuse.

NOTE

Do not modify the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have your vehicle inspected by an authorized Kia dealer.
