Replacing lights (LED type)

If the LED lamp is not functioning, have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, please have your vehicle checked by an authorized Kia dealer. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, please have your vehicle inspected by an authorized Kia dealer.

*: if equipped
Figure 1. Headlamp - Type A
ODL3073040L
Figure 2. Headlamp - Type B
ODL3073041L
Figure 3. Fog lamp
ODL3074089N

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Turn signal lamp (LED type)

  4. Turn signal lamp (LED type)*

  5. Front fog lamp (LED type)*

  6. Front side marker

Replacing side repeater lamp (LED type)

If the side repeater lamp is not functioning, have your vehicle inspected by an authorized Kia dealer.

*: if equipped
ODL3073048

  1. Side repeater lamp (LED type)*

Replacing rear lights (LED type)

If the rear lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

*: if equipped
Figure 4. Rear combination lamp - Type A
ODL3074044N
Figure 5. Rear combination lamp – Type B
ODL3074045N

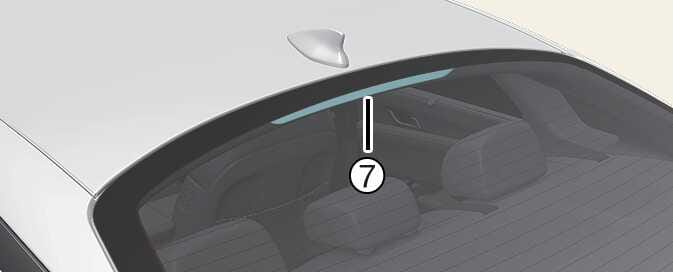

Figure 6. High Mounted Stop Lamp (HMSL)
ODL3076046N

  1. Tail lamp (LED type)

  2. Tail lamp/Stop lamp (LED type)

  3. Tail lamp (LED type)

  4. Stop lamp and Turn signal lamp (LED type)

  5. Turn signal lamp (LED type)

  6. Rear side marker (LED type)

  7. High mounted stop lamp (LED type)

Replacing interior lights (LED type)

If the interior lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

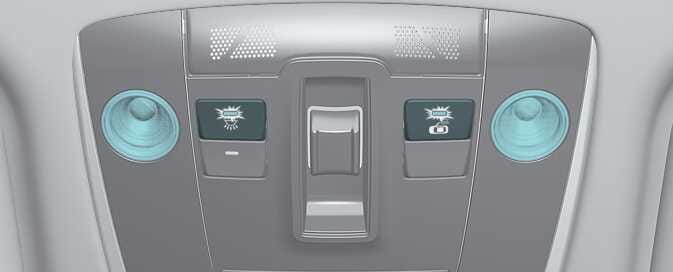

Figure 7. Map lamp
ODL3076094L

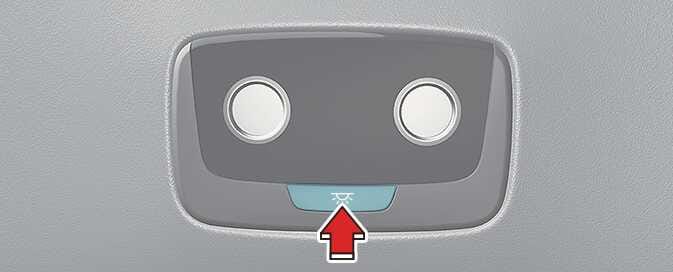

Figure 8. Room lamp (if equipped)
ODL3033091

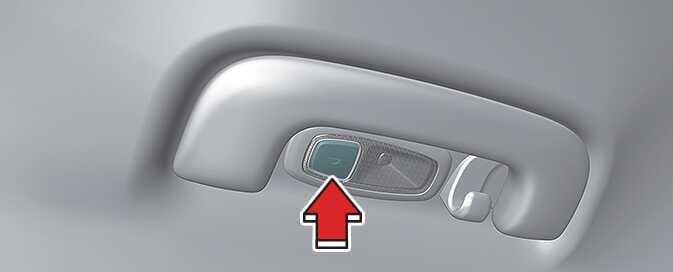

Figure 9. Personal lamp (if equipped)
ODL3033092

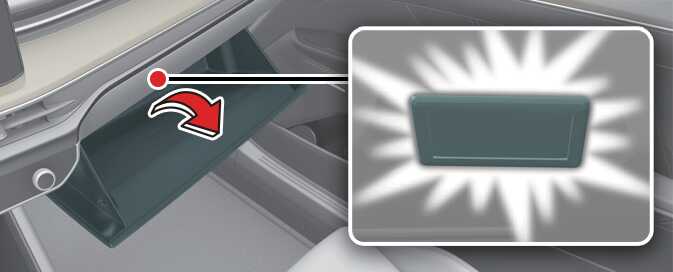

Figure 10. Glove box lamp
ODL3035433N

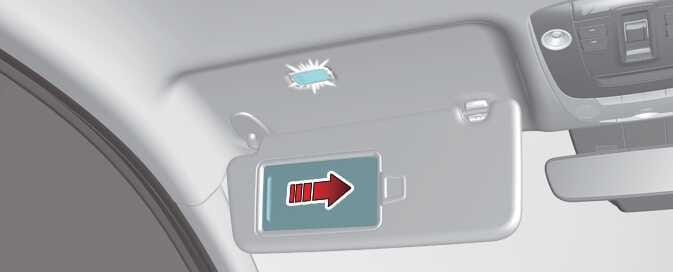

Figure 11. Vanity mirror lamp
ODL3033095

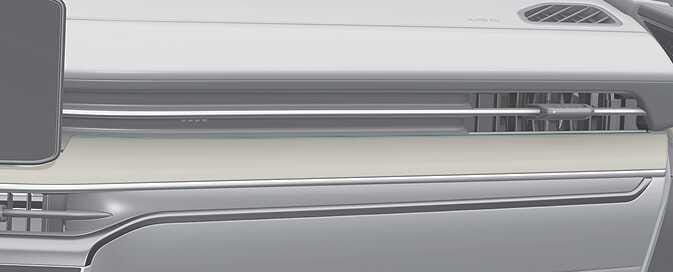

Figure 12. Ambient light -instrument panel (if equipped)
ODL3033409L

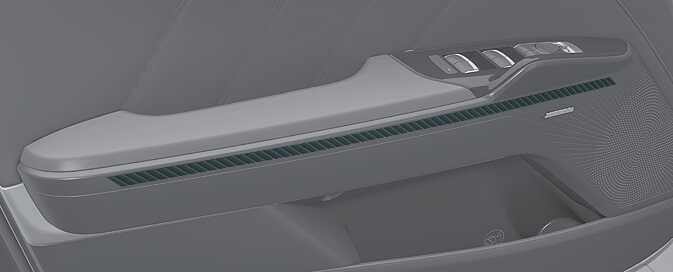

Figure 13. Ambient light -front door (if equipped)
ODL3033410L

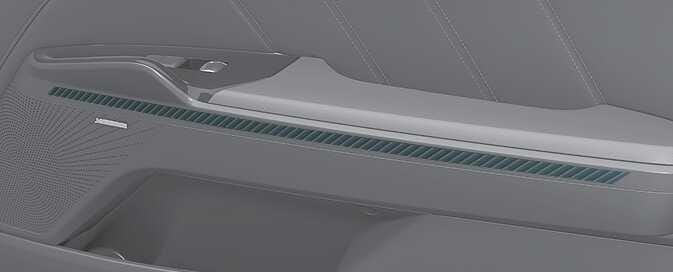

Figure 14. Ambient light -front door (if equipped)
ODL3033411L
