1. Driver Assistance

2. Warning Methods

The Warning Methods can be set with the vehicle on. Select Setup → Vehicle → Driver Assistance → Warning Methods from the settings menu in the infotainment system to change the following settings:

• Parking Safety Priority: Lowers all other audio volumes when 360° camera monitoring system is active.

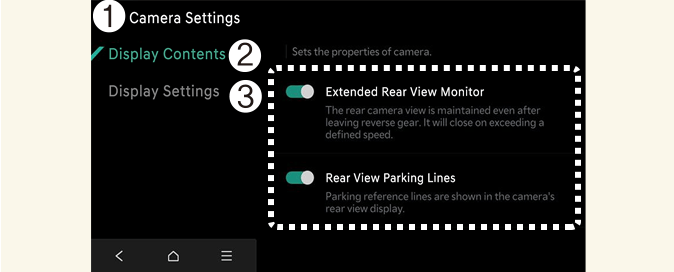

1. Camera Settings

2. Display Contents

3. Display Settings

With the vehicle on, select the setup icon () on the screen or Setup → Vehicle → Driver Assistance → Parking Safety → Camera Settings from the infotainment system screen to change the Rear View Monitor settings.

• Display Contents: Specify information that will be displayed on the parking assistance screen.

• Parking Distance Warning: When the Parking Distance Warning is selected, the Parking Distance Warning is displayed on the top view to the right of the 360° camera monitoring system screen when the Parking Distance Warning is activated.

• Top View Parking Guidance: When Top View Parking Guidance is selected, it is displayed on the top view to the right of the 360° camera monitoring system screen when the front or rear top view is activated.

• Rear-view Parking Guidance: Rear-view Parking Guidance is displayed in the rear-view when Rear-view Parking Guidance is selected.



  NOTICE

  • The setting menu may not be available for your vehicle depending on vehicle features and specifications.

  • The parking guide horizontal lines in the rear view indicate distances of 0.5 m (20 in), 1 m (40 in), and 2.3 m (91 in) from the vehicle.

  • The horizontal scale of the Top View Parking Lines indicates distances of liftgate opening distance and 2 m (79 in) from the vehicle.

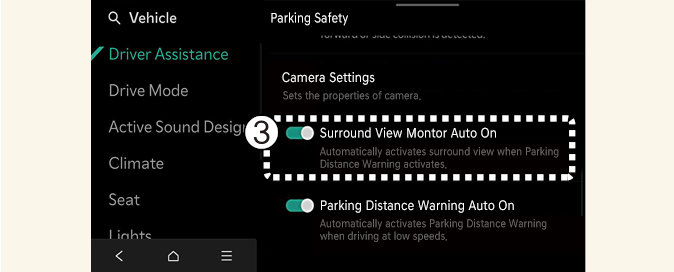

With the vehicle on, select Setup → Vehicle → Driver Assistance → Parking Safety → Surround View Monitor Auto On from the infotainment system screen to use the function.
