Reverse Parking Collision-Avoidance Assist operation
Turning On/Off

Press and hold the Parking Safety button (
) more than 2 seconds to turn the Parking Collision-Avoidance Assist on or off.
Reverse Parking Collision-Avoidance Assist
When detecting a risk of collision with pedestrians or objects behind the vehicle, the warning sound and steering wheel will vibrate and the warning appears in the cluster. If the 360° camera monitoring system is active, the Infotainment system screen also displays a warning.
If a collision is urgent, the Reverse Parking Collision-Avoidance Assist controls the breaking of the vehicle.
Backward safety function
Reverse Parking Collision-Avoidance Assist is enabled when the following conditions are satisfied:
-
The liftgate and doors are closed
-
The Electronic Parking Brake (EPB) is released
-
The gear is shifted to R (Reverse)
-
Your driving speed is below 10 km/h (6 mph) (detecting pedestrians)
-
Your driving speed is below 4 km/h (1 mph) (detecting objects)
-
Parking Collision-Avoidance Assist components such as the wide-rear view camera and the rear ultrasonic sensors are in normal conditions
Braking assist is released after 5 minutes. Immediately depress the brake pedal and check your surroundings.
Braking assist is also released under the following conditions when:
-
The gear is shifted to P (Park) or D (Drive)
-
The brake pedal is depressed with sufficient power

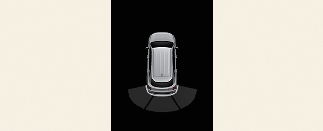

When Parking Collision-Avoidance Assist activates, a line appears at the bottom of the vehicle image in the instrument cluster.

-
Parking Collision-Avoidance Assist operates only once after shifting the gear to R (Reverse). To reactivate Parking Collision-Avoidance Assist, shift the gear from another gear to R (Reverse).
-
When Parking Collision-Avoidance Assist is activated while reversing, braking control will be released after 5 minutes and the Electronic Parking Brake (EPB) will be engaged.
