Utility information view

Low tyre pressure warning display

A: Low tyre pressure

This warning message is displayed if the tyre pressure is low. The corresponding tyre on the vehicle will appear.

* For more details, refer to More Details.

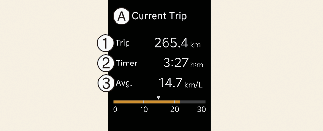

Drive info display

At the end of each driving cycle, the Driving Info message is displayed.

A: Current Trip

Trip
Timer
Avg.

This display shows the trip distance, average fuel economy, and driving time.

This information is displayed for a few seconds when you turn off the vehicle, and then goes off automatically. The information is calculated for each time the vehicle is turned on.

NOTICE

If sunroof open warning is displayed in the cluster, the Driving Information message may not be displayed.
To set the charging time and/or climate time, refer to a separately supplied car navigation system manual for detailed information.

Information since refuelling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refuelling.

A: Since Refuelling

Trip
Timer
Avg.

Information since refuelling is calculated after the vehicle has run for more than 300 m (0.19 miles).
If you press "OK" button for more than 1 second after the information since refuelling is displayed, the information will be reset.
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

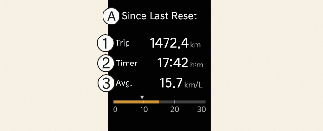

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

A: Since Last Reset

Trip
Timer
Avg.

Accumulated information is calculated after the vehicle has run for more than 300 metres.
If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.
If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
