Engine room compartment overview

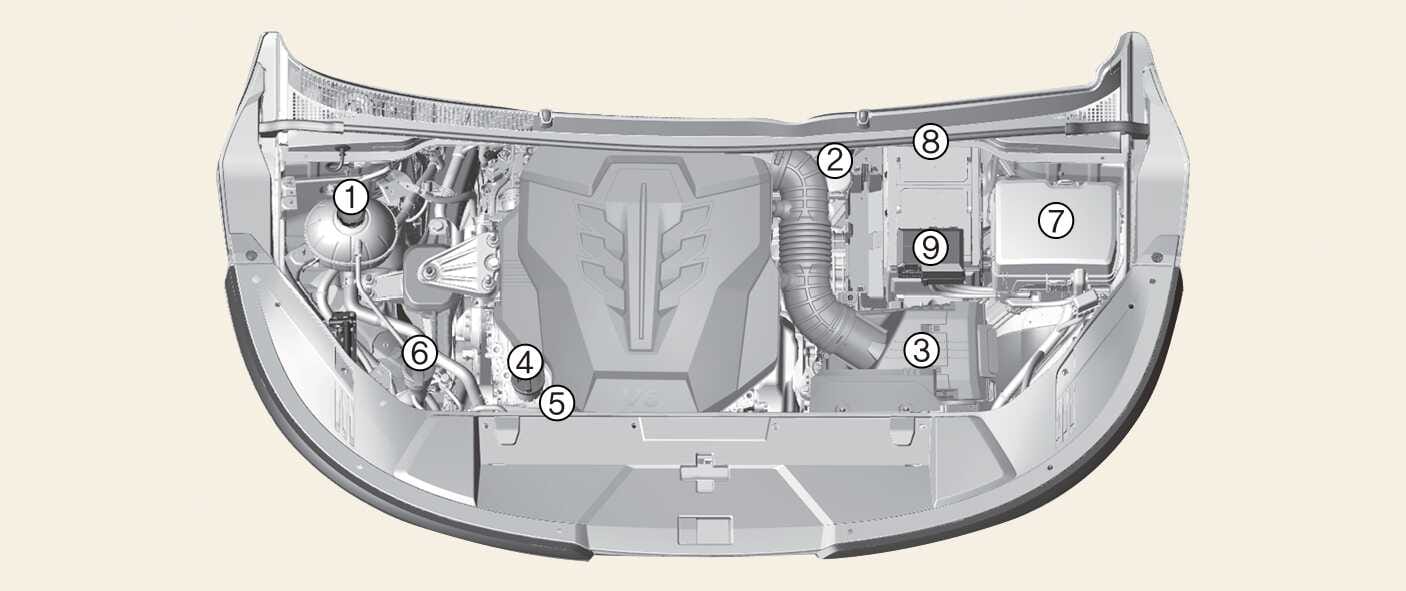

Figure 1. Smartstream G3.5 MPI (Petrol)
OKA4073020L

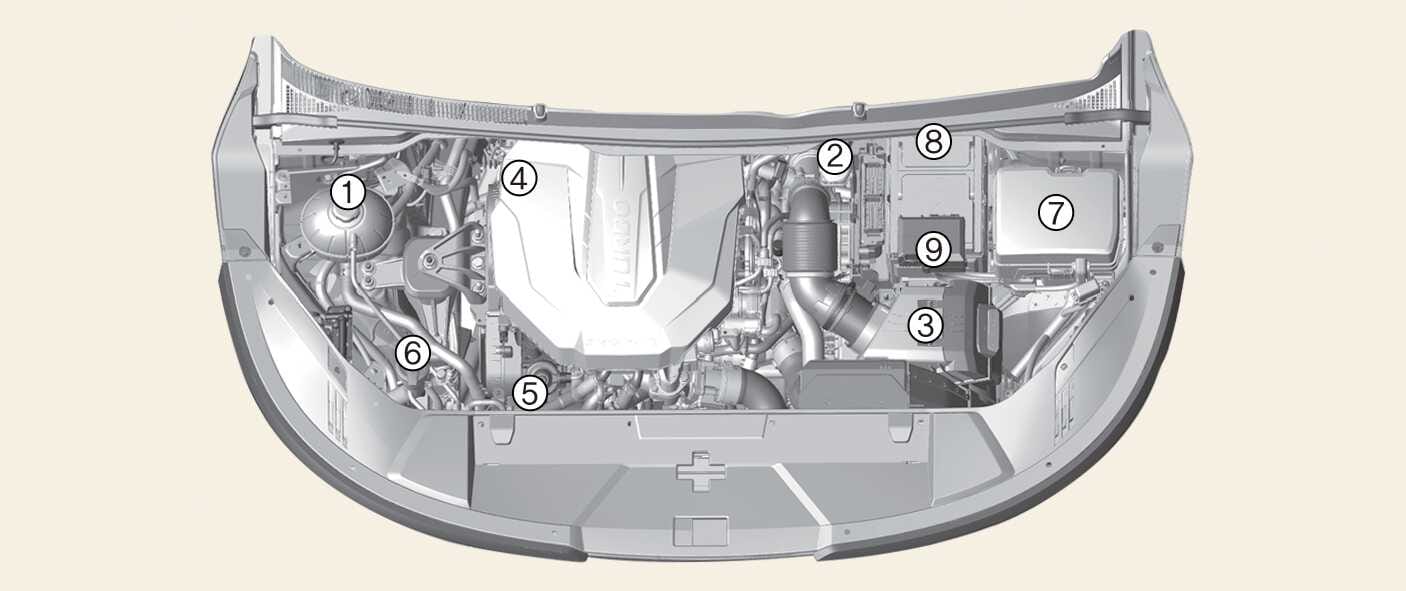

Figure 2. Smartstream D2.2 (Diesel)
OKA4073021L

The actual engine compartment in your Kia may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake fluid

  3. Air cleaner Air cleaner

  4. Engine oil filler cap Engine oil (Petrol), Engine oil (Diesel)

  5. Engine oil dipstick Engine oil (Petrol), Engine oil (Diesel)

  6. Windscreen washer fluid reservoir Washer fluid

  7. Fuse box Fuse/relay panel description

  8. Negative battery terminal Jump-starting, Battery

  9. Positive battery terminal Jump-starting, Battery
