Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

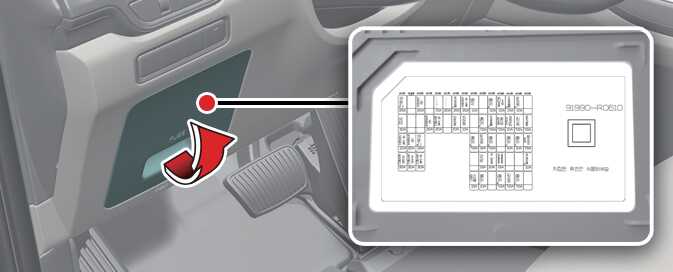

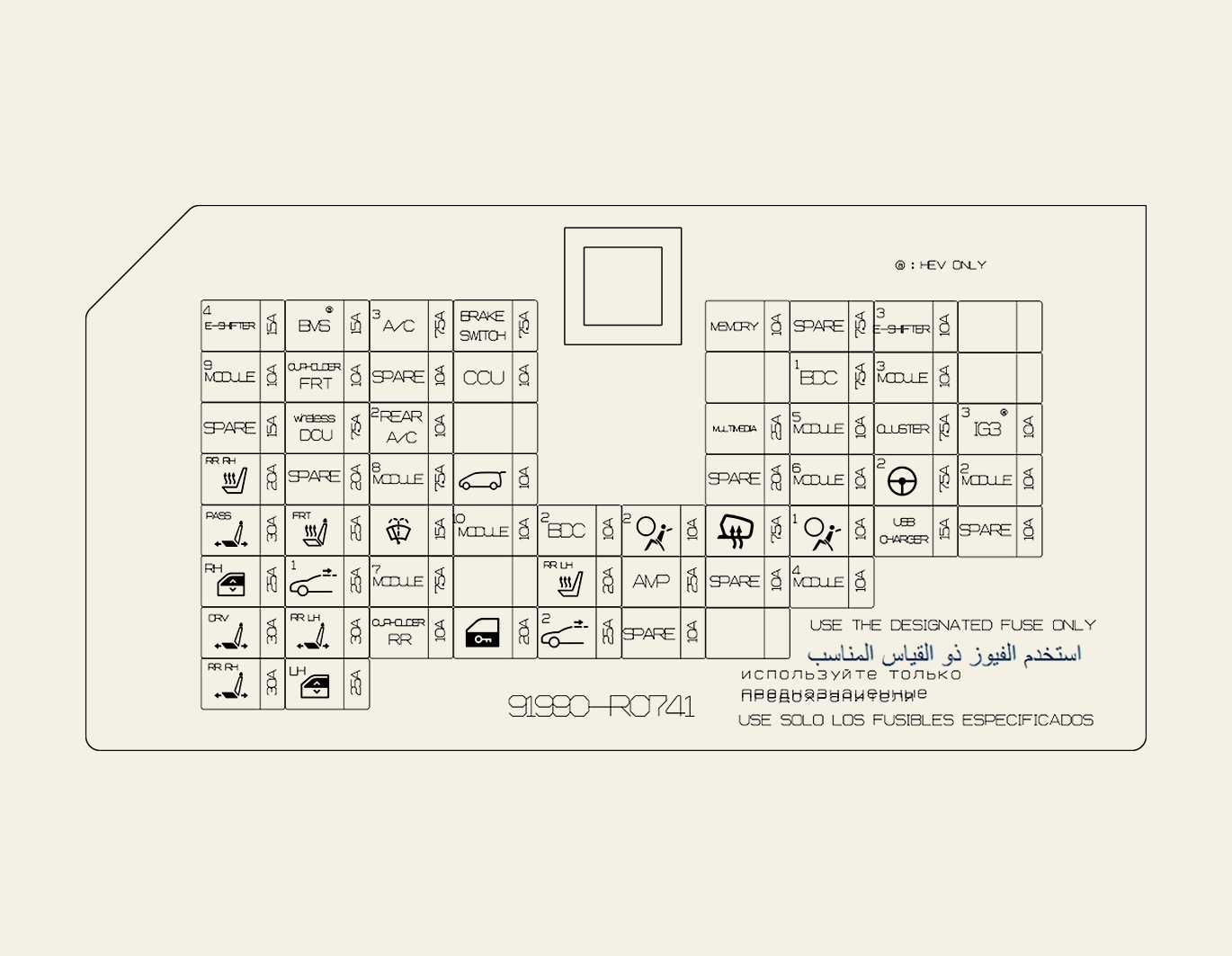

Driver's side fuse panel
 OKA4073005 |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
E-SHIFTER 4 |
15A |
SCU (Shift-by-wire Control Unit) (B+) |
|
BATTERY MANAGEMENT |
15A |
Not Used (HEV ONLY) |
|
A/C 3 |
7.5A |
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junc-tion Block(Front Blower Relay, PTC Heater2 Relay) |
|
BRAKE SWITCH |
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
MEMORY |
10A |
Instrument Cluster, DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Advanced Driver Assistance Systems Parking ECU, Crash Pad Switch, Console Switch (Upper), Built-in Cam Unit, Rear A/C Control Switch, Mood Lamp Module, BDC (Body Domain Controller) |
|
SPARE |
7.5A |
Not Used |
|
E-SHIFTER 3 |
10A |
SCU (Shift-by-wire Control Unit) (IG1) |
|
RESERVE |
10A |
RESERVE |
|
MODULE 9 |
10A |
ETCS( Electronic Toll Collection System), Key Inter Lock Solenoid, FRONT TRAY USB INDICATOR, Hazard Switch, ATM (Automatic Transmission) Shift Lever, Rain Sensor |
|
CUPHOLDER FRT |
10A |
FRT_CUP |
|
SPARE |
10A |
Not Used |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
RESERVE |
7.5A |
RESERVE |
|
BDC 1 |
7.5A |
BDC (Body Domain Controller) (IG1) |
|
MODULE 3 |
10A |
DCU (Data Connectivity Unit), CCU (Central Communication) Unit, DAU (Door Area Unit) |
|
RESERVE |
10A |
RESERVE |
|
SPARE |
15A |
Not Used |
|
Wireless DCU |
7.5A |
DCU (Data Connectivity Unit) (B+) |
|
REAR A/C 2 |
10A |
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), ENgine Room Junction Block(Rear Blower Realy) |
|
RESERVE |
15A |
RESERVE |
|
MULTIMEDIA |
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MODULE5 |
10A |
ETCS (Electronic Toll Collection System), I_S_MIRR_DCM (Digital Centre Mirror), I_S_MIRR_ECM (Electronic Chromic Mirror), DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), CCNC (Connected Car Navigation Cockpit), Built-in Cam Unit, FRONT TRAY WIRELESS CHARGER, Front Console (FPM Finger Print Module), Power Window Switch RL/RH, AMP (Amplifier) (BOSE), Head Lamp Module LH/RH |
|
CLUSTER |
7.5A |
Instrument Cluster, HUD (Head-Up Display) |
|
IG3 3 |
10A |
Not Used (HEV ONLY) |
|
REAR RH S/HEAT |
20A |
2nd Seat Warmer Control Module, 2nd Seat RH Air Ventilation Control Module |
|
SPARE |
20A |
Not Used |
|
MODULE 8 |
7.5A |
AC Inverter Module, AC Inverter (Rear), ENgine Room Junction Block(Windscreen Heated Glass 1/2 Relay), Powernet Domain Controller extended, 20AH(20HR)[BATTERY LITHIUM TYPE-SUB] |
|
TAIL GATE |
10A |
Tail Gate Open Relay |
|
SPARE |
20A |
Not Used |
|
MODULE 6 |
10A |
Overhead Console Indicator, Powernet Domain Controller extended |
|
MDPS 2 |
7.5A |
MDPS (Motor Driven Power Steering) |
|
MODULE 2 |
10A |
AMP (Amplifier) (BOSE), Air Cleaner, DCU (Data Connectivity Unit) Advanced Driver Assistance Systems Parking ECU, Built-in Cam Unit, BDC (Body Domain Controller), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch |
|
PASSENGER P/SEAT |
30A |
Passenger Walk-In Module, Passenger Power Seat Switch |
|
FRONT S/HEAT |
25A |
Front Seat Warmer Control Module, Front Seat Air Ventilation Control Module |
|
WASHER |
15A |
Multi Function Switch |
|
MODULE 10 |
10A |
Power Tail Gate Module, Driver/Passenger Door Outside Handle Antenna, Front Air Ventilation Seat Control Module, 2nd Seat LH/RH Relax Module |
|
BDC 2 |
10A |
BDC (Body Domain Controller) (B+), DAU (Door Area Unit), Driver/Passenger Door Outside Handle Antenna, Ultra WideBand & Bluetooth Low Energy MASTER/SLAVE, Ultra WideBand Front LH/RH, Ultra WideBand Rear LH/RH |
|
AIR BAG 2 |
10A |
ACU (Airbag Control Unit), ODS (Occupant Detection System) |
|
HEATED MIRROR |
7.5A |
Driver/Passenger Outside Handle |
|
AIR BAG 1 |
10A |
Airbag Control Unit (IG1) |
|
USB CHARGER |
15A |
Driver/Passenger Seat USB Charger, Luggage USB Charger LH, Luggage USB Charger Unit, FRONT TRAY USB CHARGER |
|
SPARE |
10A |
Not Used |
|
PASSENGER P/WINDOW |
25A |
Rear Power Window Switch RH, Rear Safety Power Window Module RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
|
SUNROOF 1 |
25A |
Front Sunroof Motor |
|
MODULE 7 |
7.5A |
BDC (Body Domain Controller) (IG2) |
|
RESERVE |
10A |
RESERVE |
|
REAR LH S/HEAT |
20A |
2nd Seat Warmer Control Module, 2nd Seat LH Air Ventilation Control Module |
|
AMP |
25A |
AMP (Amplifier) (BOSE) |
|
SPARE |
10A |
Not Used |
|
MODULE 4 |
10A |
Crash Pad Switch, Advanced Driver Assistance Systems Parking ECU, Front/Rear Corner Radar LH/RH, Front View Camera, Console Switch (Upper) |
|
DRIVER P/SEAT |
30A |
Driver IMS(Integrated Memory System) Control Module, Driver Power Seat Switch |
|
REAR LH P/SEAT |
30A |
2nd Seat LH Relax Module |
|
CUPHOLDER RR |
10A |
RR_CUP |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER |
|
SUNROOF 2 |
25A |
Rear Sunroof Motor |
|
SPARE |
10A |
Not Used |
|
RESERVE |
7.5A |
RESERVE |
|
REAR RH P/SEAT |
30A |
2nd Seat RH Relax Module |
|
DRIVER P/WINDOW |
25A |
Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Switch, Driver Safety Power Window Module |
1. MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

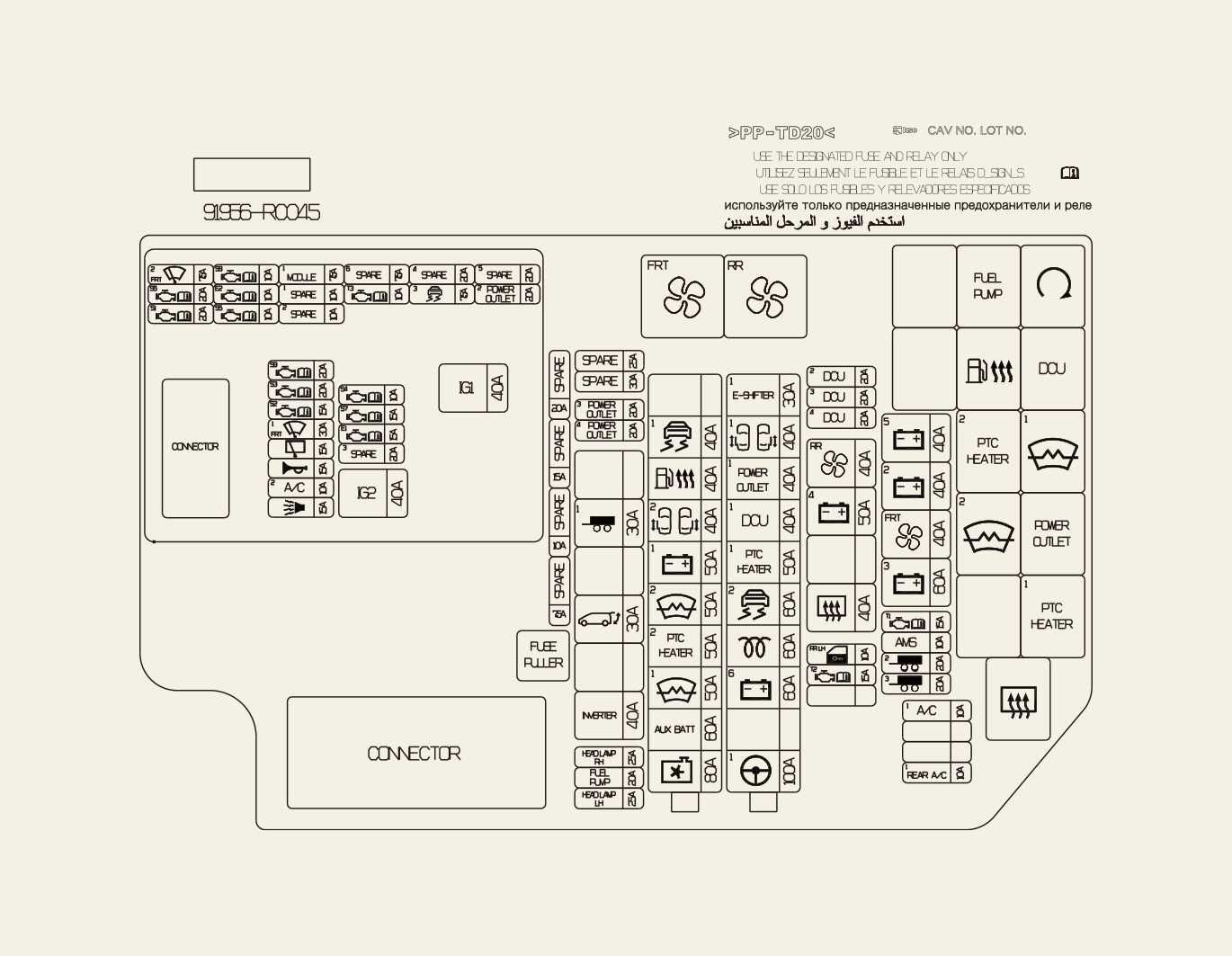

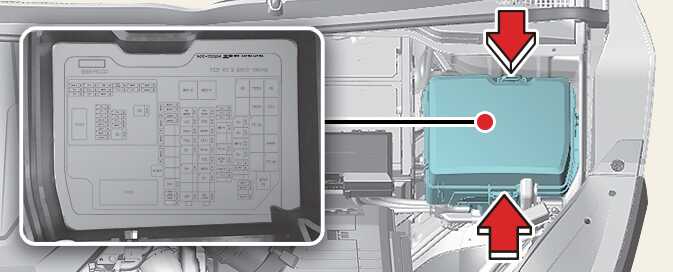

Engine compartment fuse panel
 OKA4073006 |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
COOLING FAN |
MULTI 80A |
Cooling Fan Motor |
|
AUX BATT |
MULTI 60A |
Parking Lithium Battery |
|
W/S HEATED GLASS1 |
MULTI 50A |
Front Heated Glass LH |
|
PTC HEATER2 |
MULTI 50A |
Positive Temperature Coefficient Heater2 |
|
W/S HEATED GLASS2 |
MULTI 50A |
Front Heated Glass RH |
|
B+1 |
MULTI 50A |
PDC JUNCTION BLOCK (IPS) |
|
PSD2 |
MULTI 40A |
Power Sliding Door2 |
|
FUEL HEATER |
MULTI 40A |
Fuel Heater Relay |
|
ESC1 |
MULTI 40A |
ECS1 (ELECTRONIC STABILITY CONTROL) |
|
- |
MULTI 30A |
NOT USED |
|
MDPS1 |
MULTI 100A |
MDPS Unit (Motor Driven Power Steering Unit) |
|
- |
MULTI 80A |
NOT USED |
|
B+6 |
MULTI 60A |
POWER (AFTER MAIN RELAY) |
|
GLOW |
MULTI 60A |
[Smartstream D2.2] Glow Control Unit |
|
ESC2 |
MULTI 60A |
ECS2 (ELECTRONIC STABILITY CONTROL) |
|
PTC HEATER1 |
MULTI 50A |
Positive Temperature Coefficient Heater1 |
|
DCU1 |
MULTI 40A |
DCU (Data Connectivity Unit) |
|
POWER OUTLET1 |
MULTI 40A |
POWER OUTLET3, POWER OUTLET4 |
|
PSD1 |
MULTI 40A |
Power Sliding Door1 |
|
E-SHIFTER1 |
MULTI 30A |
SCU (Shift-by-wire Control Unit) |
|
B+3 |
S/B LP 60A |
PDC JUNCTION BLOCK(E-SHIFTER, P/SEAT RH, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, S/ HEATER RH, S/HEATER FRT, P/SEAT REAR LH, SUNROOF, S/HEATER REAR RH, MASSAGE SEAT RR, WIRELESS DCU, CUPHOLER FRT, MODULE9 |
|
BLOWER |
S/B LP 40A |
Front Blower Motor |
|
B+2 |
S/B LP 40A |
PDC JUNCTION BLOCK(IPS) |
|
B+5 |
S/B LP 40A |
PDC JUCTION BLOCK(AMP, AIG BAG2, MODULE10, MULTIMEDIA2, CUPHOLDER REAR) |
|
BLOWER RR |
S/B LP 40A |
Rear Blower Motor |
|
B+4 |
S/B LP 50A |
PDC JUNCTION BLCOK(LONG TERM LATCH RELAY, SHORT TERMLOAD, BDC2, BRAKE SWITCH, SUNROOF2, S/HEATER RR LH, DR LOCK, TAILGATE LATCH) |
|
- |
- |
NOT USED |
|
REAR HEATED |
S/B LP 40A |
REAR HEATED GLASS, O/S MIRROR HEATED GLASS |
|
INVERTER |
S/B M 40A |
Inverter |
|
- |
- |
NOT USED |
|
POWER TAILGATE |
S/B M 30A |
Power Tail Gate Module |
|
- |
- |
NOT USED |
|
TRAILER1 |
S/B M 30A |
Trailer Connector |
|
- |
- |
NOT USED |
|
HEAD LAMP RH |
MICRO 25A |
Head Lamp Module RH |
|
AMS |
MICRO 10A |
12V Battery Sensor |
|
TCU2 |
MICRO 15A |
TRANSMISSION CONTROL UNIT |
|
DOOR LOCK RRLH |
MICRO 10A |
DOOR LOCK REAR LH |
|
- |
- |
NOT USED |
|
FUEL PUMP |
MICRO 20A |
Fuel Pump Relay |
|
HEAD LAMP LH |
MICRO 25A |
Head Lamp Module LH |
|
TRAILER2 |
MICRO 20A |
Trailer Connector |
|
TCU1 |
MICRO 15A |
TRANSMISSION CONTROL UNIT |
|
TRAILER3 |
MICRO 20A |
Trailer Connector |
|
REAR A/C1 |
MICRO 10A |
REAR Air Conditioning |
|
- |
- |
NOT USED |
|
DCU2 |
MICRO 20A |
[Smartstream D2.2] Dosing Control Module |
|
DCU3 |
MICRO 20A |
[Smartstream D2.2] Dosing Control Module |
|
DCU4 |
MICRO 20A |
[Smartstream D2.2] Dosing Control Module |
|
A/C1 |
MICRO 10A |
Air Conditioning |
|
- |
- |
NOT USED |
|
POWER OUTLET3 |
MICRO 20A |
Front Power Outlet |
|
POWER OUTLET4 |
MICRO 20A |
Rear Power Outlet |
|
SPARE |
MICRO 7.5A |
NOT USED |
|
SPARE |
MICRO 10A |
NOT USED |
|
SPARE |
MICRO 15A |
NOT USED |
|
SPARE |
MICRO 20A |
NOT USED |
|
SPARE |
MICRO 25A |
NOT USED |
|
SPARE |
MICRO 30A |
NOT USED |
1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
ECU1 |
MICRO 15A |
ENGINE CONTROL UNIT |
|
SPARE3 |
MICRO 20A |
NOT USED |
|
SENSOR1 |
MICRO 20A |
[Smartstream D2.2] Rail Pressure Control Valve [Smartstream G3.5] Ignition Coil #1/#2/#3/#4/#5/#6 |
|
SENSOR2 |
MICRO 15A |
[Smartstream D2.2] Lambda Sensor [Smartstream G3.5] Oxygen Sensor |
|
SENSOR3 |
MICRO 20A |
ECU POWER |
|
SENSOR9 |
MICRO 20A |
[Smartstream D2.2] Fuel Metering Valve [Smartstream G3.5] ECU POWER |
|
SENSOR4 |
MICRO 10A |
O2 UP,DOWN SENSOR, OCV, CCV, PSCV, VOP, VIS(LAM)STOP SW, E_THERMO(NEW R) |
|
SENSOR5 |
MICRO 10A |
Fuel Pump Relay, Fuel Heater Relay |
|
SENSOR6 |
MICRO 20A |
PM (Particulate Matter) Sensor, Front Nox Sensor, Rear Nox Sensor [Smartstream G3.5] ECU POWER |
|
SENSOR7 |
MICRO 15A |
INJECTOR(LAM) E-VGT, EGR-COOLING, OIL PUMP SOL, PTC BREATHER(NEW R) |
|
A/C2 |
MICRO 10A |
A/C Compressor Relay |
|
HORN |
MICRO 15A |
Horn Relay |
|
B/ALARM HORN |
MICRO 15A |
Burglar Alarm Horn Relay |
|
WIPER FRT1 |
MICRO 30A |
Front Wiper Relay |
|
WIPER FRT2 |
MICRO 7.5A |
FRONT WIPER |
|
WIPER RR |
MICRO 15A |
Rear Wiper Relay |
|
IG2 |
S/B LP 40A |
PDC BLOCK (IG2 REALY) |
|
IG1 |
S/B LP 40A |
PDC BLOCK (IG1 REALY) |
|
POWER OUTLET2 |
MICRO 20A |
Luggage Power Outlet2 |
|
SPARE5 |
MICRO 20A |
NOT USED |
|
ECU2 |
MICRO 10A |
ENGINE CONTROL UNIT IGNITION |
|
SENSOR8 |
MICRO 10A |
GCU IGNITION |
|
SPARE2 |
MICRO 10A |
NOT USED |
|
ESC3 |
MICRO 7.5A |
ECS2 (ELECTRONIC STABILITY CONTROL) |
|
MODULE1 |
MICRO 7.5A |
DISEL FILTER HEATER IGNITON |
|
SPARE6 |
MICRO 7.5A |
NOT USED |
|
TCU3 |
MICRO 10A |
TCM (Transmission Control Module) |
|
SPARE1 |
MICRO 10A |
NOT USED |
|
SPARE4 |
MICRO 20A |
NOT USED |
Refer to the following table for the relay type.
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
BLOWER |
3725 MINI 4P |
FRT BLOWER |
|
BLOWER RR |
3725 MINI 4P |
RR BLOWER |
|
DCU |
H/C MICRO 4P |
DCU |
|
START |
H/C MICRO 4P |
START #1 |
|
FUEL PUMP |
H/C MICRO 4P |
FUEL PUMP |
|
REAR HEATED |
H/C MICRO 4P |
REAR HEATED |
|
FUEL HEATER |
H/C MICRO 4P |
FUEL FILTER HEATING |
|
- |
- |
NOT USED |
|
PTC HEATER1 |
H/C MICRO 4P |
PTC HEATER #1 |
|
PTC HEATER2 |
H/C MICRO 4P |
PTC HEATER #2 |
|
POWER OUTLET |
H/C MICRO 4P |
POWER OUTLET |
|
W/S HEATED GLASS1 |
H/C MICRO 4P |
W/S HEATED GLASS #1 |
|
W/S HEATED GLASS2 |
H/C MICRO 4P |
W/S HEATED GLASS #2 |
|
- |
- |
NOT USED |
|
- |
- |
NOT USED |

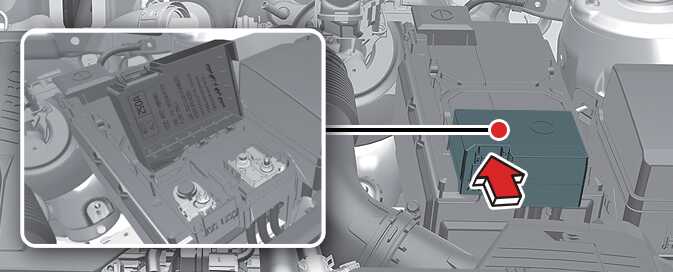

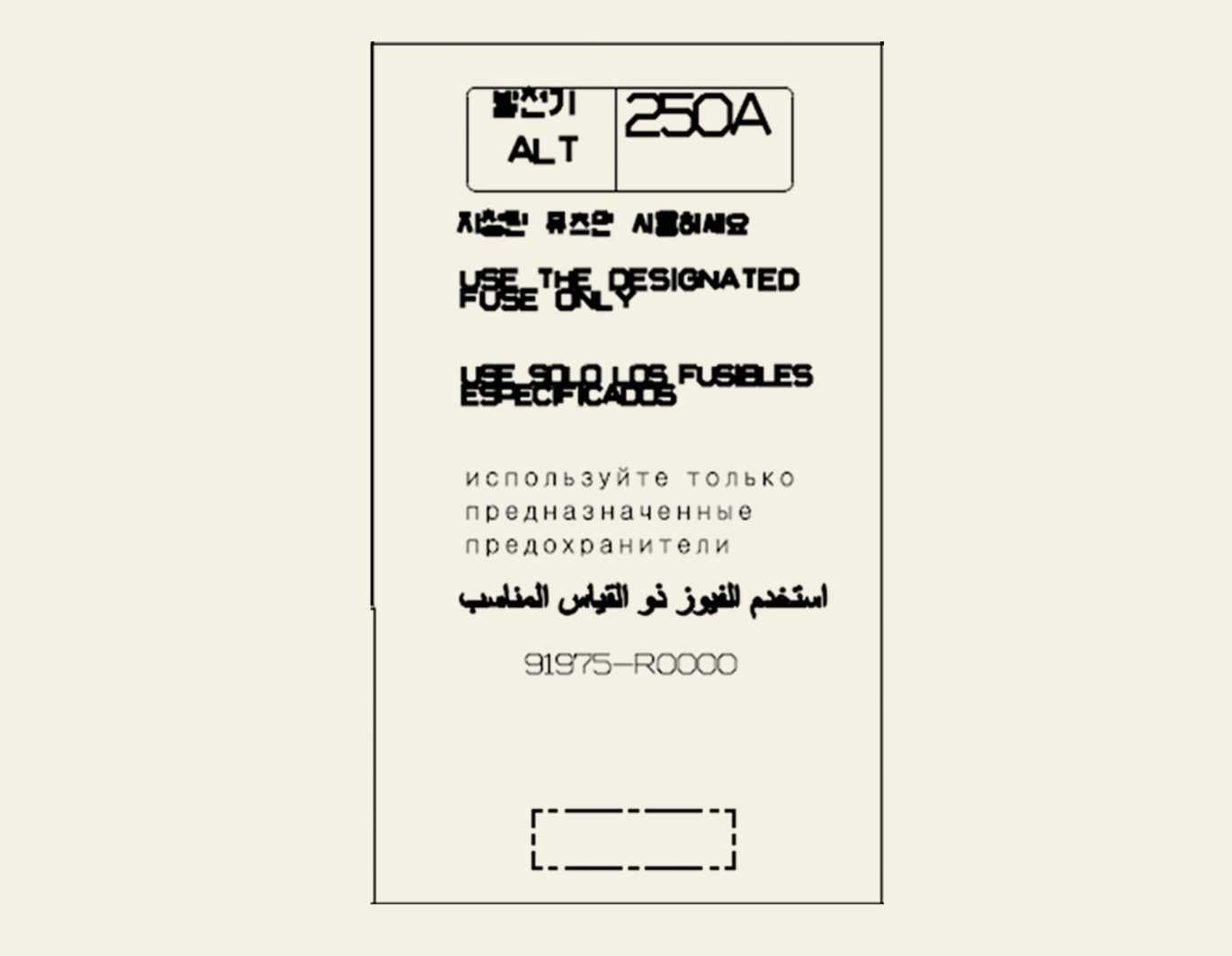

Engine compartment fuse panel (Battery terminal cover)
 OKA4073004 |
