Removal and re-installation

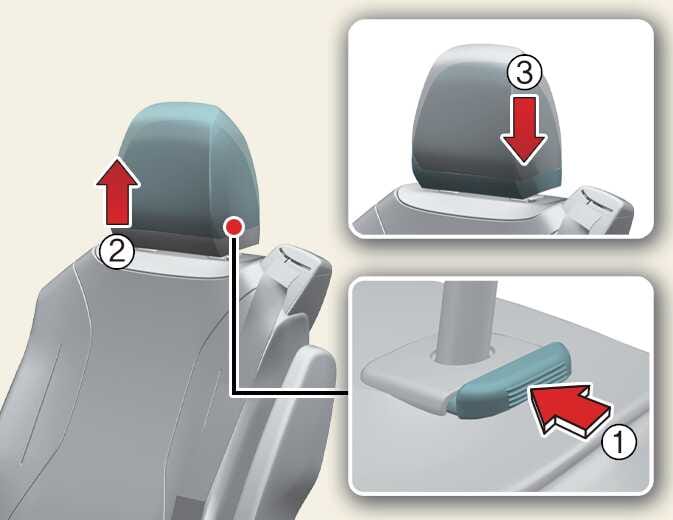

Figure 1. 2nd row seat (for 7,8 seats)
OKA4H023066_2

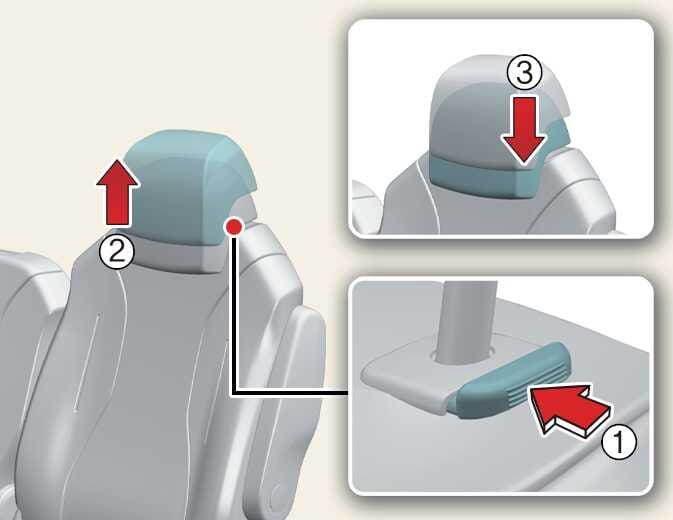

Figure 2. 2nd row, 3rd row seat (for 11 seats)
OKA4H023065_2

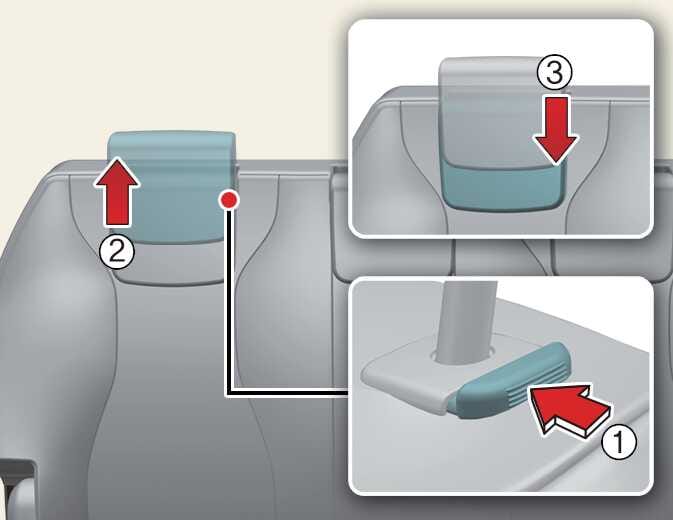

Figure 3. 3rd row seat (for 7,8 seats)
OKA4H023067_2

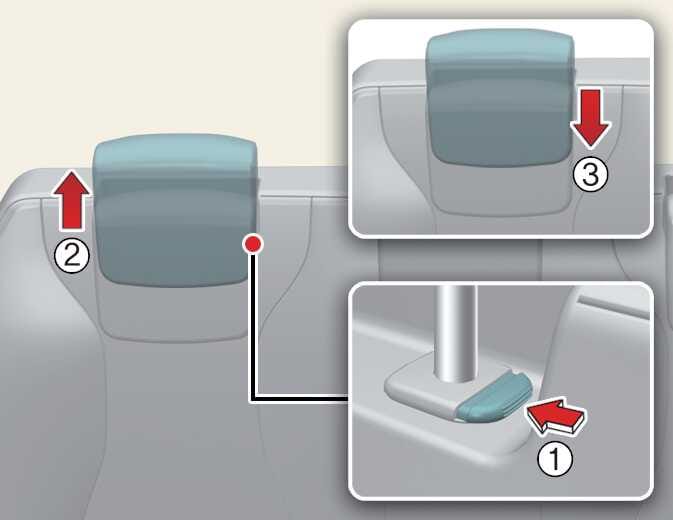

Figure 4. 4th row seats (for 11 seats)
OKA4023028L

To remove the headrest:

  1. Raise it as far as it can go then press the release button (1) whilst pulling the headrest up (2).

To reinstall the headrest:

  1. Put the headrest poles (3) into the holes whilst pressing the release button (1).

  2. Adjust it to the appropriate height.

Make sure the headrest locks in position after adjusting it to properly protect the occupants.

After installing the headrest, make sure that it is installed in the right direction.

A headrest installed reversely could increase whiplash injury during rear impact.
