Seat belt - 3-point system with emergency locking retractor
Fastening the seat belt

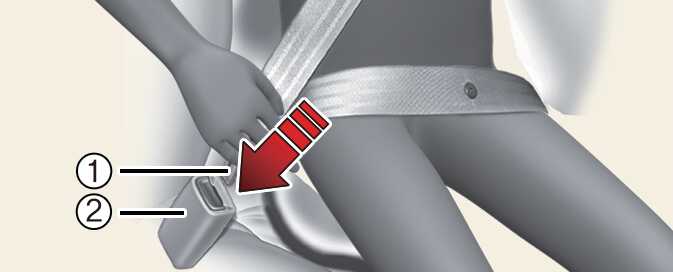

 OCV031125N |
|
-
To fasten your seat belt, pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.
The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly.
If you are not able to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.
You should place the lap belt portion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustration.

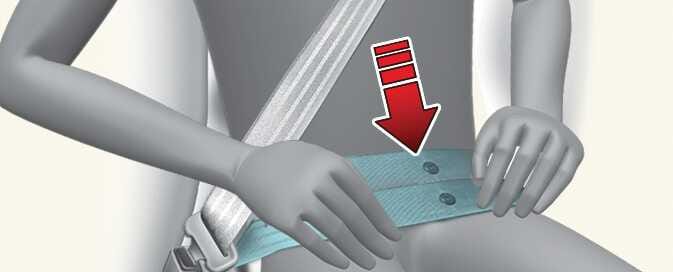

 ONQ5021041 |
Never wear the seat belt under the arm near the door.
The seat belt should be locked into the buckle on each seat cushion to be properly fastened.

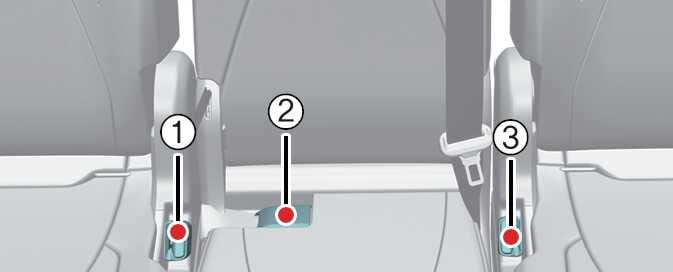

 OKA4023030L |
|
The 2nd-row centre seat is only available in 8 seating positions.

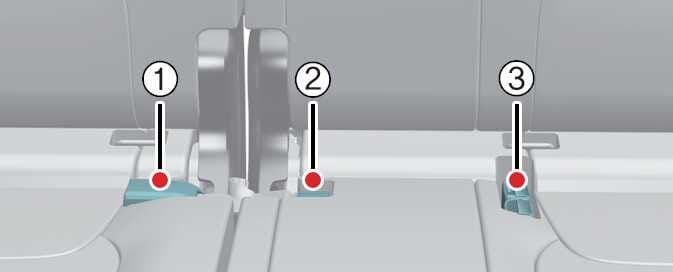

 OKA4023031L |

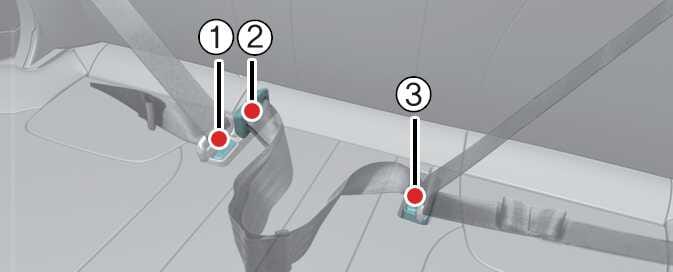

 OKA4023032L |
-
Rear right seat belt fastening buckle
-
Rear centre seat belt fastening buckle
-
Rear left seat belt fastening buckle
Do not forcefully lock the left or right seat belt latch into the centre seatbelt buckle. This may cause damage to the centre buckle and prevent the buckle from properly latching in the future.
When using the rear centre seat belt, the buckle with the "CENTER" mark must be used.

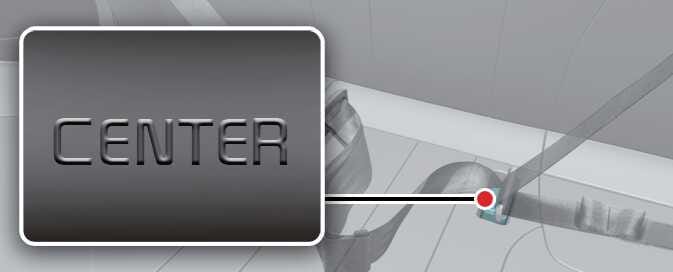

 OKA4023033L |
Prior to fastening the rear seat belts, ensure the latch matches the seat belt buckle. Forcefully fastening the left or right seat belt to the centre buckle can result in an improper fastening scenario that will not protect you in an accident.
Releasing the seat belt

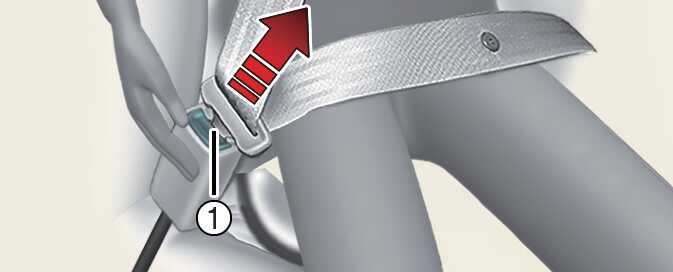

 OCV031126N |
-
Press the release button (1) in the locking buckle.
When it is released, the belt should automatically draw back into the retractor.
If this does not happen, check the belt to be sure it is not twisted, then try again.
