Front windscreen wiper blade

OKA4H074022R

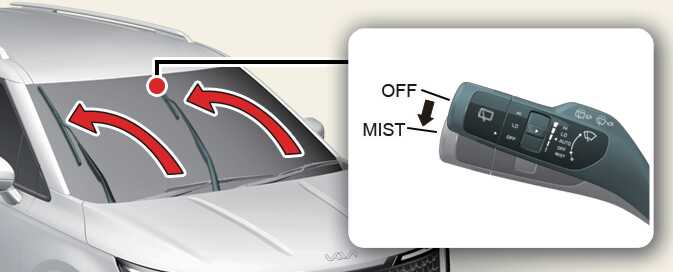

For your convenience, move the windscreen wiper blades to the service position as follows;

After turning off the engine, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the fully up position.

CAUTION

Do not allow the wiper arm to fall against the windscreen, since it may chip or crack the windscreen.

Type A

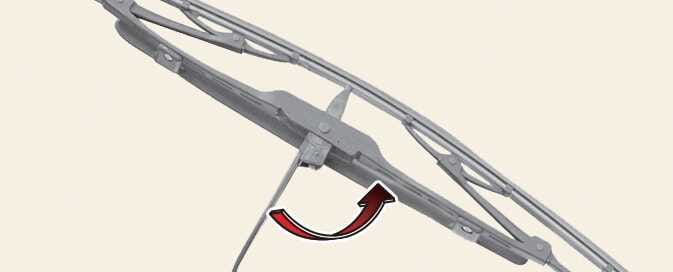

  1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

    OKA4073026L
    CAUTION

    Wiper arms

    Do not allow the wiper arm to fall against the windscreen, since it may chip or crack the windscreen.

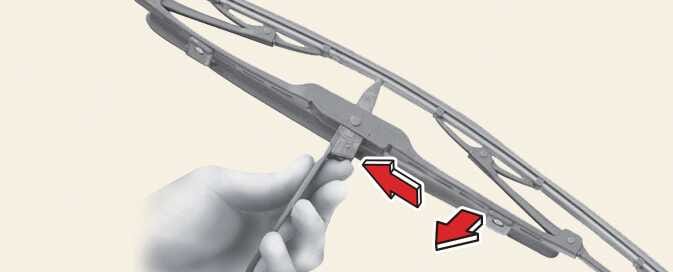

  2. Compress the clip and slide the blade assembly downward.

    OKA4073027L

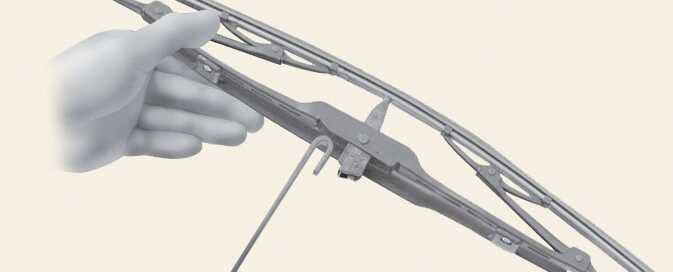

  3. Lift it off the arm.

  4. Install the blade assembly in the reverse order of removal.

    OKA4073028L

Type B

  1. Raise the wiper arm.

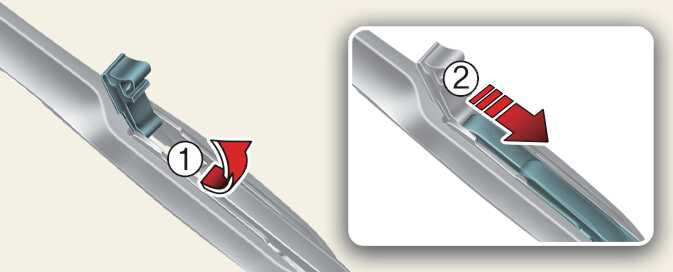

  2. Lift the wiper blade clip. Then pull down the blade assembly and remove it.

    OKA4H073023

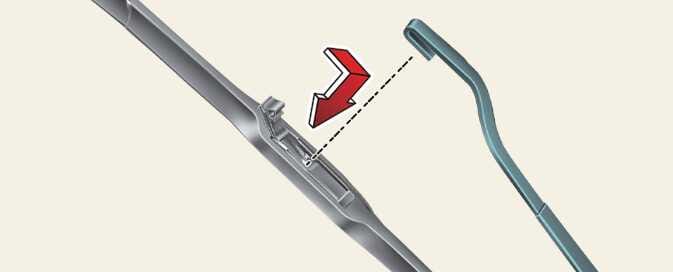

  3. Install the new blade assembly.

    OKA4H073024

  4. Return the wiper arm on the windscreen.

  5. Turn the ignition switch or ENGINE START/STOP button to the ON position and wiper arms will return to the normal operating position.
