Replacing lights (LED type)

If the LED lamp is not functioning, please have your vehicle serviced by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

CAUTION

If the high-mounted stop lamp (LED) is not functioning, have your vehicle serviced by a professional workshop. Kia recommends visiting an authorised Kia dealer/service partner. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, please have your vehicle inspected by an authorised Kia dealer.

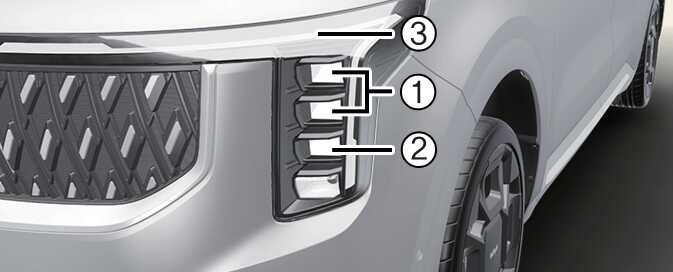

Figure 1. Type A
OKA4076042L

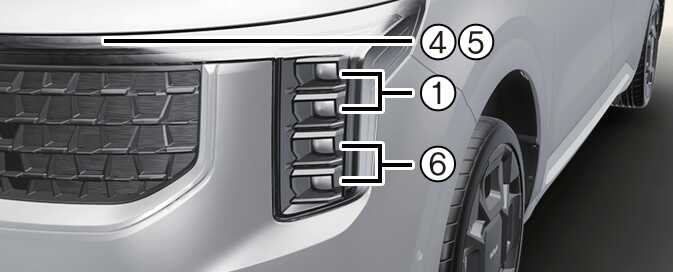

Figure 2. Type B
OKA4076041L
OKA4076052L

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Day time running lamp (LED type)/Position Lamp (LED type)

  4. Front turn signal lamp (LED type)

  5. Headlamp (High)/ Headlamp (Sub low) (LED type)

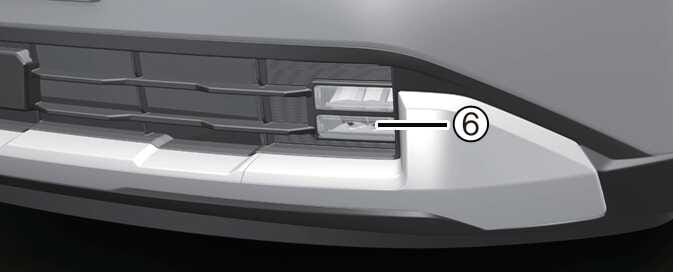

  6. Front fog lamp (LED type): (if equipped)

Replacing side repeater lamp (LED type)

If the side repeater lamp is not functioning, please have your vehicle inspected by an authorised Kia dealer.

OKA4H073036

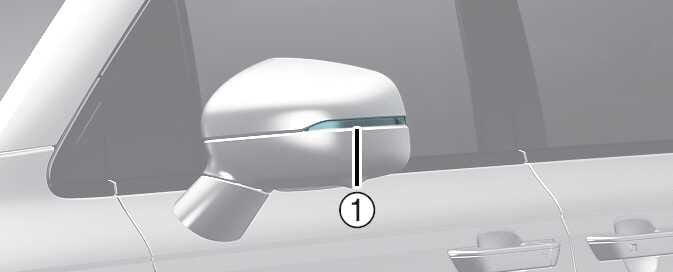

  1. Side repeater lamp (LED type)

Replacing rear lights (LED type)

If the rear lights are not functioning, please have your vehicle inspected by an authorised Kia dealer.

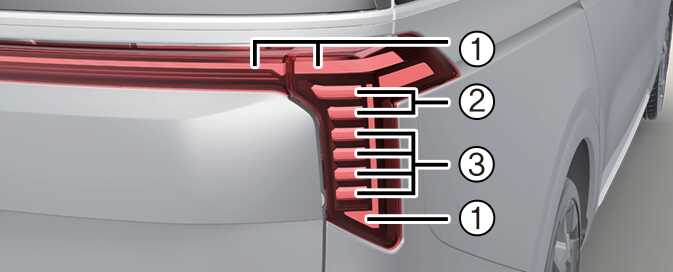

OKA4076046L
OKA4076048L
OKA4076049L

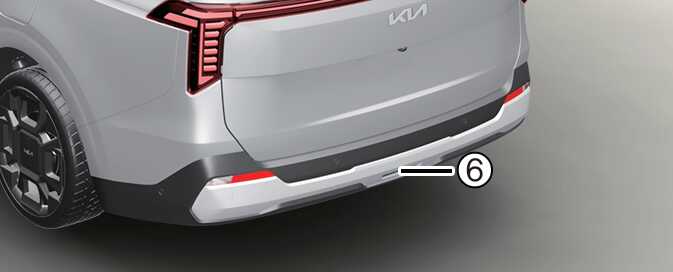

OKA4076040L

  1. Tail lamp/Stop lamp (LED type)

  2. Stop lamp (LED type)

  3. Rear trun signal lamp (LED type)

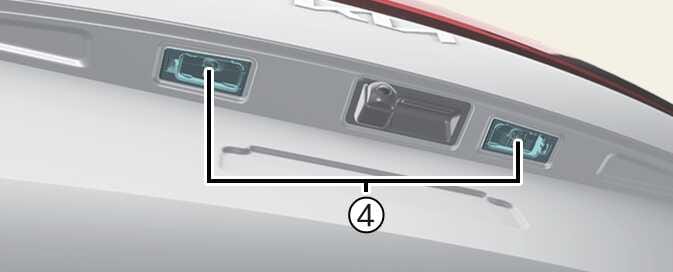

  4. License plate lamp (LED type)

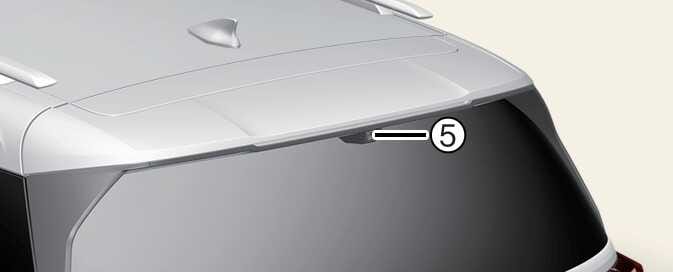

  5. High mounted stop lamp (LED type)

  6. Rear fog lamp (LED type): (if equipped)

Replacing interior lights (LED type)

If the interior lights are not functioning, please have your vehicle inspected by an authorised Kia dealer.

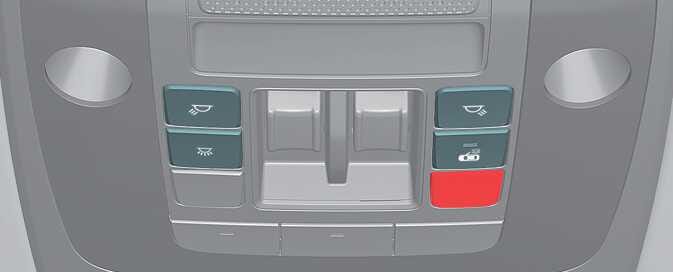

Figure 3. Map lamp
OKA4036093L

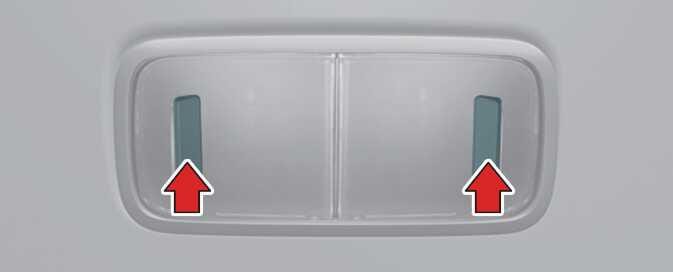

Figure 4. Room lamp
OKA4033095

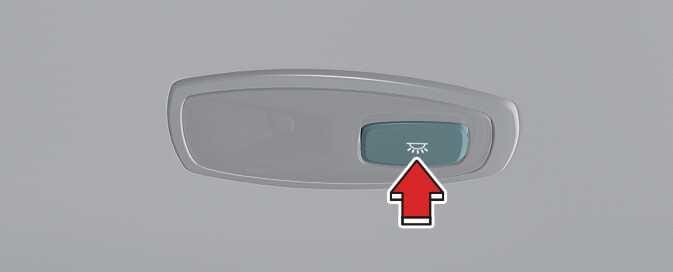

Figure 5. Personal lamp (if equipped)
OKA4033096

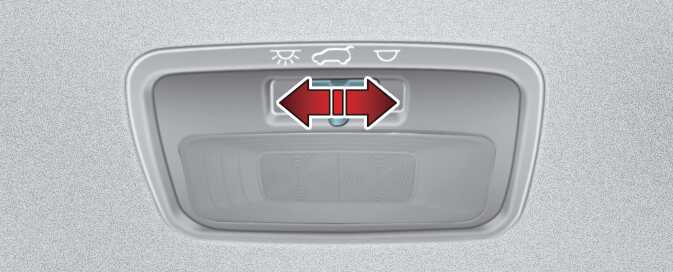

Figure 6. Luggage lamp
OKA4033098
