Instrument cluster

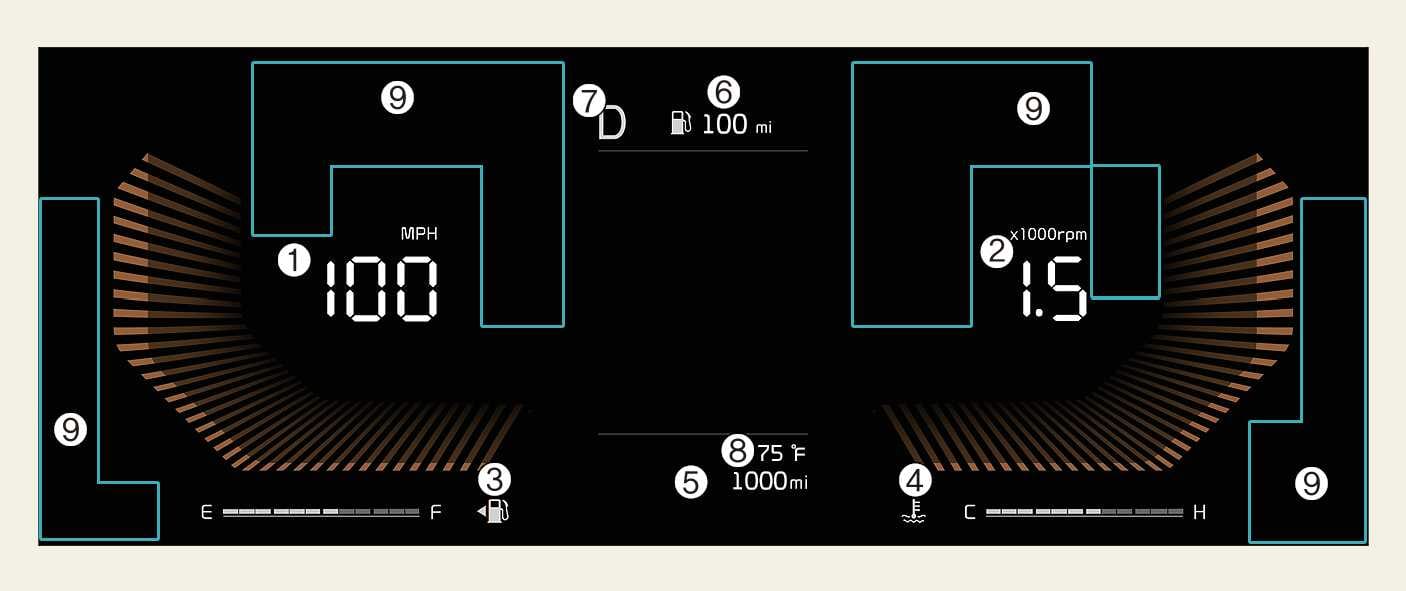

Figure 1. Type A
ODL3034110N

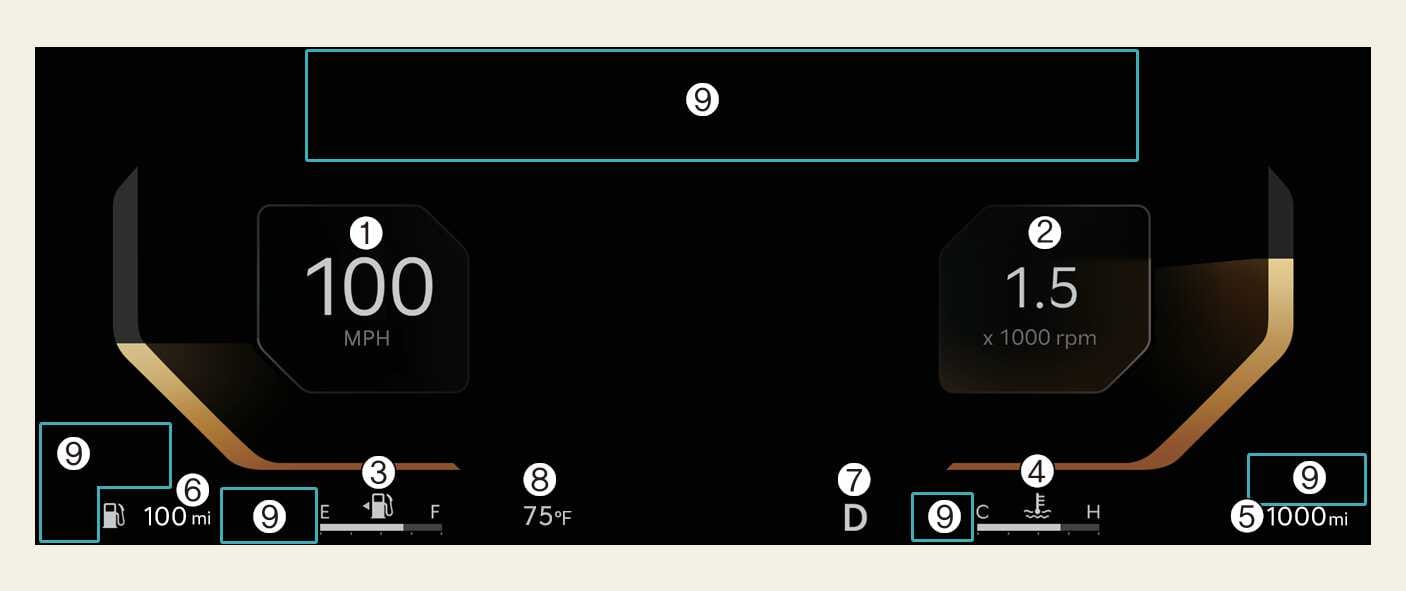

Figure 2. Type B
ODL3034109N

The actual cluster in your Kia may differ from the illustration.

  1. Speedometer

  2. Tachometer

  3. Fuel gauge

  4. Engine coolant temperature gauge

  5. Odometer

  6. Distance to empty

  7. Transmission shift indicator (if equipped)

  8. Outside temperature gauge

  9. Warning and indicator lights
