Lighting control

The light switch has a headlamp and a position lamp position.

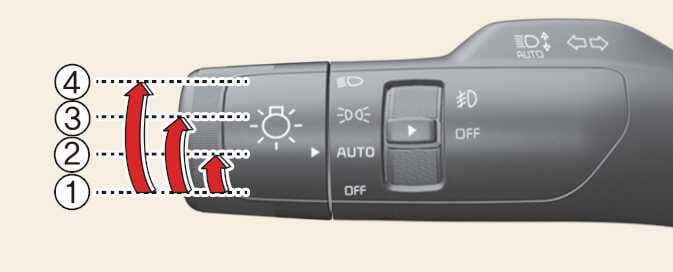

OMQ4033400

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

  1. OFF

  2. Auto light

  3. Position & Taillamp

  4. Headlamp

Position & Taillight

OMQ4033402

When the light switch is in the position lamp position, the front position lamp, taillight, and the license plate lamp will turn ON.

Headlight (Low Beam)

OMQ4033403

When the light switch is in the headlight position, headlight (low beam), tail, license plate light will turn ON.

NOTE

The ENGINE START/STOP button must be in the ON position to turn on the headlights.

Auto light

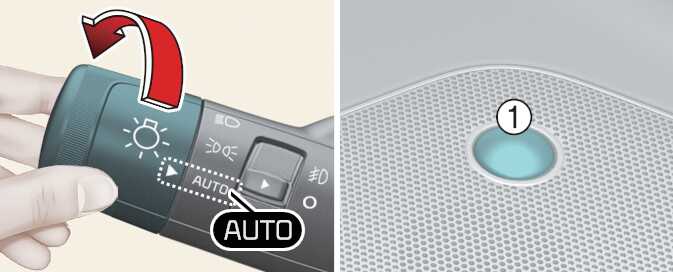

OMQ4033401_2

When the light switch is in the AUTO light position, the taillamps and headlamps will turn ON or OFF automatically depending on the amount of light outside the vehicle.

CAUTION

  • Do not place anything over the sensor (1) located on the instrument panel. Objects will interfere with the auto-light system control.

  • Don't clean the sensor using a window cleaner, the cleaner may leave a light film which could interfere with sensor operation.

  • If your vehicle has window tint or other types of metallic coating on the front windshield, the Auto light system may not work properly.
