Removal and reinstallation

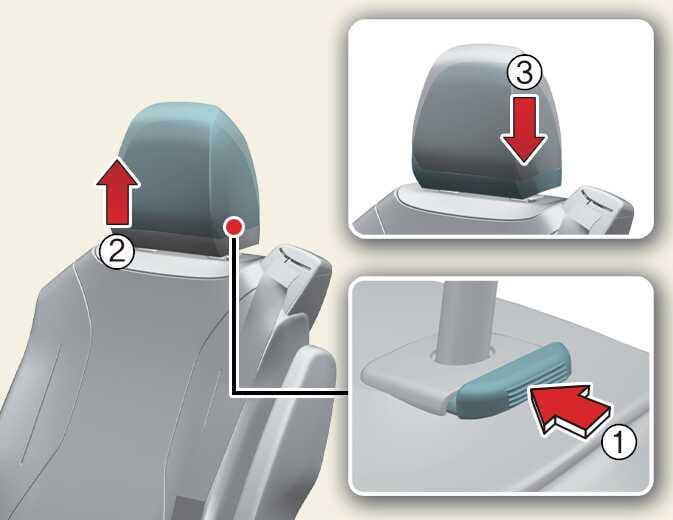

Figure 1. 2nd row seat
OKA4H023066_2

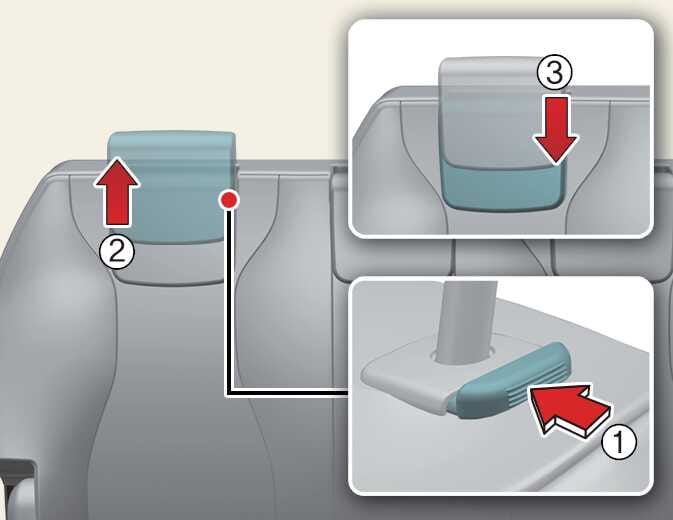

Figure 2. 3rd row seat
OKA4H023067_2

To remove the headrest:

  1. Raise it as far as it can go then press the release button (1) while pulling the headrest up (2).

To reinstall the headrest:

  1. Put the headrest poles (3) into the holes while pressing the release button (1).

  2. Adjust it to the appropriate height.

Make sure the headrest locks in position after adjusting it to properly protect the occupants.

After installing the headrest, make sure that it is installed in the right direction.

A headrest installed reversely could increase whiplash injury during rear impact.

WARNING

Make sure the headrest locks in position after adjusting it to properly protect the occupants.
