3-point rear center belt (3rd row center seat)

To fasten the rear center belt

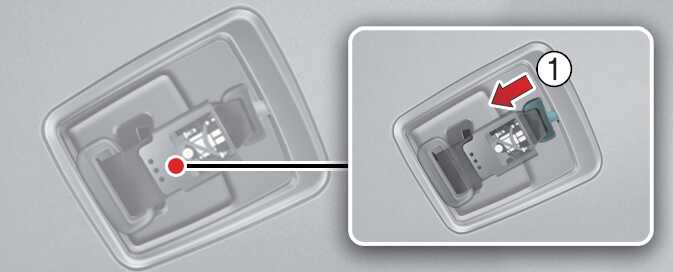

  1. Pull out the mini tongue from hole on the belt assembly cover (1) and then slowly pull the seat belt out from the retractor.

    OKA4023034L

  2. Pull out the tongue plate from the holder on the seat belt (2).

    OKA4023035L

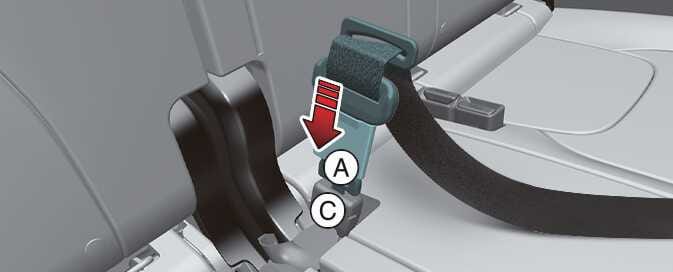

  3. Insert the mini tongue (A) into the open end of the anchor connector (C) until an audible "click" is heard, indicating the latch is locked. Make sure the belt is not twisted.

    OKA4H023111

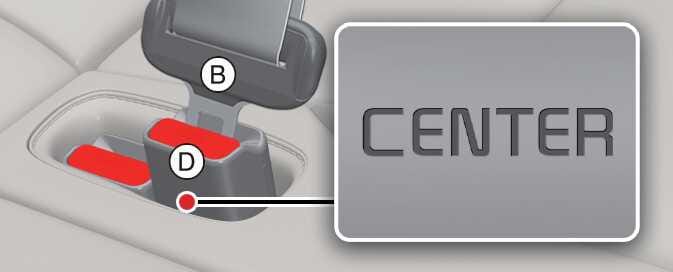

  4. Pull the tongue plate (B) and insert the tongue plate (B) into the open end of the buckle (D) until an audible “click” is heard, indicating the latch is locked. Make sure the belt is not twisted.

    OKA4H023112

When using the rear center seat belt, the buckle with the “CENTER” mark must be used.

Pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (emergency locking retractor type).

WARNING

When using the rear seat center belt, you must lock all tongue plates and buckles. If any tongue plate or buckle is not locked, it will increase the chance of injury in the event of collision.

To unfasten the rear center belt

  1. Press the release button on the buckle (D) and remove the tongue plate (B) from the buckle (D).

    OKA4H023112

  2. To retract the rear center seatbelt, insert the tongue plate or similar small rigid device into the web release hole (C). Pull up on the seat belt web (A) and allow the webbing to retract automatically.

    OKA4H023111

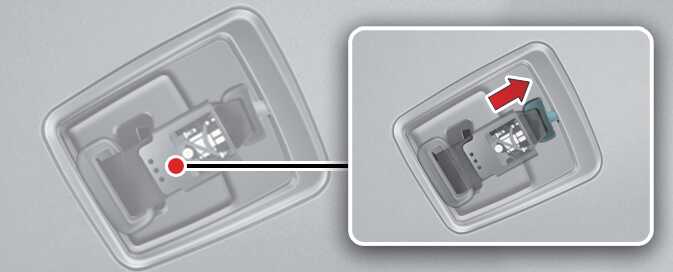

  3. Insert the tongue plate into the holder (1) in seat belt and then insert the mini tongue into the hole on the belt assembly cover.

    OKA4023036L
    OKA4023037L
