Map lamp

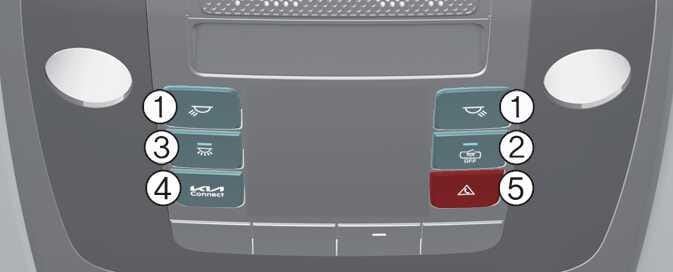

Figure 1. Type A
OKA4034481N

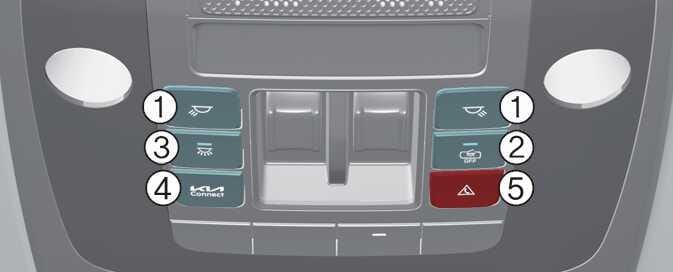

Figure 2. Type B
OKA4034482N

  • (1): Turn on and off the interior lights independently.

  • (2): DOOR mode

    • The map lamp and interior lamps illuminate when a door is opened. The lamps go out after approximately 30 seconds. (without pressing the DOOR button (2))

    • The map lamp and interior lamps come on for approximately 30 seconds when doors are unlocked with a smart key if the doors are not opened.

    • The map lamp and interior lamps will stay on for approximately 10 minutes if a door is opened and the ENGINE START/STOP button in the ACC or OFF position.

    • The map lamp and interior lamps will stay on continuously if the door is opened and the ENGINE START/STOP button in the ON position.

    • The map lamp and interior lamps will turn off immediately if the ENGINE START/STOP button is changed to the ON position or all doors are locked.

    • To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).

    • The rear room lamp cannot be operated separately if the 1st row DOOR mode button is pressed.

  • (3): Press this switch to turn the front and rear interior lamps on and off.

For Telematics function

  • (4): Kia Connect (Voice local search) button

  • (5): Roadside assist button

NOTE

  • The DOOR mode and ROOM mode can not be selected at a time.

  • Be sure to keep The DOOR mode unpressed to freely turn the rear room lamp on and off.

    Figure 3. Map lamp
    OKA4034483N
    Figure 4. Interior lamps
    OKA4033095
