Replacing lights (LED type)

If the LED lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

If the high-mounted stop lamp (LED) is not functioning, please have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, please have your vehicle inspected by an authorized Kia dealer.

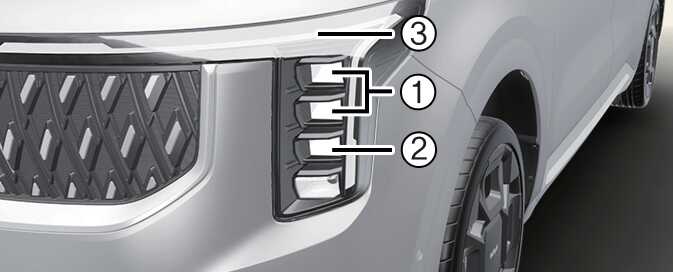

Figure 1. Type A
OKA4076042L

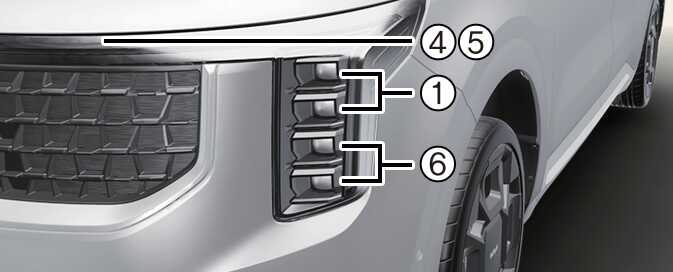

Figure 2. Type B
OKA4076041L
OKA4076052L

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Sub Headlamp (Low) (LED type)

  4. Day time running lamp (LED type)

  5. Front turn signal lamp (LED type)

  6. Front fog lamp (LED type)

  7. Front side marker (LED type)

Replacing side repeater lamp (LED type)

If the side repeater lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer.

OKA4H073036

  1. Side repeater lamp (LED type)

Replacing rear lights (LED type)

If the rear lights are not functioning, please have your vehicle inspected by an authorized Kia dealer.

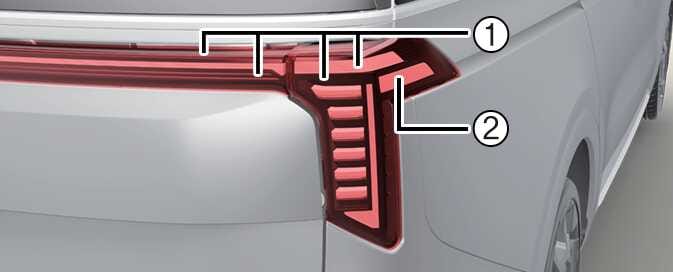

OKA4076061N
OKA4076049N

  1. Tail and Stop lamp (LED type)

  2. Tail and Stop lamp / Rear turn signal lamp / Rear side marker (LED type)

  3. High mounted stop lamp (LED type)

Replacing interior lights (LED type)

If the interior lights are not functioning, please have your vehicle inspected by an authorized Kia dealer.

Figure 3. Map lamp
OKA4036093L
Figure 4. Room lamp
OKA4033095
Figure 5. Personal lamp (if equipped)
OKA4033096
Figure 6. Luggage lamp
OKA4033098
