Ground View Monitor (GVM): (if equipped)

Ground View Monitor (GVM) helps drivers check the road conditions and avoid obstacles by providing a clear view of the front lower part of the vehicle through the monitor. Also, it supports safe driving and parking in a tight space.

Detecting sensor

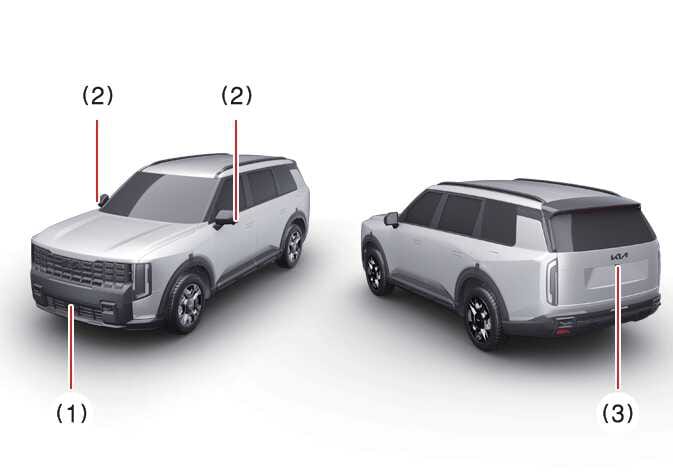

OLQ2AXL095001_2

  1. Wide-front view camera

  2. Wide-side view camera (under the exterior mirror)

  3. Wide-rear view camera

Refer to the picture for the detailed location of the detecting sensor.

Ground View Monitor (GVM) operation

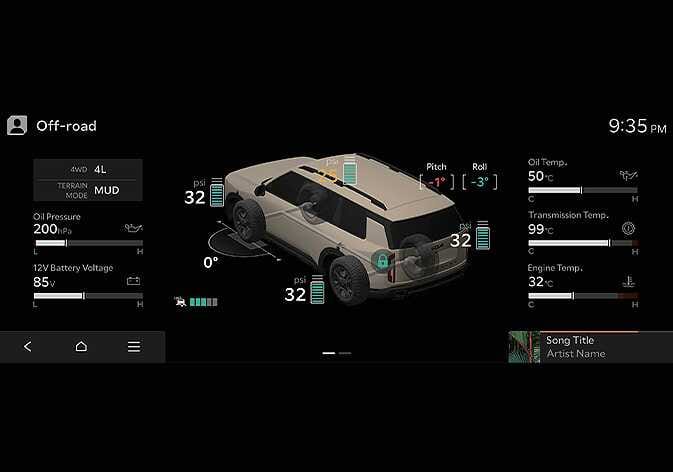

OLQ2A005103

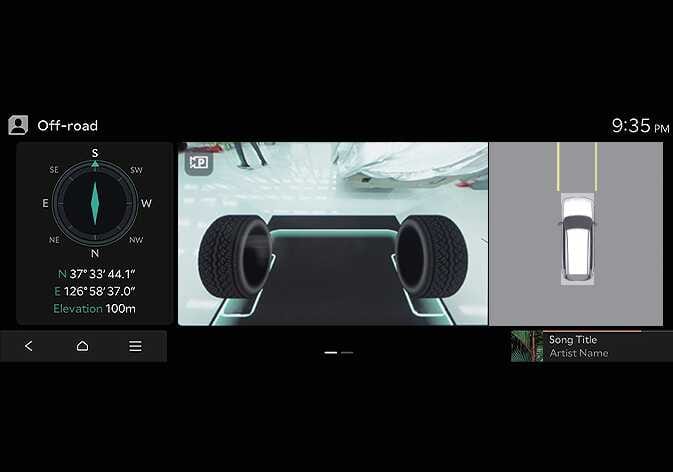

OLQ2A005118

Swipe left in the Off-road menu on the infotainment system screen to access the Ground View Monitor.

In the Off-road menu, the Ground View Monitor will be turned off under the following conditions:

  • Shifting to R (Reverse)

  • Pressing the Parking/View button in the top left corner of the Ground View infotainment system screen

  • Pressing the back button in the Off-road menu or the Home button on the infotainment system screen

  • Pressing the Parking/View button or the infotainment system power button

TIP

  • When the vehicle speed exceeds 6 mph (10 km/h), the Ground View Monitor turns off and reactivates when the speed drops to 6 mph (10 km/h) or below.

  • The ground view image resets 10 seconds after the vehicle stops and shifted to P (Park) or D (Drive).

  • When the Ground View Monitor is active, the Surround View Monitor does not turn on automatically, even if the Parking Distance Warning is activated.

  • The ground view image resets when shifting to N (Neutral).

Ground View Monitor (GVM) malfunction and limitations

Malfunction

If the Ground View Monitor malfunctions, the screen may appear green, blue, gray, or black.

When Ground View Monitor is not working properly, the screen flickers, or the camera image does not display normally, have your vehicle checked by an authorized Kia dealer.

Limitations

The screen may be displayed abnormally under the following circumstances:

  • When the liftgate is opened

  • When the driver or front passenger door is opened

  • When the side view mirror is folded

  • If the wheel size is arbitrarily changed, the ground view may not operate normally.

  • Ground View Monitor may not operate normally when driving in an environment where wheels may slip, such as snow or black ice.

TIP

For Ground View Monitor malfunctions and limitations, refer to the Surround View Monitor malfunction and limitations.
