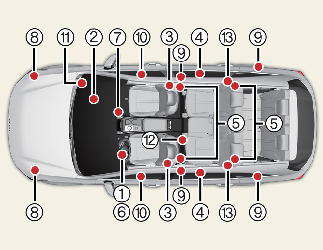

SRS components and functions
-
Driver's front air bag module
-
Passenger's front air bag module
-
Front side air bag modules*
-
Curtain air bag modules*
-
Retractor pre-tensioner assemblies*
-
Air bag warning light
-
SRS control module (SRSCM)/rollover sensor*
-
Front impact sensors
-
Side impact sensors*
-
Side pressure sensors*
-
Passenger's front air bag ON/OFF switch*
-
Driver's center air bag module*
-
2nd row seat side airbag module*
* The actual features in your vehicle may not necessarily be available due to the selected options or regions.
* : if equipped
Operating conditions
-
The SRS air bag warning light on the instrument panel will appear for about 6 seconds after the ignition switch or ENGINE START/STOP button is turned to the ON position, after which the air bag warning light should go out.
If any of the following conditions occur, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.
-
The light does not turn on briefly when you turn the vehicle ON.
-
The light stays on after illuminating for approximately 6 seconds.
-
The light comes on while the vehicle is in motion.
-
The light blinks when the ignition switch or ENGINE START/STOP button is in ON position.
