Automatic heating and air conditioning (A/C) operation

  1. Press the icon.

    The modes, fan speeds, air intake, and air-conditioning are controlled automatically by setting the temperature.

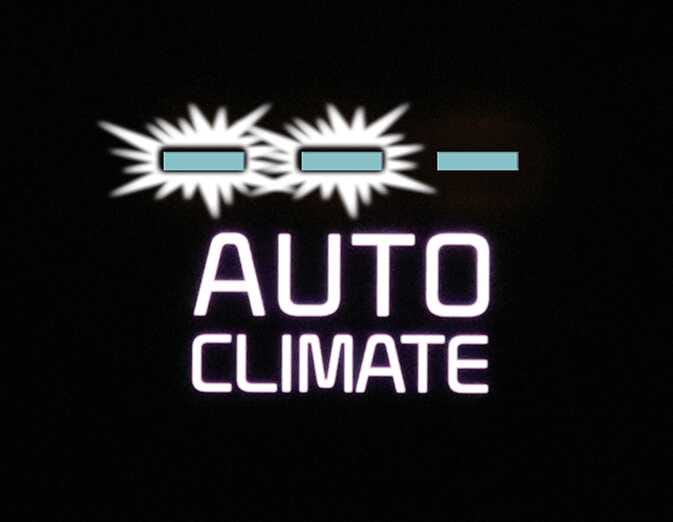

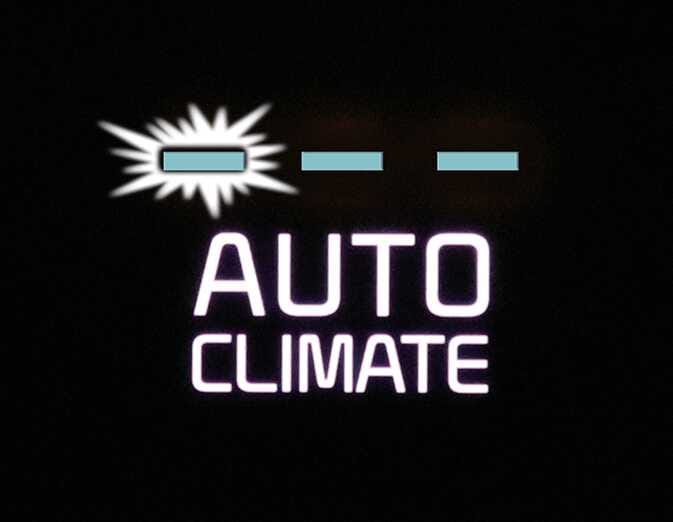

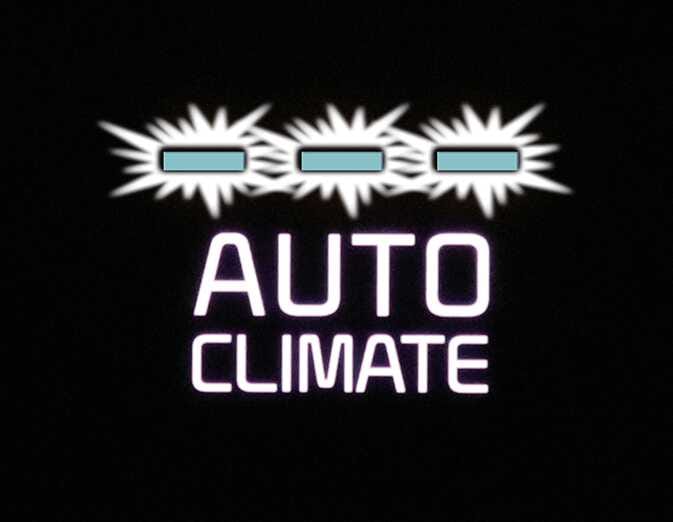

    Level

    Indicator

    LCD Display

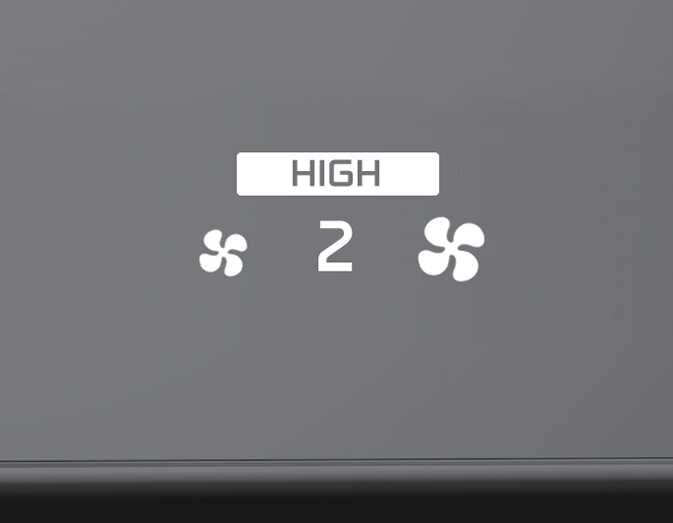

    Air flow

    High

    2–8

    Medium

    1–6

    Low

    1–4

  2. Turn the temperature control knob to the desired temperature.

TIP

  • To turn the automatic operation off, press any of the following buttons:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button

      Press the button again to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.

    • Fan speed control knob

    The selected function is controlled manually, while other functions operate automatically.

  • To improve the effectiveness of the climate control, press the AUTO button and set the temperature to 72 °F (22 °C).

TIP

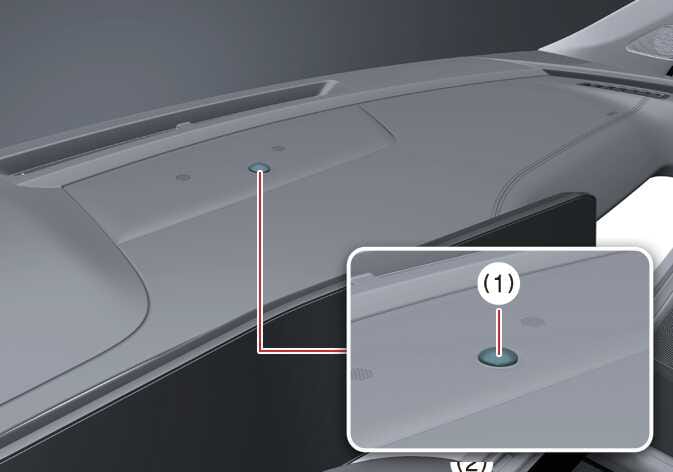

For better control of the heating and cooling system, never place anything over the sensor (1) located on the instrument panel.

OMQ4A035005
