Detecting sensor(s)

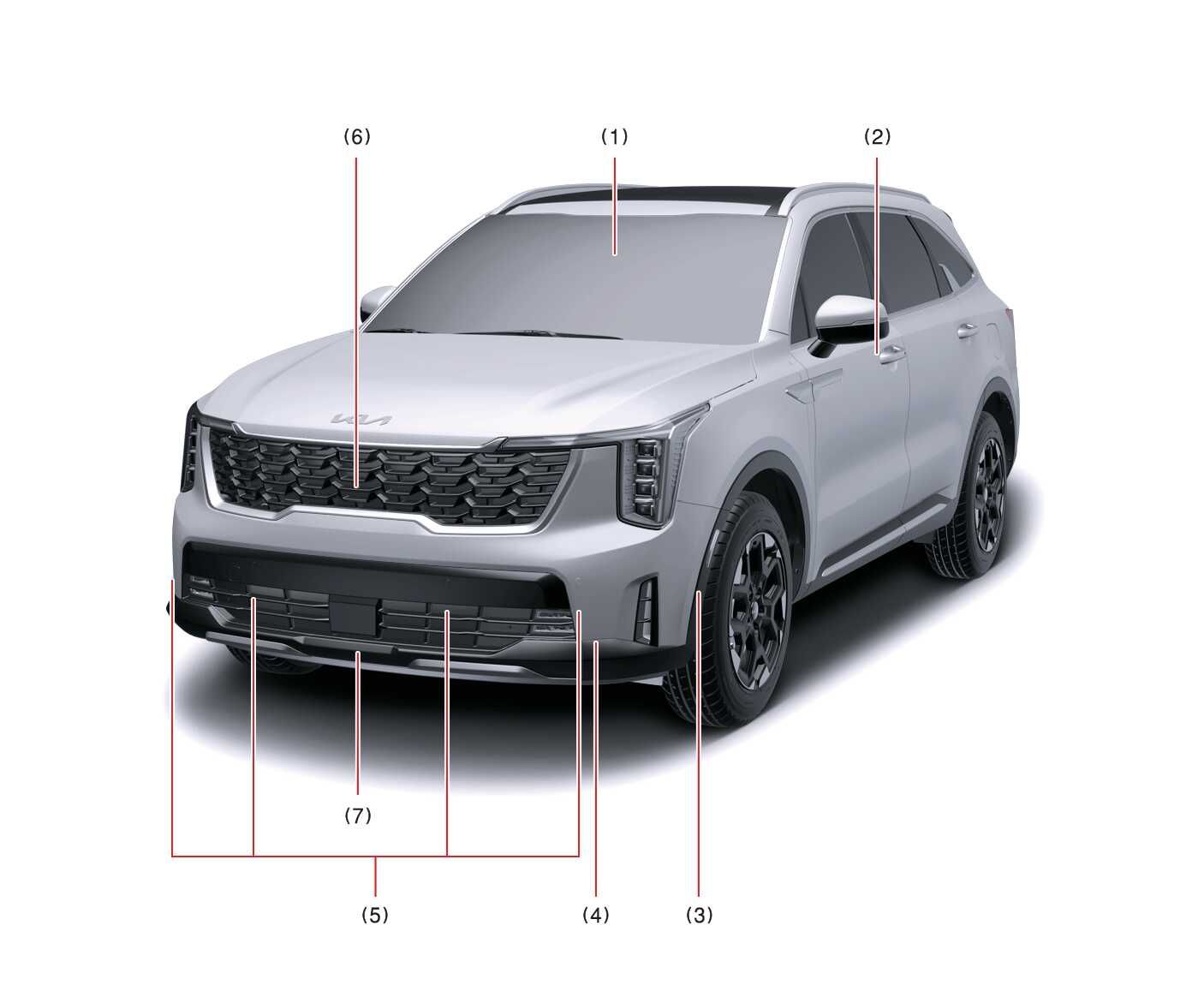

Figure 1. Front view
OMQ4A015016

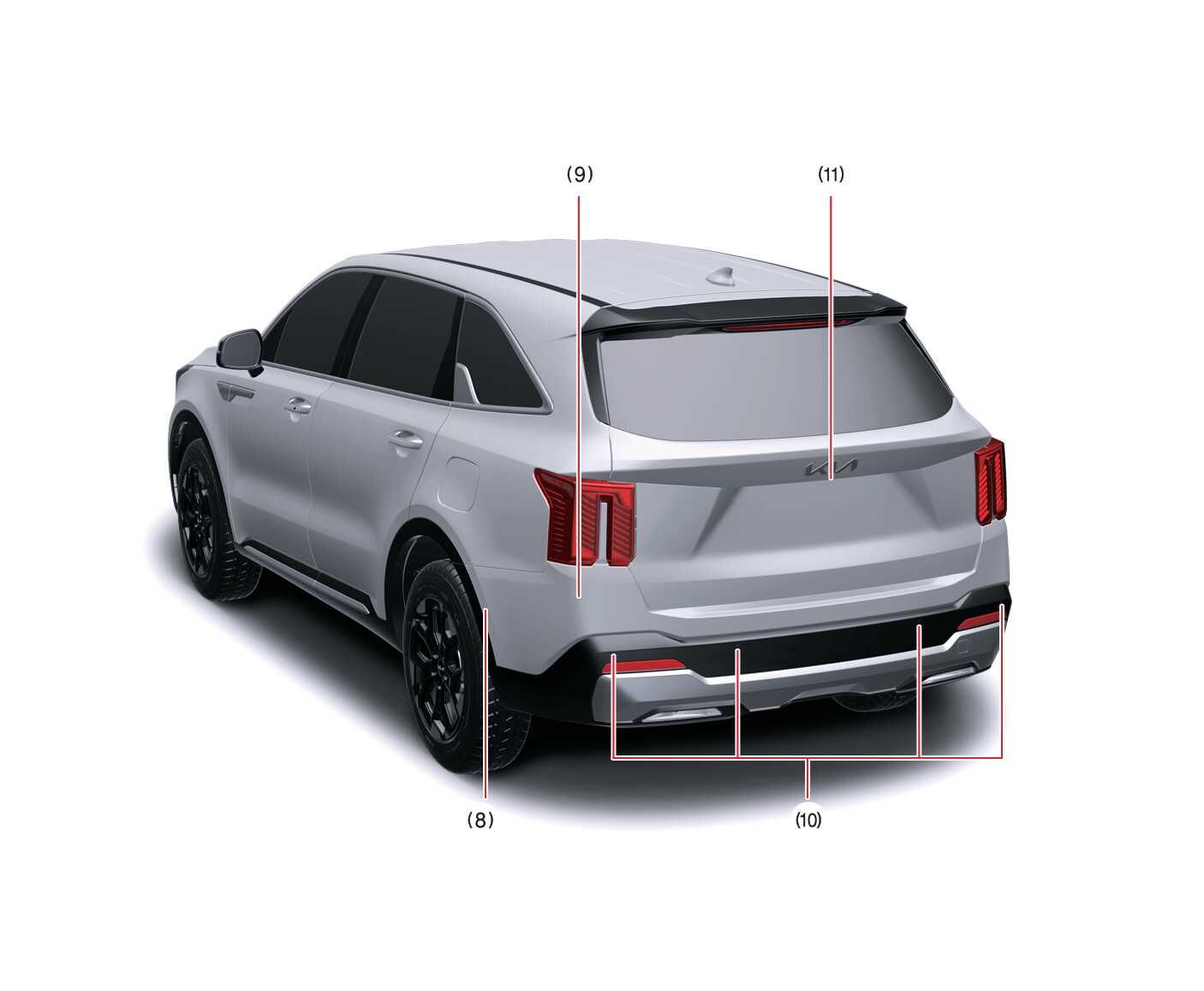

Figure 2. Rear view
OMQ4A015008

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

(1)

Front view camera

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Lane Keeping Assist (LKA)*

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)*

  • Smart Cruise Control (SCC)*

  • Lane Following Assist (LFA)*

  • Highway Driving Assist (HDA)*

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

(3)

Front side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(4)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Smart Cruise Control (SCC)*

  • Highway Driving Assist (HDA)*

(5)

Front ultrasonic sensors

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(6)

Wide-front view camera*

  • Surround View Monitor (SVM)*

(7)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Smart Cruise Control (SCC)*

  • Highway Driving Assist (HDA)*

(8)

Rear side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(9)

Rear corner radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Safe Exit Assist (SEA)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

(10)

Rear ultrasonic sensors

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(11)

Wide-rearview camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*
