Engine compartment

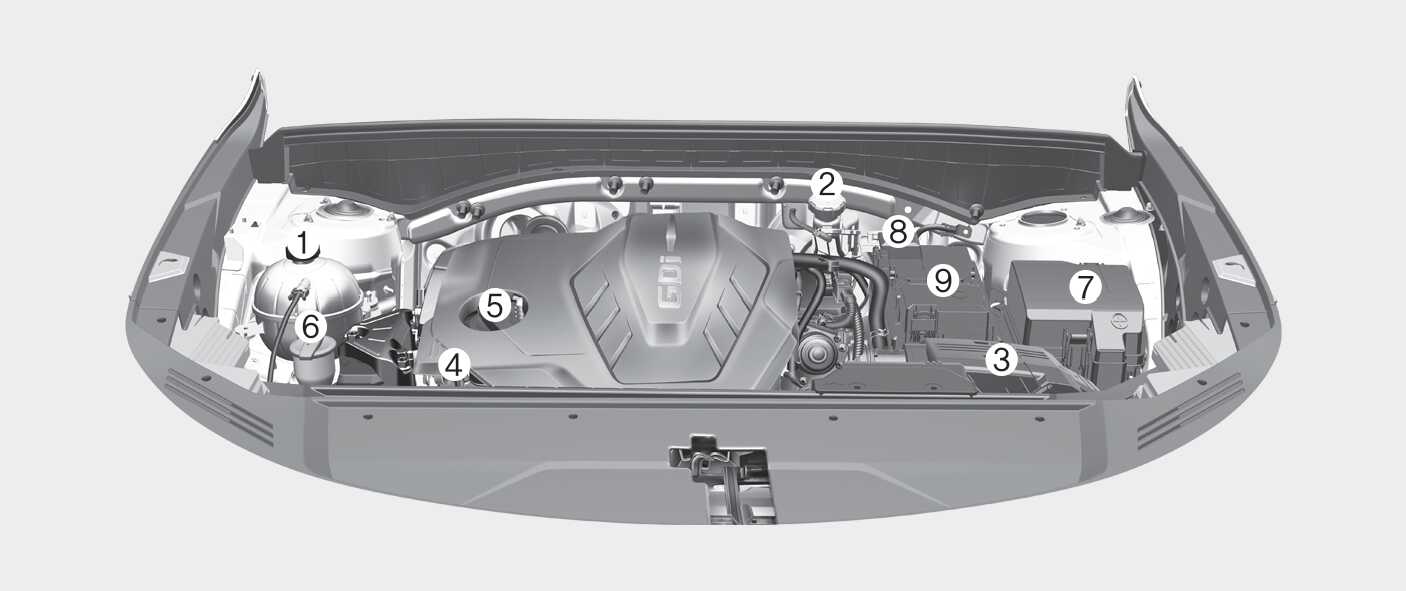

Figure 1. Smartstream G2.5 GDi (Gasoline)
OMQ4A070113

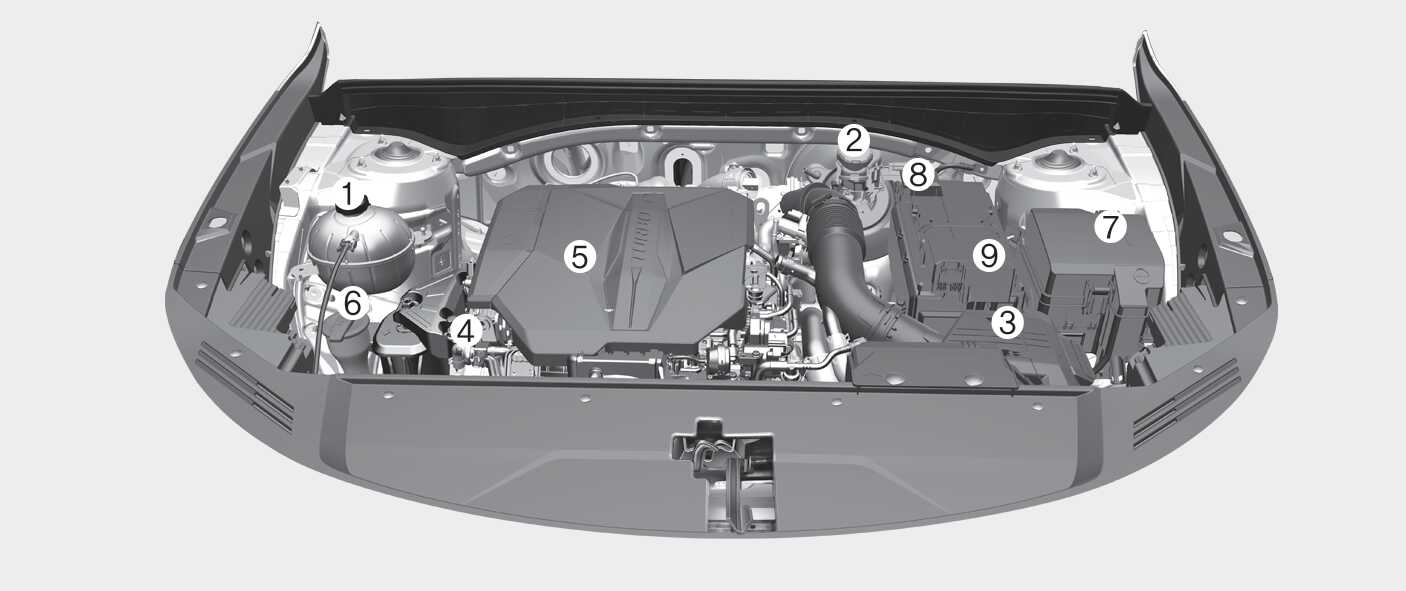

Figure 2. Smartstream G2.5 T-GDi (Gasoline)
OMQ4070001

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake fluid

  3. Air cleaner Air cleaner

  4. Engine oil dipstick Engine oil

  5. Engine oil filler cap Engine oil

  6. Windshield washer fluid reservoir Washer fluid

  7. Fuse box Engine compartment fuse panel

  8. Negative battery terminal Jump-starting, Battery

  9. Positive battery terminal Jump-starting, Battery
