Engine compartment

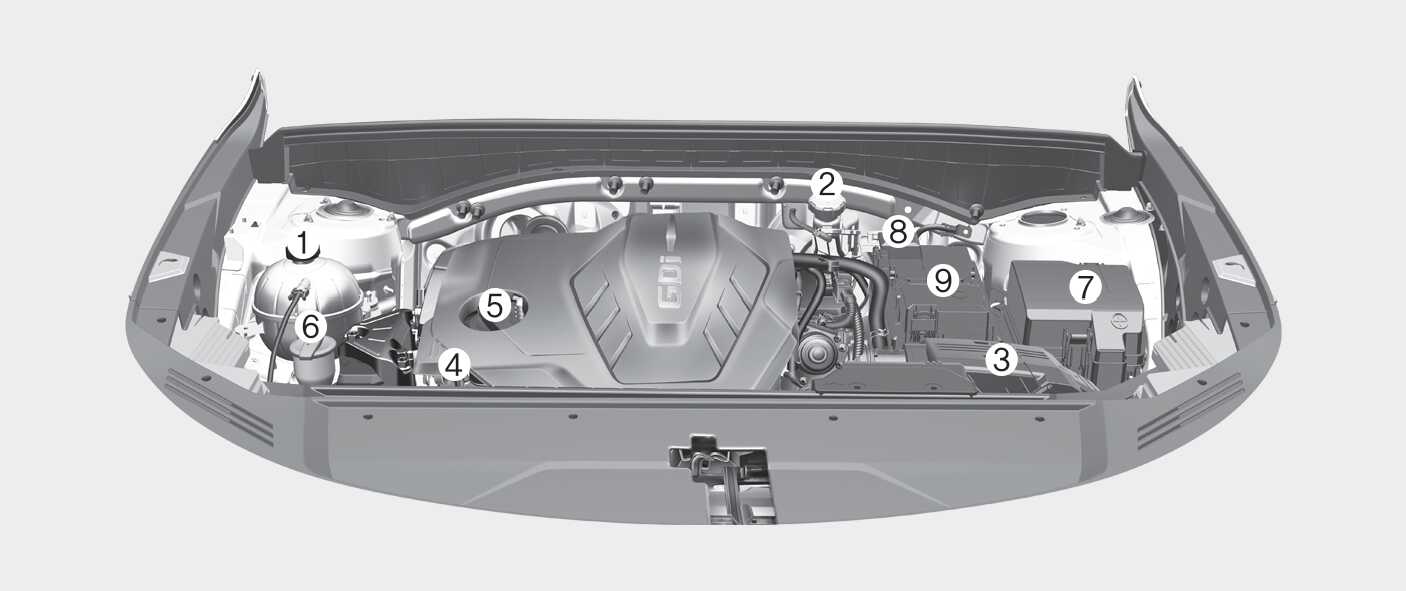

Figure 1. Smartstream G2.5 GDi (Gasoline)
OMQ4A0701130

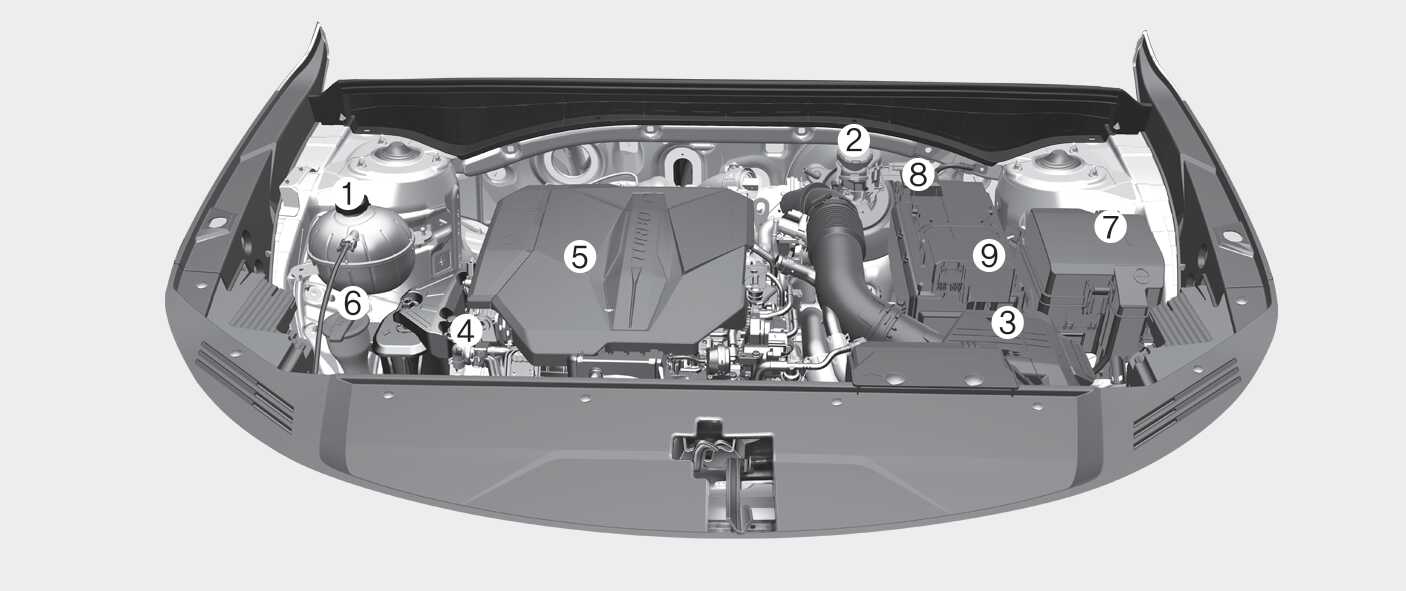

Figure 2. Smartstream G2.5 T-GDi (Gasoline)
OMQ40700010

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Brake fluid reservoir

  3. Air cleaner

  4. Engine oil dipstick

  5. Engine oil filler cap

  6. Windshield washer fluid reservoir

  7. Fuse box

  8. Negative battery terminal

  9. Positive battery terminal
