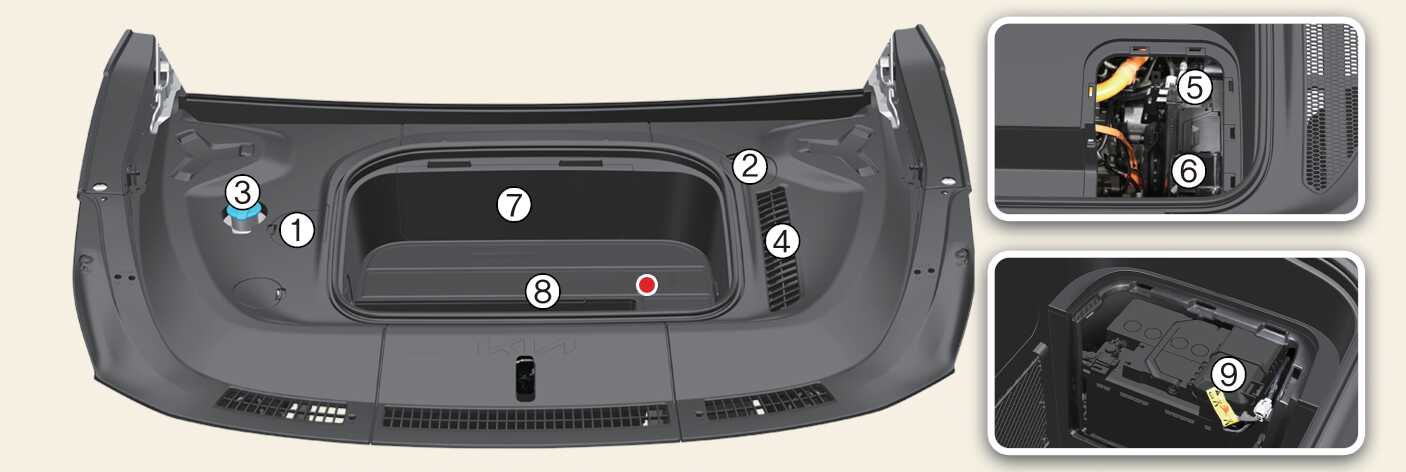

The actual motor compartment in the vehicle may differ from the illustration.

1. Coolant reservoir

2. Brake fluid reservoir

3. Windshield washer fluid reservoir

4. Fuse box

5. Negative battery terminal (-)

6. Positive battery terminal (+)

7. Front trunk

8. Climate control air filter cover

9. Service interlock connector
