Forward/Side/Reverse Parking Distance Warning (PDW): (if equipped)

Forward/Side/Reverse Parking Distance Warning uses the front, side and rear ultrasonic sensors to detect and warns you if a person, animal, or object is within a certain distance when your vehicle is stopped or driving at low speed.

Detecting sensor

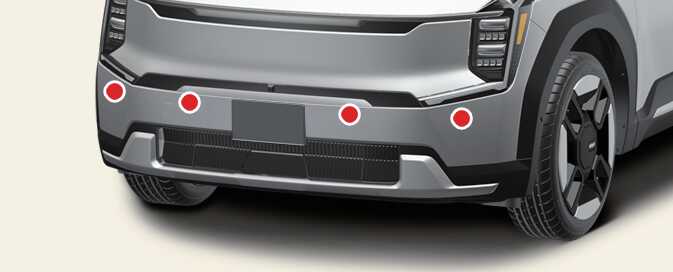

Figure 1. Front ultrasonic sensors
OMV053093N0

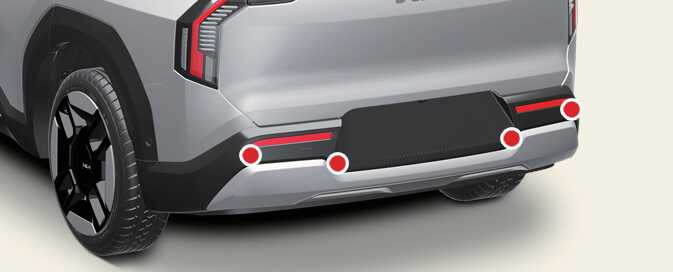

Figure 2. Rear ultrasonic sensors
OMV0530940

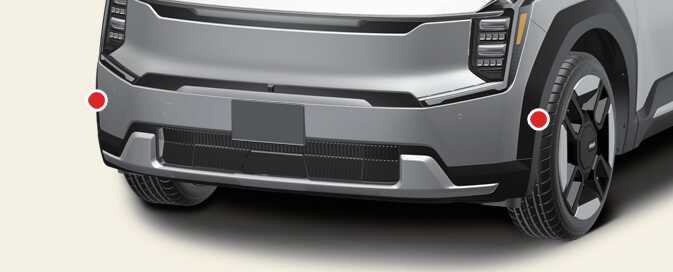

Figure 3. Front side ultrasonic sensors
OMV053107N

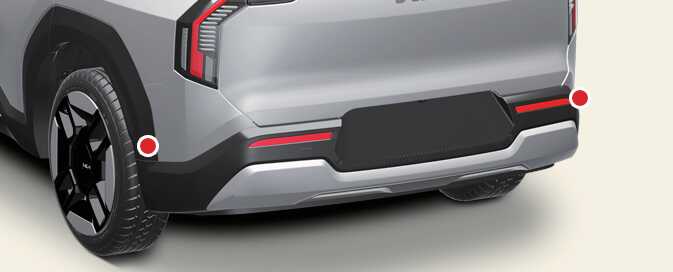

Figure 4. Rear side ultrasonic sensors
OMV053108
