Operating conditions

If Parking Collision-Avoidance Assist detects a risk of collision around the vehicle with a pedestrian or an object, Parking Collision-Avoidance Assist will warn the driver with an audible warning, steering wheel vibration, and warning message on the instrument cluster. If the infotainment screen is on, a warning will appear on the screen.

If a collision is imminent, Parking Collision-Avoidance Assist will assist you with braking.

Forward/Side Safety

After selecting Rear Safety from the Parking Safety Setting Menu of the Infotainment System, the Parking Collision-Avoidance Assist system is activated when the following conditions are met:

  • Forward/Side Safety has been selected in the Parking Safety Settings Menu of the Infotainment System

  • The tailgate and doors are closed

  • Electronic parking brake (EPB) has been turned off

  • Shifting into R (Reverse) or D (Drive)

  • Driving at 4 km/h (2 mph) or less (for pedestrians and objects)

  • Parking Collision-Avoidance Assist components such as the Wide view camera and the ultrasonic sensors are in normal conditions

The braking control is released approximately 2 seconds after shifting to D (Forward) or approximately 5 minutes after shifting to R (Reverse). Immediately press the brake pedal and check the surroundings. The braking control is also released in the following situations:

  • Shifting to P (Parking) or R (Reverse)

  • Applying sufficient force to the brake pedal

Rear Safety

After selecting Rear Safety from the Parking Safety Setting Menu of the Infotainment System, the Parking Collision-Avoidance Assist system is activated when the following conditions are met:

  • The tailgate and doors are closed

  • Electronic parking brake (EPB) has been turned off

  • Shifting into R (Reverse)

  • Driving at 10 km/h (6 mph) or less (for pedestrians)

  • Driving at 4 km/h (2 mph) or less (for objects)

  • Parking Collision-Avoidance Assist components such as the wide-rear view camera and the rear ultrasonic sensors are in normal conditions

The braking control is released approximately 5 minutes later. Before it is released, press the brake pedal and check the surroundings. The braking control is also released in the following situations:

  • Shifting to P (Parking) or D (Forward)

  • Applying sufficient force to the brake pedal

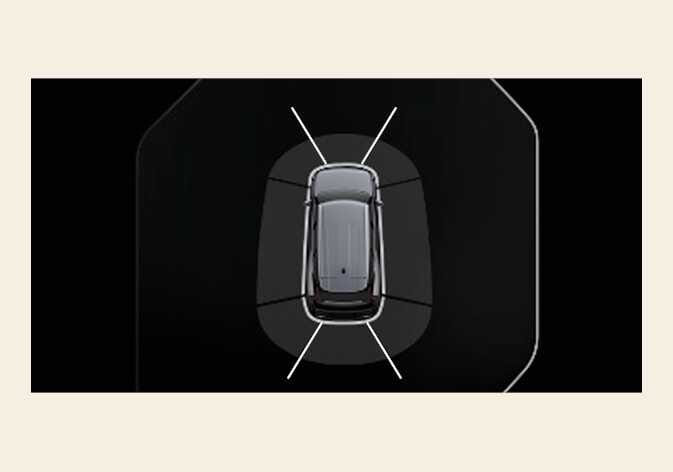

OMV074188L

When Parking Collision-Avoidance Assist activates, a line appears behind the vehicle image in the instrument cluster.

  • Forward/Side Safety: In front and side of the vehicle image

  • Rear safety: Behind the vehicle image
NOTE

  • Parking Collision-Avoidance Assist operates only once after shifting gear. It will reactivate if you shift from another gear again.

  • When Parking Collision-Avoidance Assist operates while reversing, the braking control will be released approximately 5 minutes after braking control, and the Electronic Parking Brake (EPB) will be applied simultaneously.
