Climate control air filter

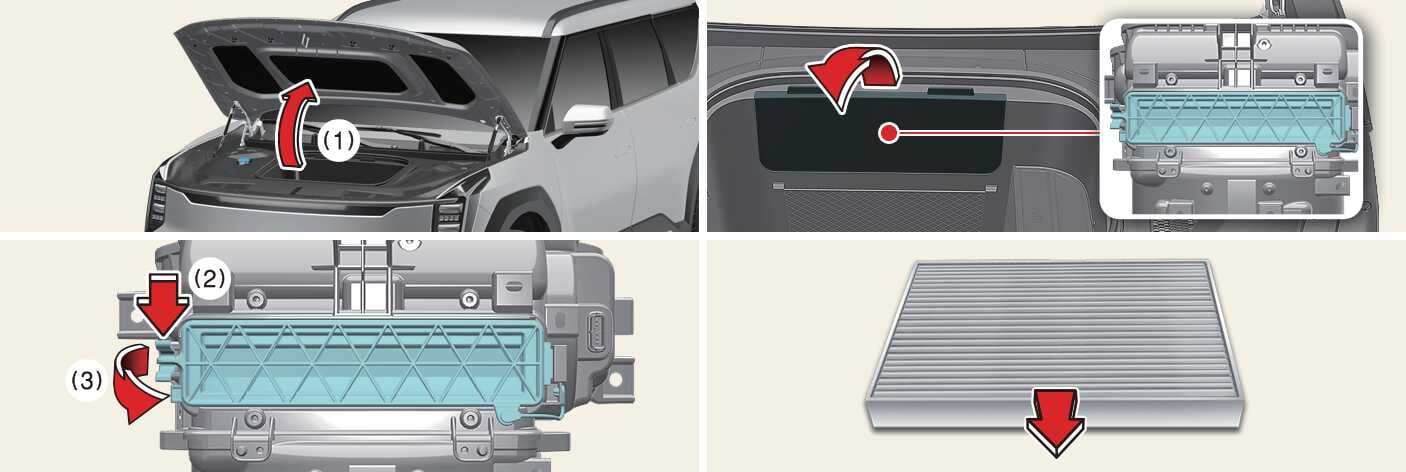

OMV094024L_5

  1. hood

  2. climate control air filter cover

  3. left side of the cover

Operation

  1. Open the hood (1).

  2. Remove the climate control air filter cover by pulling the upper part of the cover.

  3. Remove the climate control air filter cover (2) by pulling out left side of the cover (3).

  4. Replace the climate control air filter.

NOTE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
