2nd row seat folding

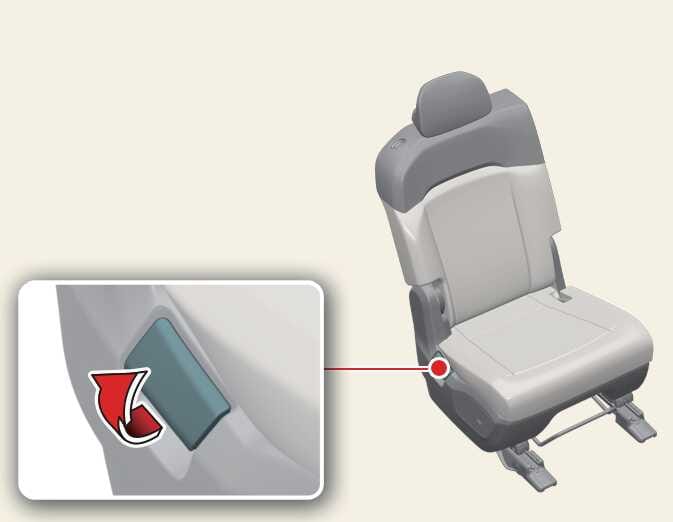

OMV024018

Simple operation

  1. Lower the rear seat headrest.

  2. Store seat belt in holder and buckle in to storage area.

  3. Pull the 2nd row seat lever and fold the seat.

Operation

  1. Keep the front seatbacks upright to avoid interference when the seats are folded.

  2. Press the rear seat headrest button to lower the rear seat headrest to their lowest position.

  3. Insert the seat belt into the storage holder and insert the buckle into the storage area inside the seat to prevent interference between the 3-point seat belt on either side and the loaded cargo when folded.

    For 7 seats, tidy up the center seat belts of the 2nd row seats so that they are not twisted.

  4. Pull the 2nd row seat angle adjustment lever to fully fold the seatback forward.

  5. After folding the seatback, release the adjustment lever to secure it. Make sure the seatback is securely fastened.

  6. When returning to the original position, raise the seatback while pulling the 2nd row seatback angle adjustment lever. After adjusting the seatback to the desired angle, release the lever to lock it in place.
