Engine compartment

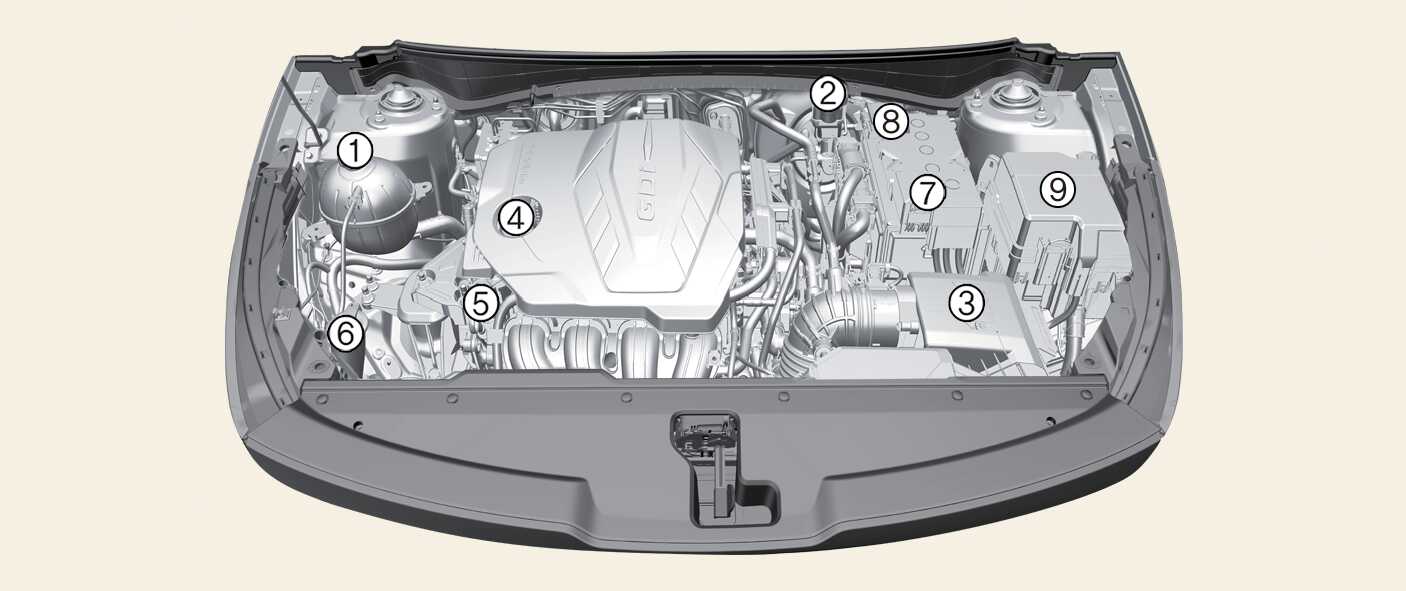

Figure 1. Smartstream G2.5 GDi
ONQ5061001L

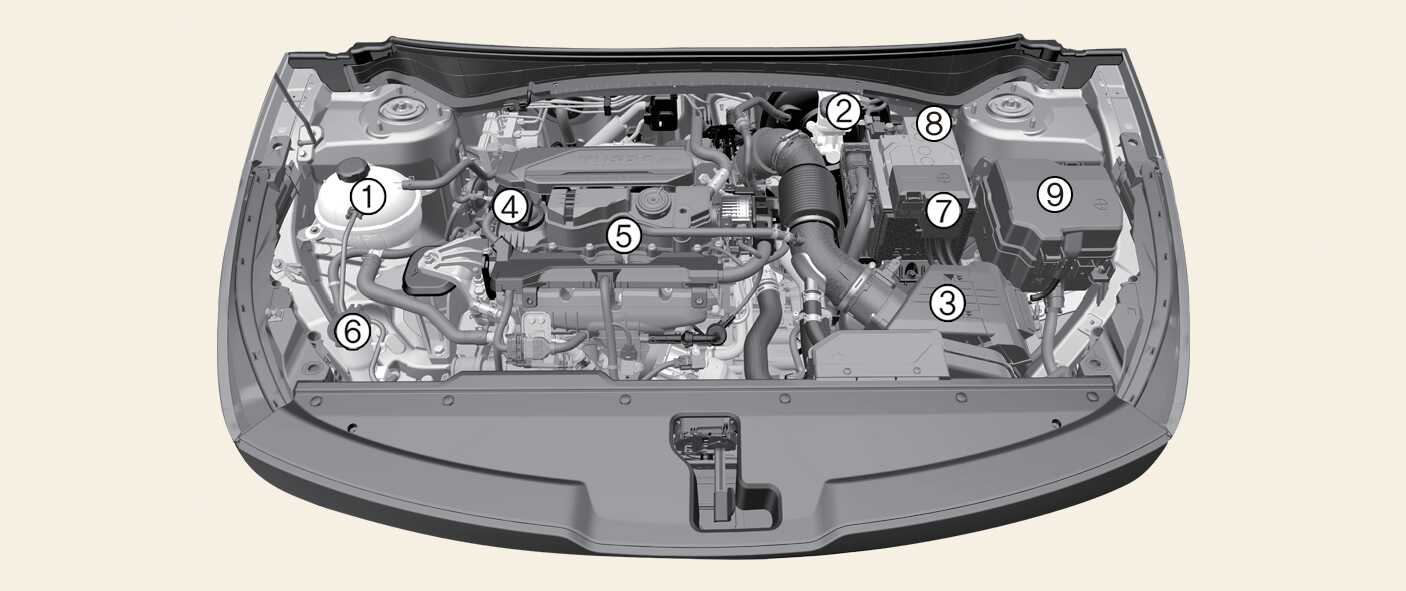

Figure 2. Smartstream G1.6 T-GDi
ONQ5061087L

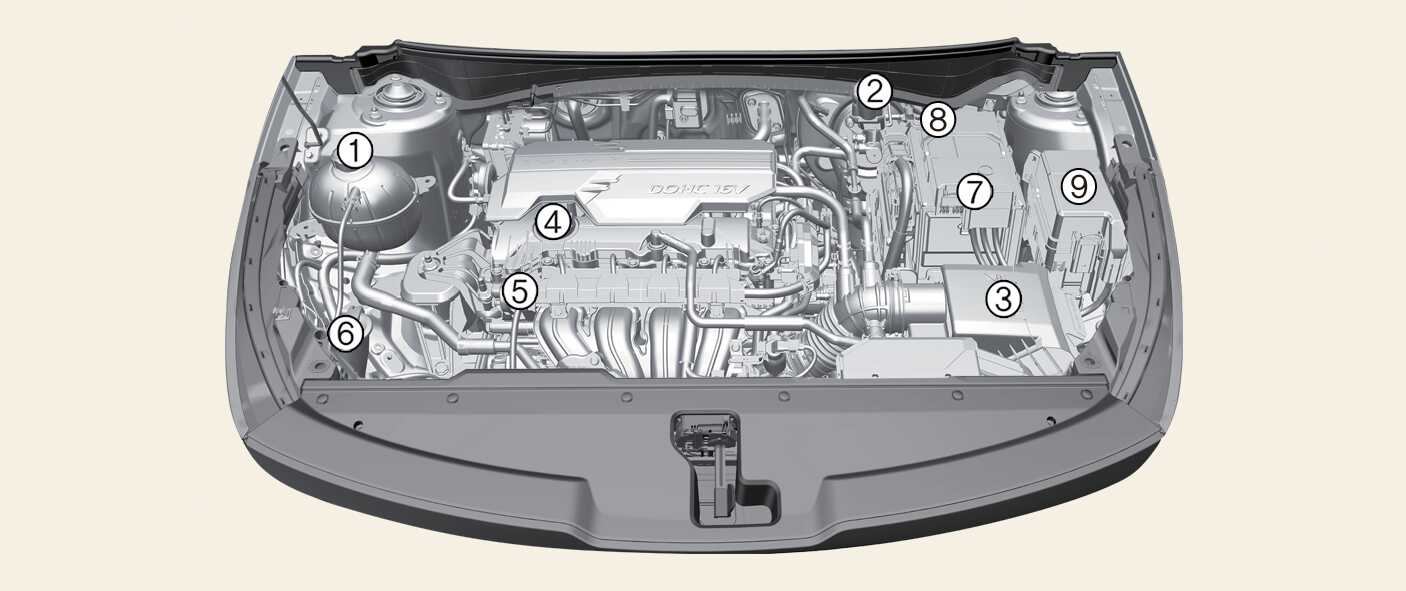

Figure 3. Smartstream G2.0
ONQ5061084L

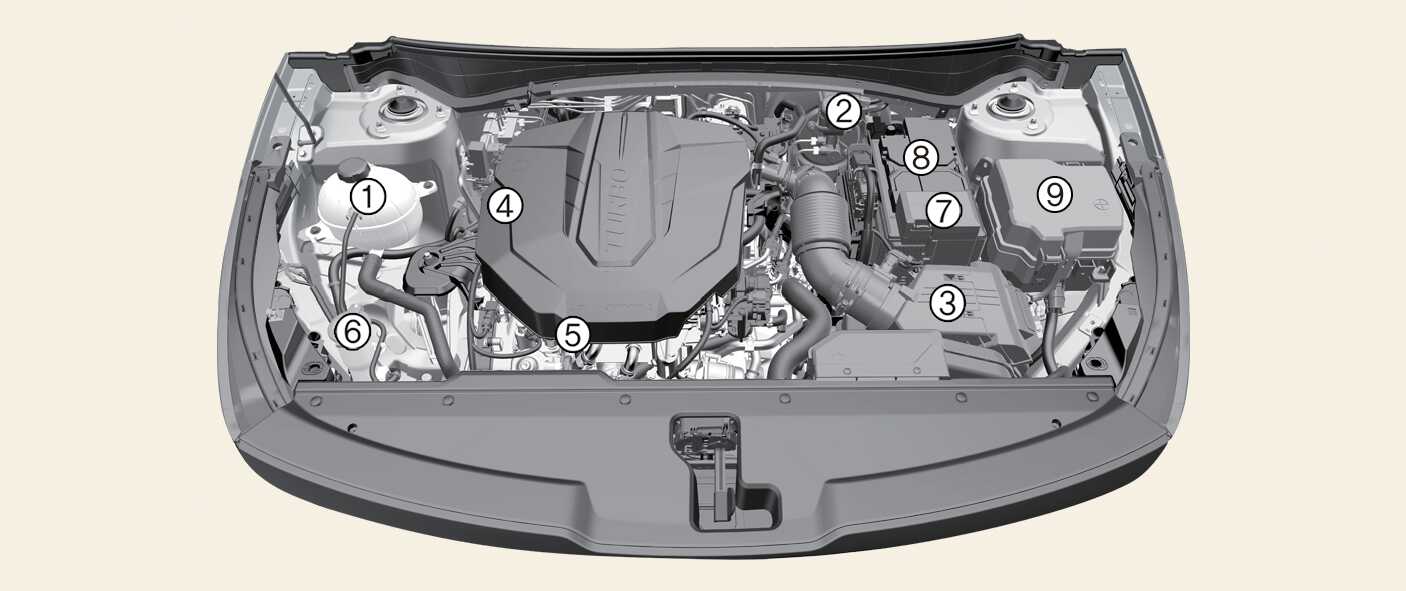

Figure 4. Smartstream D2.0
ONQ5061002L

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake/clutch fluid

  3. Air cleaner Air cleaner filter

  4. Engine oil filler cap Engine oil

  5. Engine oil dipstick Engine oil

  6. Windshield washer fluid reservoir Washer fluid

  7. Positive battery terminal (+) Jump-starting, Battery

  8. Negative battery terminal (-) Jump-starting, Battery

  9. Fuse box Fuses
