Engine compartment

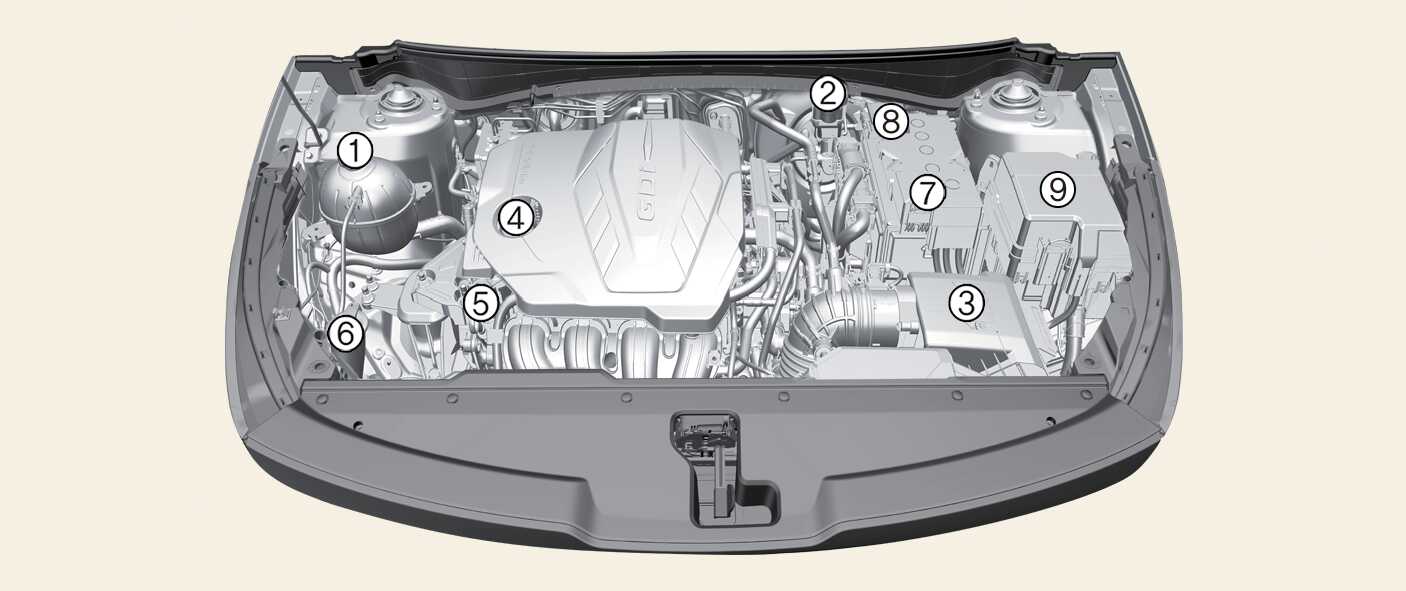

Figure 1. Smartstream G2.5 GDi
ONQ5061001L0

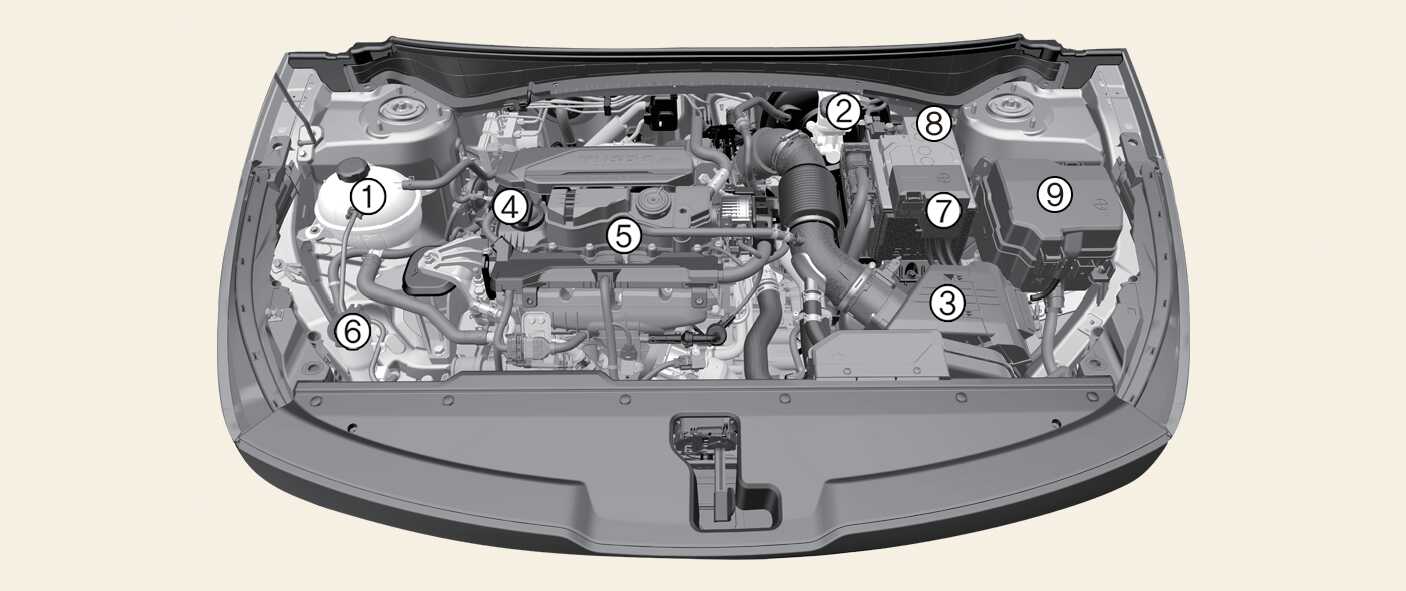

Figure 2. Smartstream G1.6 T-GDi
ONQ5061087L0

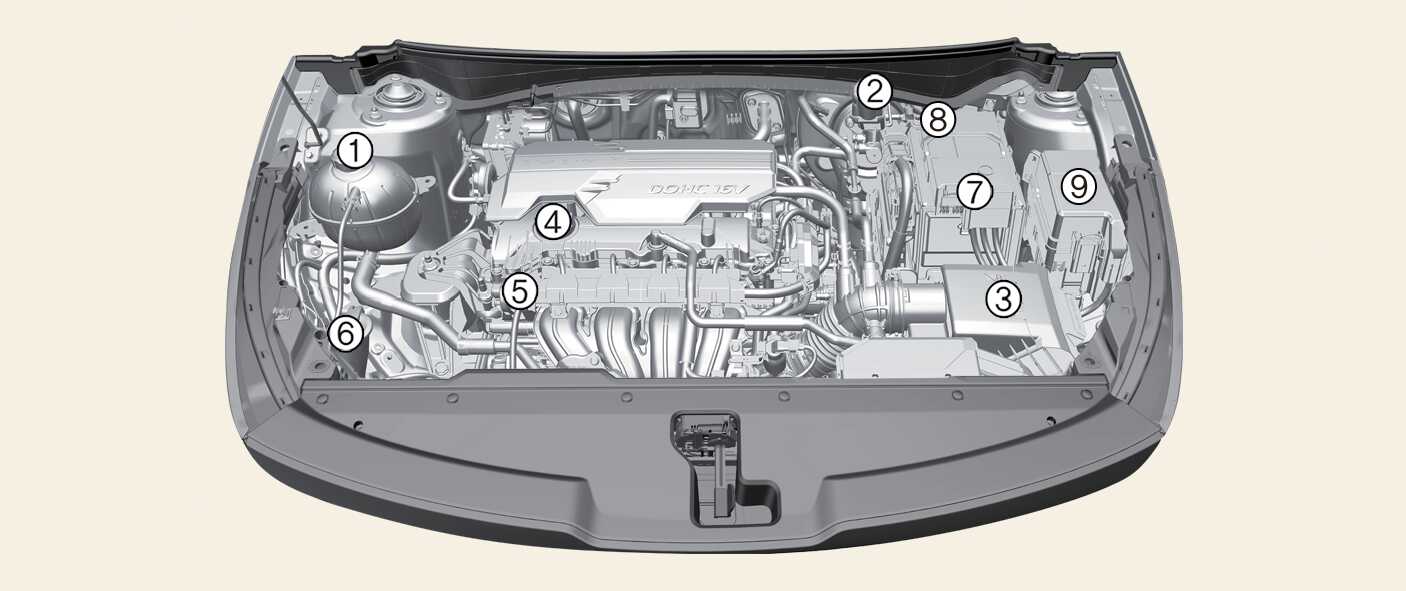

Figure 3. Smartstream G2.0
ONQ5061084L0

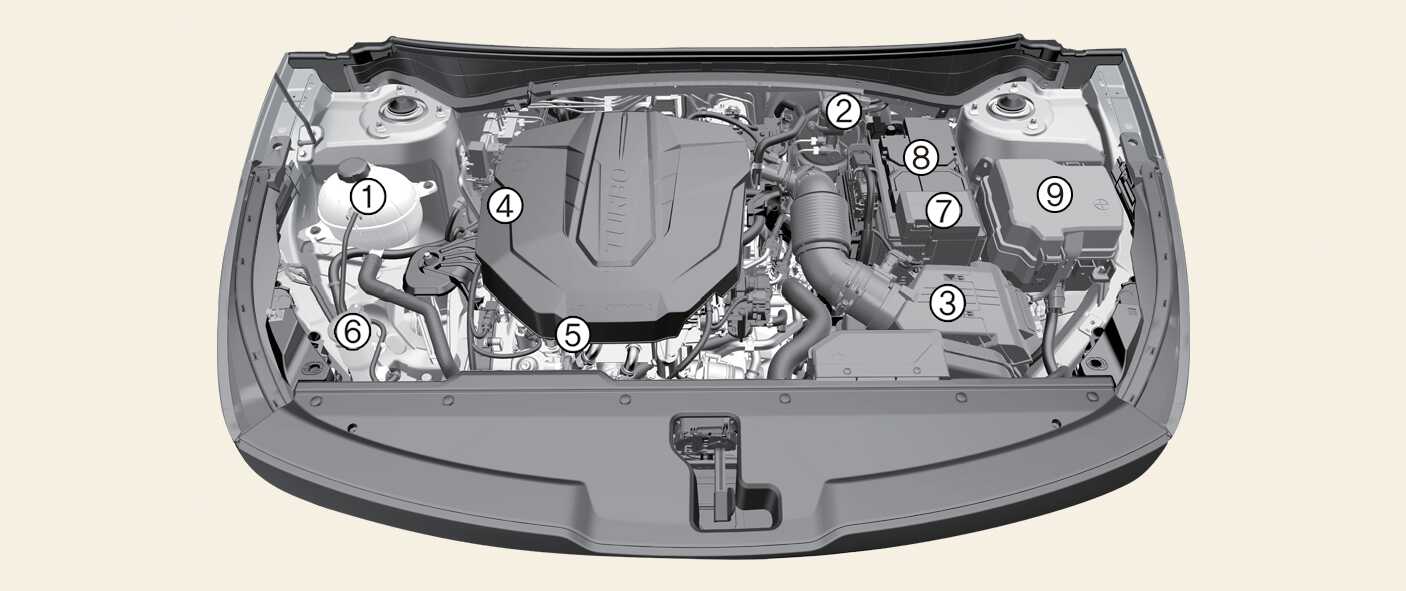

Figure 4. Smartstream D2.0
ONQ5061002L0

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

  1. Engine coolant reservoir

  2. Brake fluid reservoir

  3. Air cleaner

  4. Engine oil filler cap

  5. Engine oil dipstick

  6. Windshield washer fluid reservoir

  7. Positive battery terminal (+)

  8. Negative battery terminal (-)

  9. Fuse box
